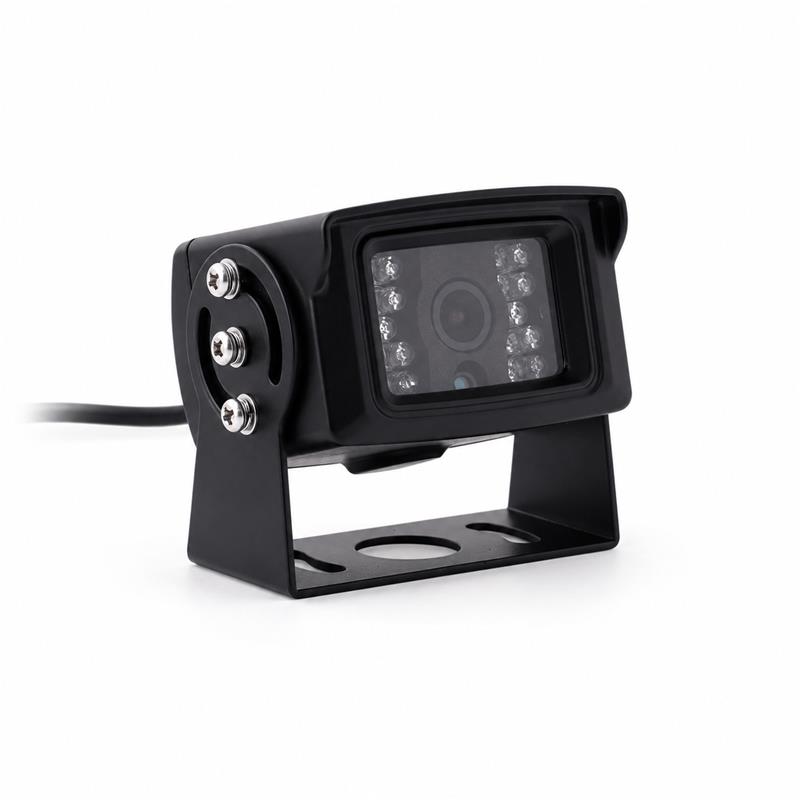

Goobuy UC-532 is an IP69K H.264 USB camera node for OEMs and system integrators who need a rugged video input for wet, dark, washed-down, coolant-splash or harsh industrial environments
Goobuy UC-532 is a rugged UVC video input for OEM platforms that already have a host computer, edge AI box, industrial PC or embedded controller. Goobuy UC-532 combines IP69K sealing, metal housing, F1.0 wide-angle optics, built-in LED illumination, camera-side H.264 compression and USB/UVC integration for washdown machines, CNC coolant enclosures, parts washers, industrial cleaning equipment, utility cabinets, wastewater systems and harsh wet machine environments. It is designed for monitoring, event recording and AI-assisted observation, not for raw-frame metrology, global-shutter synchronization or complete AI-camera replacement.
Rugged USB video node for OEM integrators with their own host, software, and vision algorithm.
Goobuy UC-532 is not a generic waterproof USB camera. It is designed for enterprise OEM teams, industrial AI platform builders, and system integrators that already have their own host computer, software workflow, or vision algorithm — but still need a durable camera input that can survive wet, dark, washed-down, or harsh industrial environments.
In many real projects, the algorithm is not the bottleneck. The host platform is already selected. The software workflow is already defined. The problem is that ordinary USB cameras work in the lab but fail once they are installed inside washdown machines, CNC coolant enclosures, industrial cleaning systems, utility cabinets, or low-light wet equipment areas.
UC-532 is designed to close that gap.
It combines IP69K sealing, metal housing, F1.0 wide-angle optics, built-in LED illumination, camera-side H.264 compression, and USB/UVC integration into one rugged camera node for industrial OEM platforms.
| Customer Problem | Why UC-532 May Fit |
|---|---|
| Standard USB cameras work in the lab but fail in wet industrial machines | IP69K sealed structure, metal housing and industrial camera-node design |
| The host platform is already selected | USB/UVC integration can connect to existing Linux, Windows, Android, Jetson, industrial PC or embedded hosts |
| Raw video increases bandwidth, storage or host encoding load | H.264 camera-side compression can reduce host-side video burden |
| Machine interiors are dark, wet, narrow or reflective | F1.0 wide-angle lens and built-in LEDs help improve usable video |
| The project needs event recording or AI-assisted observation | H.264 video is practical for long-duration monitoring and visual confirmation |
| The application involves washdown, parts washer, CNC coolant or utility equipment | UC-532 is designed for wet, dark and washed-down industrial environments |
| The algorithm needs raw uncompressed frames or metrology accuracy | UC-532 may not be the right architecture |
| The project has no host, no software workflow and no deployment plan | UC-532 is not the right starting point |
UC-532 is intended for customers who do not need us to provide a complete AI system. They already have their own industrial PC, edge AI box, Jetson-based host, Linux controller, Windows system, Android device, embedded computer, monitoring software, event recording workflow, or AI algorithm.
What they need is a rugged camera node that can connect into their existing platform without forcing them to redesign the whole video architecture.
UC-532 is suitable when your team is asking:
“We already have the software, host, and algorithm. Which rugged H.264 USB camera can survive the real industrial site?”
This is the core difference between UC-532 and a normal waterproof camera. UC-532 is not positioned for low-cost BOM comparison. It is designed for platform-level OEM evaluation where the camera becomes a repeatable rugged video input option for industrial systems.
Many projects start with a standard USB camera during development. It works on a desk, inside a lab, or during a short proof-of-concept demo. But once the system moves into a real machine, the weak points appear quickly.
Standard USB cameras may fail because of:
UC-532 is designed for projects where camera survivability, integration simplicity, and host-side video efficiency matter more than marketing resolution alone.
It is a rugged H.264 USB camera node for enterprise platforms, not a consumer webcam, hobby camera, or low-cost surveillance accessory.
Target Enterprise Applications
UC-532 is suitable for edge AI box companies that already have their own computing platform and software, but need a rugged H.264 USB camera for real industrial environments.
It can be used as a video input for equipment monitoring, event recording, AI-assisted observation, remote diagnostics, or visual confirmation in wet, dusty, or low-light sites.
Many system integrators already know what they want to detect, monitor, record, or classify. Their problem is not the algorithm. Their problem is finding a camera that can survive the installation site.
UC-532 is designed for integrators who need a repeatable rugged camera configuration for customer projects involving wet machines, enclosed equipment, industrial cleaning systems, utility sites, or harsh production areas.
Washdown equipment creates a difficult environment for cameras because of water spray, cleaning routines, foam, humidity, and low-light machine interiors.
UC-532 is a strong candidate for OEMs building machines that require visual access during or after washdown operation, especially when the video needs to connect directly to an industrial host instead of a separate IP camera system.
Typical Applications of Goobuy UC-532 IP69K H.264 USB Camera （used for for industrial AI box video input, system integrators, washdown machines, industrial cleaning equipment, CNC coolant enclosures, food and beverage equipment, and utility wastewater monitoring）
Goobuy UC-532 is not positioned as a generic waterproof USB camera. It is a rugged IP69K H.264 USB camera node for OEMs and system integrators that already have their own host computer, software platform, or AI vision algorithm. Typical applications include edge AI box video input, wet machine monitoring, washdown equipment, parts washers, CNC coolant enclosures, food and beverage equipment, utility systems, and wastewater infrastructure where sealed low-light USB video is required.
Industrial wash cabinets, parts washers, cleaning chambers, and wet inspection systems often need internal visual monitoring. Ordinary cameras may not tolerate water, cleaning fluid, moisture, vibration, or dark enclosed spaces.
UC-532 provides a rugged USB video option for equipment builders who want to integrate camera viewing into their own control interface or host system.
CNC machine interiors are challenging because of coolant spray, oil mist, metal particles, enclosure reflection, vibration, and limited light.
UC-532 is suitable for machine tool monitoring, process observation, remote viewing, event recording, or AI-assisted machine interior inspection where a normal USB camera is not durable enough.
Food, beverage, and pharmaceutical equipment often require sealed components in washdown or hygienic processing areas. UC-532 can support OEM equipment builders who need a rugged camera input for monitoring, visual confirmation, or AI-assisted observation.
For regulated applications, final material, mounting, cable, connector, and certification requirements should be evaluated according to the customer’s equipment standard.
Utility cabinets, wastewater equipment, pump stations, wet industrial enclosures, and remote infrastructure systems often involve humidity, dirt, vibration, darkness, and difficult maintenance conditions.
UC-532 can be used as a rugged H.264 USB camera node when the customer already has an industrial host or monitoring platform and needs reliable visual input from harsh or wet environments.
Technical Positioning Table
| Requirement | UC-532 Design Direction |
|---|---|
| Harsh wet environment | IP69K sealed structure and metal housing |
| Low-light equipment area | F1.0 wide-angle lens and built-in LEDs |
| Video compression | H.264 camera-side video compression |
| Host integration | USB/UVC plug-and-play video input |
| Target host platforms | Linux, Windows, Android, Jetson, industrial PC, edge AI box |
| Typical video use | Monitoring, event recording, AI-assisted observation, machine interior viewing |
| Not primary use | Metrology-grade inspection, raw image capture, global shutter synchronization |
| OEM discussion | Cable length, connector, lens angle, LED type, mounting, housing, labeling |
| Validation discussion | IP69K test conditions, sample video, H.264 stream details, host compatibility |
| Project type | Repeatable OEM platform or integration project |
For professional OEM and system integration projects, customers may request engineering evaluation materials before selecting UC-532 for platform testing.
Available or project-dependent materials may include:
If your project requires formal validation, please tell us your target environment, cleaning method, host platform, operating system, video workflow, cable routing, and expected annual volume.
UC-532 is designed for wet, dusty, washed-down, or vibration-prone environments where a normal USB camera body is not reliable enough.
The IP69K sealed structure and metal housing make it more suitable for machine interiors, cleaning equipment, coolant areas, wet industrial cabinets, utility systems, and OEM equipment that must keep working after real field deployment.
For professional buyers, the question is not simply:
“Is it waterproof?”
The real question is:
“Can this camera keep working after water spray, washdown, vibration, dirt, and long-term industrial use?”
UC-532 is designed to reduce the risk of camera failure after the system leaves the lab and enters the customer’s real operating environment.
IP69K performance depends on the complete assembly, including housing, lens window, cable exit, connector, mounting method, and test conditions. For projects requiring formal IP69K validation, customers should request available test information and review whether the cable and connector configuration matches their installation environment.
Many industrial camera problems are not caused by resolution. They are caused by poor light.
Machine interiors, wash cabinets, CNC enclosures, wet compartments, utility boxes, cleaning chambers, and wastewater equipment are often dark, narrow, reflective, or partially blocked. Adding external lighting may increase wiring complexity, mechanical design cost, and maintenance risk.
UC-532 uses an F1.0 wide-angle lens and built-in LED illumination to help capture more usable video in low-light or enclosed equipment areas.
This is useful for:
F1.0 optics and LEDs improve low-light usability, but actual image quality depends on working distance, surface reflection, humidity, lens angle, LED type, and installation position. For reflective metal, water mist, or coolant environments, we recommend evaluating real sample video before final platform selection.
H.264 is one of the most important differences between UC-532 and many regular USB cameras.
In multi-camera systems or long-duration monitoring projects, raw video can increase USB bandwidth, storage pressure, and host-side encoding workload. UC-532 supports H.264 compressed video output, helping reduce the need for the host computer to encode raw video streams.
This is especially valuable for:
The host still handles decoding, display, storage, AI inference, or event management according to the customer’s software workflow. But camera-side H.264 compression can make the video pipeline more practical than raw video workflows in many industrial monitoring systems.
H.264 is ideal for rugged monitoring, AI-assisted observation, event recording, and host-side load reduction. If your project requires uncompressed raw frames, low-latency global shutter capture, precision measurement, or metrology-grade machine vision, another camera architecture may be more suitable.
Choose UC-532 when the project needs rugged monitoring, long-duration video, event recording, AI-assisted observation or reduced host-side encoding load.
Do not choose UC-532 as the first option if your algorithm requires raw uncompressed frames, extremely low latency, global shutter synchronization, strobe-based capture, precision measurement or metrology-grade machine vision.
For professional OEM projects, the correct question is not only “Does the camera output H.264?” The better question is: “Will H.264 compression, latency, resolution, lighting and host decoding match our real software workflow?”
UC-532 is designed for teams that already use USB-capable host platforms.
Instead of adding IP camera firmware management, Ethernet video configuration, PoE wiring, NVR architecture, or closed surveillance software, UC-532 can work as a direct USB/UVC camera node for supported host systems.
It is suitable for integration with:
For system integrators, this keeps the camera closer to a platform component than a separate surveillance device.
USB cable length, connector sealing, EMI environment, host USB bandwidth, and multi-camera topology should be evaluated during project design. For longer cable routing or waterproof connection requirements, please discuss cable and connector options before final deployment.
UC-531 and UC-532 should serve different customer needs.
| Product | Best Fit | Main Keywords | Customer Type |
|---|---|---|---|
| UC-531 IP67 USB Camera | Outdoor rain, dust, low-light equipment, agricultural systems, outdoor robots, utility devices, marine-adjacent equipment, municipal machines | IP67 waterproof USB camera, outdoor rugged USB camera, IR night vision USB camera | Outdoor OEM product teams |
| UC-532 IP69K H.264 USB Camera | Wet machine interiors, washdown equipment, CNC coolant areas, industrial cleaning systems, edge AI boxes, harsh OEM platforms | IP69K H.264 USB camera, rugged USB camera node, washdown USB camera, USB camera for edge AI box | Industrial AI integrators and harsh-environment OEM platforms |
If your project mainly involves rain, dust, general outdoor equipment, agricultural machinery, municipal systems, or outdoor robots, UC-531 may be the more practical choice.
If your project involves washdown, wet machine interiors, coolant spray, industrial cleaning equipment, H.264 video compression, or USB video input for an existing AI host, UC-532 is the stronger candidate.
UC-532 is strongest when the camera must be installed inside or near wet, washed-down, dark or enclosed equipment, while the customer’s own host handles display, recording, AI inference or event management.
Typical project directions include:
The camera is a rugged USB video node, not a full surveillance platform. Final suitability depends on cleaning method, water pressure, fluid type, cable sealing, connector exposure, lens contamination, LED reflection, vibration and host compatibility.
Important Engineering Questions Before Selection
A rugged H.264 USB camera for harsh environments should not be selected only by resolution or price. For serious OEM projects, we recommend discussing:
This helps our team evaluate whether UC-532 is the right rugged camera node for your platform.
If your team already has the host, software, and algorithm, but still needs a rugged camera input for a wet, dark, washed-down, or harsh industrial environment, UC-532 may be a strong candidate.
Please send us:
Our team will help evaluate whether UC-532 is suitable as a rugged H.264 USB camera node for your OEM platform or integration project.
Professional Engineering FAQ
Yes. UC-532 is designed for OEM teams and system integrators that already have their own host computer, software workflow, monitoring platform or AI algorithm. It works as a rugged IP69K H.264 USB camera node for industrial PCs, Jetson-based systems, Linux controllers, Windows systems, Android devices and embedded USB host platforms that need video input from wet, dark, washed-down or harsh industrial environments.
H.264 camera-side compression can reduce USB bandwidth pressure, storage load and host-side encoding workload. This is useful for multi-camera systems, long-duration monitoring, event recording, edge AI boxes and industrial monitoring platforms. The host still handles decoding, display, storage, AI inference or event management according to the customer’s software workflow.
It can, depending on the algorithm and image-quality requirement. UC-532 is best for rugged monitoring, event recording, AI-assisted observation and visual confirmation. If your project requires raw uncompressed frames, very low latency, global shutter synchronization, strobe lighting, precision measurement or metrology-grade inspection, another camera architecture may be more suitable.
UC-532 is positioned for IP69K-level harsh wet environments, but professional buyers should evaluate the complete configuration, including housing, lens window, cable exit, connector, mounting method and test conditions. If your project requires formal IP69K validation, please request available test information and confirm whether the cable and connector configuration matches your installation environment.
Yes. UC-532 is suitable for OEM equipment builders that need rugged USB video input inside washdown machines, industrial wash cabinets, parts washers, cleaning chambers and wet inspection systems. Final suitability depends on water pressure, water temperature, cleaning angle, cleaning fluid, cable routing, connector sealing, mounting design and whether the camera is directly exposed during cleaning.
UC-532 can be evaluated for CNC coolant enclosure viewing, machine interior monitoring, event recording or AI-assisted observation where a normal USB camera is not durable enough. Coolant direction, oil mist, chip impact, reflective metal surfaces, lens contamination, LED glare, vibration, lighting and cleaning access must be tested in the real machine.
Yes. Many harsh equipment areas are not only wet, but also dark, narrow, reflective or difficult to illuminate. The F1.0 wide-angle lens helps collect more light, while built-in LEDs reduce the need for separate lighting. However, LED glare can occur in reflective metal, water mist, coolant spray or close-range installations, so real sample testing is recommended.
Please send your application type, host platform, operating system, software workflow, required video format, resolution and frame rate, H.264 decoding workflow, installation location, wet / washdown / coolant / dust / vibration conditions, cleaning method, cable length, connector requirement, lens angle, LED requirement, mounting space, expected annual volume, target market and any OEM customization needs.
