pDOOH-Ready Camera Retrofit for AI Digital Signage Players

Compact USB Camera Input for Existing Digital Signage Players, Retail Media Screens and Edge AI Signage Terminals

A pDOOH-ready camera retrofit is a compact USB camera module added to an existing AI digital signage player, retail media screen, kiosk or edge signage terminal to provide optional visual input without redesigning the core media player.

In 2026, pDOOH and in-store retail media are growing, but many deployments still need better proof of presence, interaction evidence, contextual triggers, remote diagnostics and privacy-aware measurement. A small UVC camera module such as Goobuy UC-501 can help signage OEMs and integrators add camera-side input for edge AI workflows while keeping the player hardware compact and easy to validate.

This article explains where a compact camera retrofit makes sense for AI signage players, where it does not, and how product teams should evaluate camera integration before pilot deployment.

1. Why pDOOH Still Matters in 2026

pDOOH is not only a display trend. It is part of a larger shift in out-of-home advertising, retail media and physical-location measurement.

Digital signage networks are no longer expected to only play scheduled content. More advertisers and retailers want screens to become measurable, context-aware and easier to connect with programmatic buying, store operations and campaign reporting.

However, many screen networks face a practical problem.

They already have:

• a display;
• a media player;
• a CMS;
• a retail or venue location;
• network connectivity;
• ad playback logic;
• sometimes programmatic integration.

But they may not have a reliable way to capture local visual context, interaction evidence or simple on-device perception signals.

This is where a compact camera retrofit can become useful.

The goal is not to turn every screen into a surveillance device. The goal is to give the signage player an optional visual input layer that the customer can use for privacy-aware, application-specific edge AI workflows.

2. The 2026 Reality: AI Signage Needs More Than a Smarter Player

Many AI signage projects slowed down because the market discovered that an AI media player alone does not create a successful pDOOH business.

A player can display content.
An AI player can schedule or optimize content.
A programmatic connection can help sell inventory.
But the screen network still needs evidence, operations, reporting, privacy controls and advertiser trust.

Common deployment questions include:

• Did the screen actually play the campaign?
• Was the display facing the correct direction?
• Was the screen blocked, covered or offline?
• Was there any real presence near the screen?
• Did people interact with the kiosk or terminal?
• Can the campaign be reported without collecting personal identity?
• Can the system trigger content based on safe, non-sensitive context?
• Can the device be upgraded without replacing the whole media player?

For many existing networks, replacing every player is too expensive. A compact camera retrofit can be more realistic.

3. What a Camera Retrofit Can Actually Add to a pDOOH Player

A camera retrofit should be understood as a hardware input option, not a complete analytics system.

A compact USB camera can help the customer’s AI player or edge software support workflows such as:

• screen-side visual status checking;
• kiosk interaction verification;
• QR or object capture;
• content proof and remote diagnostics;
• rough presence or motion sensing;
• privacy-aware people counting if processed locally and anonymized;
• display blockage or screen-facing direction checks;
• store-zone or venue-zone visual context;
• audience-aware content triggers where legal and appropriate;
• maintenance evidence for unattended terminals.

The camera does not define the final analytics policy. The customer’s software, privacy design, consent framework and local regulation decide what is allowed.

This boundary is important.

A compact camera module is suitable for adding visual input. It should not be marketed as a shortcut around privacy, compliance or measurement standards.

4. Why UC-501 Fits pDOOH Camera Retrofit Projects

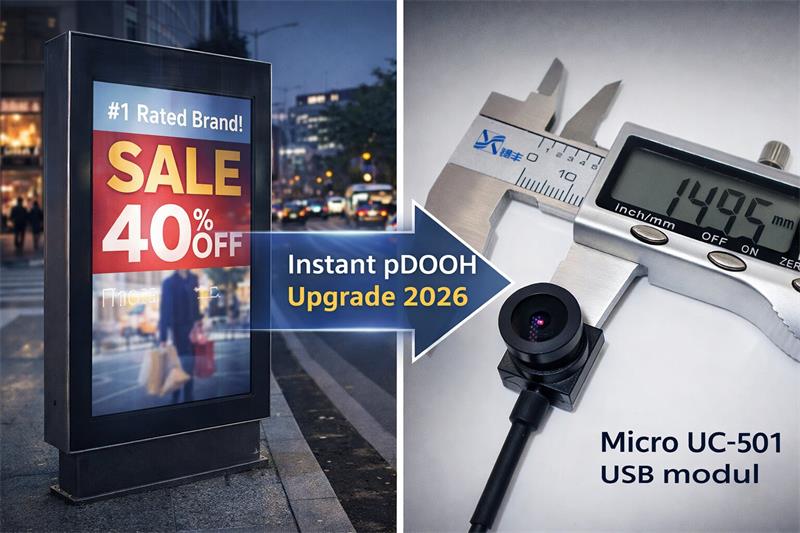

Goobuy UC-501 is a 15×15mm compact USB camera module designed for space-constrained embedded systems.

For pDOOH and AI signage applications, its strongest value is not only image quality. Its value is integration simplicity.

The Goobuy UC-501 15×15mm Micro USB Camera can be evaluated as a compact UVC visual input module for AI signage players, compact edge boxes, smart retail terminals, kiosks and embedded Android / Linux / Windows devices.

Key integration advantages include:

• 15×15mm compact form factor;
• 2MP / 1080P video input;
• USB2.0 / Type-C / Micro USB options;
• UVC plug-and-play support;
• no special camera SDK required for basic video input;
• M12 lens flexibility;
• optional wide-angle and low-distortion lens choices;
• cable length and connector discussion for OEM integration;
• compatibility testing with Linux, Windows, Android, Jetson, Raspberry Pi and industrial PC hosts.

For signage OEMs, this is useful because many AI player enclosures are already crowded. A standard USB camera or boxed webcam may be too large, visually intrusive or mechanically difficult to mount.

UC-501 is better positioned as a hidden or semi-hidden embedded camera module inside the signage device, kiosk frame, top bezel, retail terminal, smart shelf display or external camera accessory.

5. Application 1: Existing AI Digital Signage Player Retrofit

Many signage player vendors already have a hardware platform. They may not want to redesign the main board just to test visual input.

A compact USB camera retrofit allows them to evaluate camera-enabled functions without rebuilding the player from zero.

Typical retrofit goals include:

• adding optional camera input to an existing Android player;
• adding UVC camera support to a Linux AI player;
• testing audience-aware content triggers;
• checking screen blockage or display orientation;
• verifying whether the display is physically active in the field;
• adding visual diagnostics for remote maintenance;
• testing camera-based interaction before a full hardware redesign.

In this case, UC-501 acts as the camera-side input layer. The AI player still handles video processing, content logic, network reporting and privacy rules.

This approach is especially useful for sample-to-pilot projects where the integrator wants to test demand before committing to a new hardware version.

6. Application 2: Retail Media Screen Networks

Retail media screens are becoming more important because physical stores still have high purchase intent, but in-store media measurement remains difficult.

A screen may show an ad near a category, entrance, checkout area or endcap. But brands often want more than proof of playback. They want to know whether the placement had real visibility, interaction or contextual relevance.

A compact camera module can support the customer’s edge software in collecting privacy-safe visual signals, such as:

• whether the display area is blocked;
• whether the screen has physical exposure to shoppers;
• whether an interactive terminal was used;
• whether a QR code, coupon or product trigger was presented correctly;
• whether a device-level issue needs maintenance;
• whether the screen is still aligned with the intended zone.

The important point is that this should be done with privacy-aware design. Not every project needs face detection, demographic inference or identity tracking. Many useful retail media diagnostics can be based on simple presence, object, screen-status or interaction signals.

A small USB camera can provide the video input. The customer decides the analytics logic.

7. Application 3: Smart Kiosks and Interactive Terminals

Many smart kiosks and interactive terminals need a camera, but do not have space for a large module.

Potential use cases include:

• user interaction confirmation;
• QR code or coupon capture;
• document or ticket capture;
• device status snapshot;
• unattended terminal diagnostics;
• visual proof during service events;
• retail loyalty or campaign interaction;
• privacy-safe local presence detection.

For kiosk products, the camera must be small, stable and easy to connect to the host device. The enclosure may have only a thin bezel or a small optical window. In these cases, a 15×15mm USB camera is easier to integrate than a standard boxed camera.

Depending on the terminal, product teams may consider different lens choices:

• wide-angle lens for general interaction area;
• low-distortion lens for QR or document capture;
• pinhole lens for discreet bezel integration;
• WDR camera if the kiosk faces strong backlight or glass doors;
• autofocus camera if the terminal must read close-range documents or labels.

UC-501 can be the starting point when the project needs a compact fixed-focus UVC camera. Other UC-501 family versions may be considered when WDR, autofocus or fisheye coverage is more important.

8. Application 4: Proof-of-Playback and Remote Maintenance Support

In pDOOH, the player may report that content was played. But field operators still need to know whether the screen is physically usable.

A camera can help the system check real-world conditions that software logs cannot fully prove, such as:

• screen is blocked by a poster, object or decoration;
• screen is too dark or not visible;
• player is online but display is black;
• kiosk lens or display window is dirty;
• screen direction was changed;
• terminal is damaged;
• store layout changed;
• screen is installed in the wrong position.

A compact camera retrofit can provide visual evidence for remote support teams, especially in unattended retail locations, transit hubs, malls, gyms, clinics, vending zones and multi-site networks.

For integrators, this can reduce unnecessary site visits. Instead of sending a technician only because a player log is abnormal, the operator can first check visual evidence.



9. Application 5: Context-Aware Signage Without Full System Redesign

AI signage is often described as dynamic and context-aware, but many existing screens were not built with sensors.

A compact camera can be added as one of several possible context inputs.

Potential camera-enabled context triggers include:

• motion near the screen;
• object presence near a shelf display;
• user approach to a kiosk;
• queue area activity;
• QR interaction zone;
• screen blockage;
• ambient visual condition;
• device maintenance status.

This does not mean the signage system should identify individuals. In many cases, the best design is local, anonymous and event-based.

For example:

• if someone approaches the kiosk, show the start screen;
• if the terminal is unused for a long time, switch to attract mode;
• if the screen is blocked, send a maintenance alert;
• if the product display area is empty, flag the retail team;
• if the camera sees a printed QR campaign panel, verify the physical setup.

These are practical camera uses that do not require invasive audience profiling.

10. Application 6: AI Signage Player Development Kits and Pilot Programs

Camera retrofit is also useful for development kits.

An AI signage player company may want to offer a pilot package that includes:

• media player;
• CMS integration;
• sample display;
• camera input;
• basic AI model;
• remote device management;
• campaign test workflow.

A small UVC camera reduces hardware complexity during this stage.

Developers can quickly test camera input with:

• OpenCV;
• GStreamer;
• FFmpeg;
• Android Camera API through UVC support;
• Linux UVC stack;
• edge AI frameworks;
• simple computer vision pipelines.

This is especially useful when the company is not yet sure whether the final product should include a camera on the main board, an external camera accessory or no camera at all.

The retrofit camera supports fast validation before industrial design is locked.

11. Camera Selection for pDOOH Retrofit

Not every signage project needs the same camera.

Product teams should choose based on the task:

Retrofit Task	Recommended Camera Direction
Basic screen-side visual input	Compact 2MP UVC camera
Thin bezel or hidden integration	15×15mm micro camera with pinhole or small M12 lens
Wide area around a display	Fisheye or wide-angle camera
Kiosk facing glass doors or strong backlight	WDR camera
QR, coupon, ticket or document capture	Low-distortion or autofocus camera
Object presence near shelf display	Wide-angle camera with fixed focus
Device maintenance snapshot	Standard 1080P UVC camera
Edge AI development kit	UVC camera with flexible lens and cable options

For many pDOOH retrofit projects, the most practical first sample is not the most expensive camera. It is the smallest stable UVC camera that fits the enclosure and gives the AI player usable input.

12. Privacy and Compliance Boundary

Camera retrofit for pDOOH must be handled carefully.

A compact camera can support useful signage functions, but it should not be used as a shortcut for collecting sensitive personal data.

Before deployment, the signage operator should define:

• whether video is processed locally or uploaded;
• whether images are stored;
• whether individuals can be identified;
• whether demographic inference is used;
• whether consent or signage notice is required;
• whether the system complies with local privacy regulations;
• whether the use case can be solved with anonymous event data instead of personal data.

For many deployments, privacy-safe design means:

• process video locally;
• avoid face recognition;
• avoid identity tracking;
• avoid storing raw video unless necessary;
• report only aggregated or event-level metadata;
• make the camera purpose clear to the venue owner and end user.

Goobuy supplies camera-side hardware. The customer is responsible for final analytics behavior, privacy policy, legal compliance and deployment rules.

13. When UC-501 Is a Strong Fit

UC-501 is likely a strong fit for pDOOH-ready camera retrofit when the project has these conditions:

• existing AI signage player or edge box;
• USB camera input is supported;
• enclosure space is limited;
• 1080P video is enough;
• UVC plug-and-play is preferred;
• fast prototype or pilot validation is needed;
• camera must be embedded into a bezel, kiosk, player box or compact terminal;
• lens, cable or connector flexibility is required;
• the system needs visual input but not a full industrial camera.

The best use case is not replacing the whole signage hardware.
The best use case is adding camera-side visual input to an existing pDOOH hardware platform.

14. When UC-501 May Not Be the Right Camera

UC-501 should not be selected blindly.

It may not be the best fit if the project mainly requires:

• outdoor vandal-resistant camera housing;
• direct rain or weather exposure;
• high-resolution long-distance audience analytics;
• precise synchronized multi-camera measurement;
• certified biometric identity capture;
• high-end machine vision inspection;
• large-scale analytics without a privacy framework;
• extreme low-light capture without additional illumination;
• rugged outdoor DOOH enclosure camera without mechanical protection.

For these cases, the integrator may need a different camera architecture, stronger housing, WDR version, autofocus version, fisheye version or a complete camera assembly designed for the final enclosure.

15. RFQ Checklist for pDOOH Camera Retrofit Projects

Before asking for a camera sample, product teams should define:

1. Host device:
   • Android signage player;
   • Linux AI player;
   • Windows signage PC;
   • retail media edge box;
   • kiosk terminal;
   • embedded controller.
2. Camera purpose:
   • proof-of-display;
   • interaction detection;
   • QR capture;
   • remote diagnostics;
   • presence sensing;
   • object detection;
   • screen blockage detection;
   • pilot AI analytics.
3. Mechanical integration:
   • available camera space;
   • bezel thickness;
   • lens window size;
   • mounting direction;
   • cable route;
   • connector type;
   • external or internal mounting.
4. Optical requirement:
   • field of view;
   • working distance;
   • target size;
   • distortion tolerance;
   • lighting condition;
   • backlight or reflection risk.
5. Software and privacy:
   • local processing or cloud processing;
   • whether video will be stored;
   • whether analytics are anonymous;
   • OS and UVC compatibility;
   • AI pipeline or CV library;
   • required frame rate and video format.
6. Deployment plan:
   • sample quantity;
   • pilot quantity;
   • target sites;
   • expected lifetime;
   • customization needs;
   • production forecast.

Clear project information makes camera selection much faster and avoids sending the wrong sample.

16. Conclusion

pDOOH and AI digital signage are moving into a more practical stage in 2026. The market is no longer impressed by smart-player demos alone. Retailers, venue owners and advertisers want evidence, measurement, remote diagnostics, privacy-aware context and operational reliability.

For many existing AI signage players and retail media screens, a full hardware redesign is not the first step. A compact camera retrofit can be a faster way to test visual input, interaction sensing, proof-of-presence, screen diagnostics and edge AI functions.

Goobuy UC-501 is a practical starting camera module for this type of retrofit because it combines 15×15mm size, 1080P UVC video, USB integration, M12 lens flexibility and compact OEM design support.

It does not replace the customer’s AI player, CMS, ad platform, privacy policy or analytics software. It provides the camera-side visual input layer that helps the customer’s existing system see more than a playback log.

If you are building or upgrading an AI digital signage player, pDOOH screen, smart kiosk or retail media terminal, send us your host device, OS, camera purpose, mounting space, lens requirement, lighting condition and pilot plan.

Goobuy can help evaluate whether UC-501 or another compact USB camera configuration is the right camera-side starting point for your pDOOH-ready retrofit project.

This Article is updated by Mr Art huang from shenzhen novel electronics limited in July 13th, 2026
