China Patented design mobile dvr 4 channel MDVR Camera System for Taxi Uber Car rental
Benefit of GPS Fleet dash camera for
fleet car rental and taxi company firms like avis hertz and customers
4G GPS Fleet management technology can help car rental
businesses to enhance their operations in a number of key areas.
1, Improve customers/cargo/property/vehicle safety, Improve
vehicle maintenance
2, submit keying fact and evidence of incident in the court
if meet sue from renter or customers for traffic incidents
3, Real-time updates and insights of vehicle
location/status/driving video
4, Custom reporting helps increase efficiency and cuts extra
unexpected costs/pay/fee
5, Reduce risk of vehicle damage, loss and claims — with
safer driving implemented as standard
6, Improve customer satisfaction and ROI meanwhile prolong
life of running rental vehicles
7, Record and enjoy wonderful and happy travel trip for
customers
Core Function: G-Sensor,
3G/4G Sim Card, Alarm record, GPS, Remote preview, Video

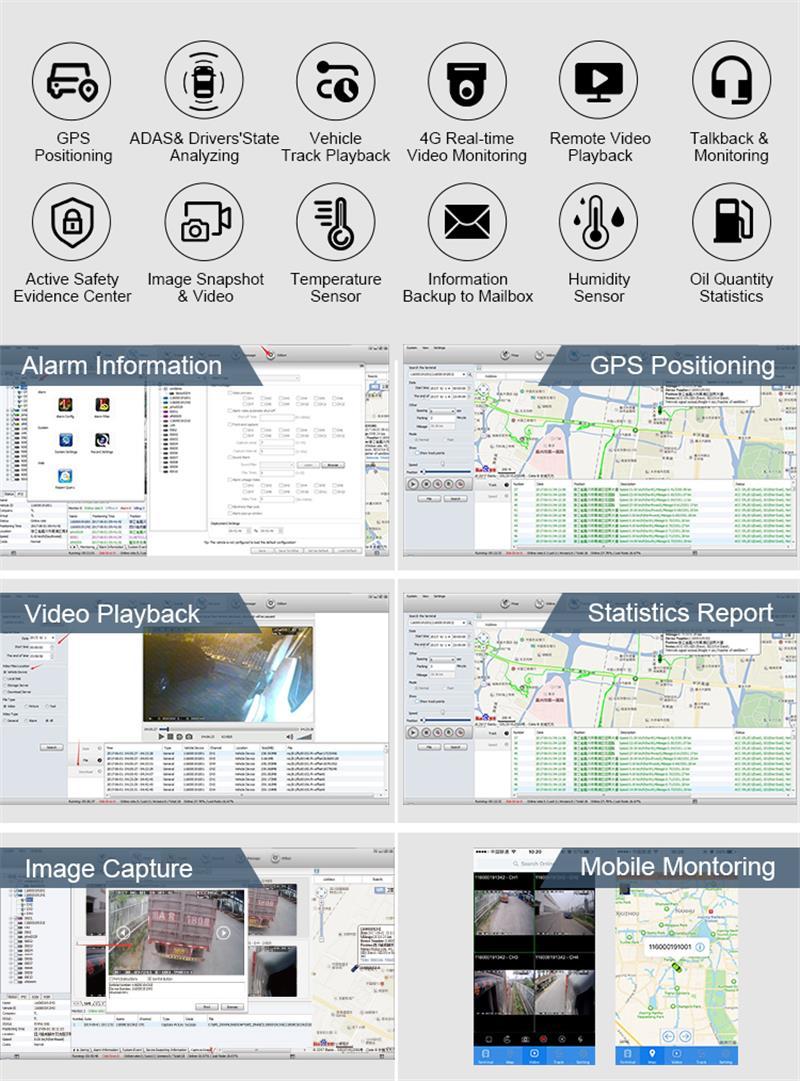

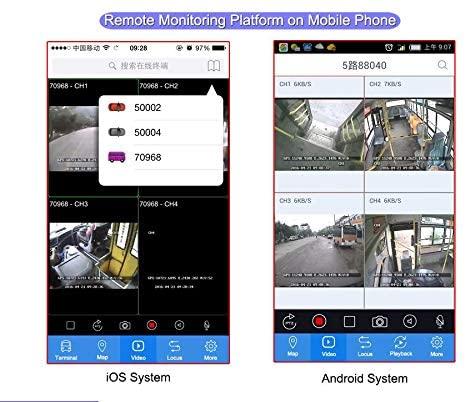

record, Video playback, Crash detection, Driver behavior monitor, Cab monitor, real time online checking on
PC/ipad/phone, Two-Way Communication

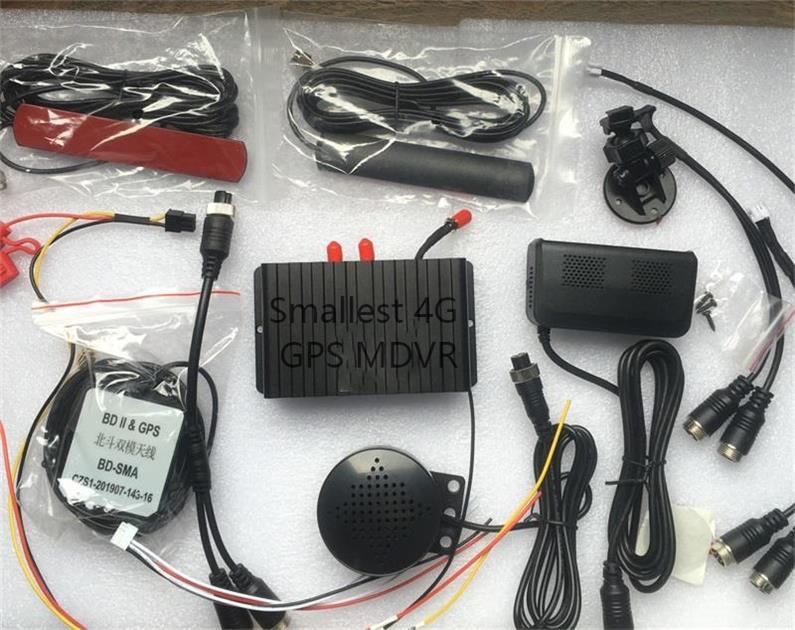

Product name: 4G
GPS MINI Mobile DVR For Taxi rideshare
Resolution: 1080P/720P
Keying feature: G-Sensor,
4G, Alarm record, WIFI, GPS, Remote preview, Video record, Video playback,
Crash detection, Driver behavior, Cab monitor
Voltage: DC 8-36V
TV system: PAL
NTSC Optional

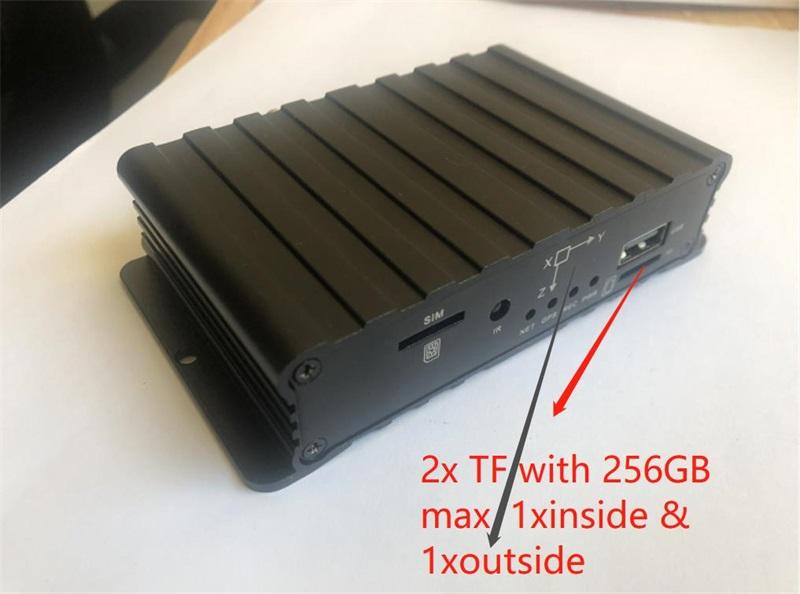

Storage: 2x TF
with 256GB max, 1pcs built-it inside & 1pcs external
Video input: 4CH
1080P
Video output: 1CH
HDMI & 1CH CVBS

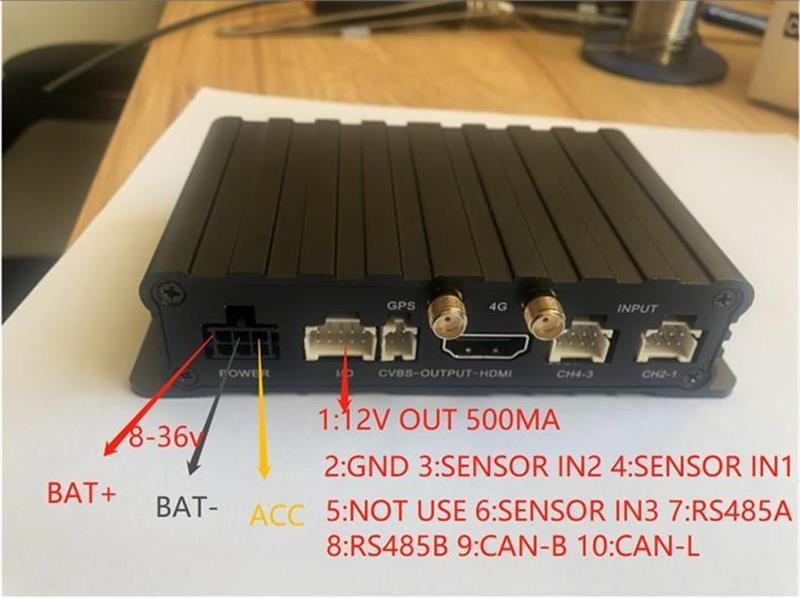

I/O:3CH Alarm
input/ 1CH RS485 port
ITEM Name |
TECHNICAL PARAMETER |
PERFORMANCE |
Product Name |
4G GPS Taxi MDVR camera |
2ch or 4ch dash cam/ video recording are available, AHD and CVBS mixed OK |
Function Profile |
Dash Cam+ Real time GPS online checking on PC/laptop/Ipad/smartphone |
Video, playback, crash detection, remote real-time preview, GPS, alarm record, etc. |
3G/4G |
Optional built-in 3G/4G modules |
(FDD-LTE/TD-LTE/WCDMA/CDMA200) |
System |
Language |
English or Customized |
Operation System |
Linux |
|
Main processor |
A9 |
|
Video |
Video Input |
4 CH: AHD 1080P@30fps |
Video Output |
1 CH: HDMI, 1 CH: CVBS |
|
Video Standard |
PAL, NTSC |
|
Video Compression |
H.265, 30 FPS |
|
Video Display |
1~4 CH |
|
Audio |
Audio Input |
4CH 4ch independent,600Ω 8ch independent,600Ω |
Audio Output |
1 CH |
|
Audio Code |
G726 |
|
Recording |
Simultaneous with video recording |
|
Image Processing & Storage |
Image Format |
720p/1080p optional |
Video Code Rate |
720p: 2048Kbps ~ 4096Kbps |
|
1080P: 2048kbps~8192kbps |
||
8 levels, and L1 is the best |
||
Data Storage |
2x TF with 256GB maximum, hidden /outside |
|
USB |
1x USB (Mouse and WIFI dongle) |
|
Alarm (Optional) |
Alarm Input |
3 CH high level trigger |
RS485 Port |
1 CH |
|
Extendable Port |
4G LTE |
TD-LTE/FDD-LTE |
GPS |
GPS. Beidou and Glonass as options |
|
Acceleration sensor |
G-sensor |
3 axis |
Image compression |
H.265,Variable stream(VBR) / Fixed stream (CBR) |
|
Password login |
Users Password/ Administrator Password |
|
Wifi Module |
Optional available/wifi module 2.4GHz/5.8GHz |
Can be customized or add as per special requirement/ (IEEE802.11n/g/b) for remote |
Memory |
Embedded SD Card and exterior SD Card |
Support Both 256GB SD Card |

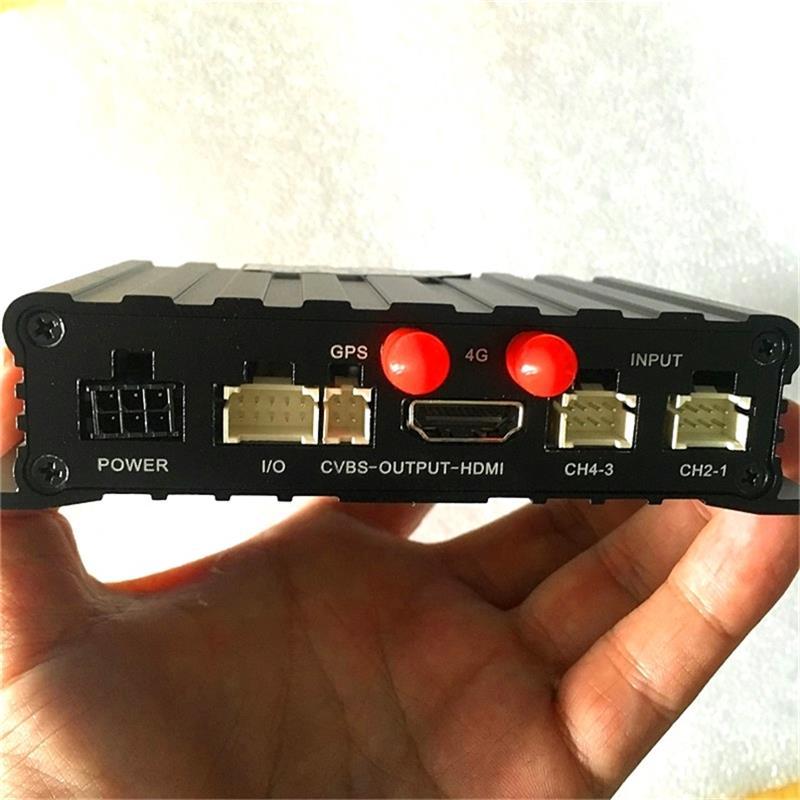

Connection port |
Output |
HDMI connector |
Input |
Navigation connector |
|
Working Environment |
Working Temp. |
-20~ +65℃ |
Humidity |
10%~90% |
|
Shape/size/weight
|
Shell |
Aluminum alloy |
Net weight |
200gram |
|
|
|
|

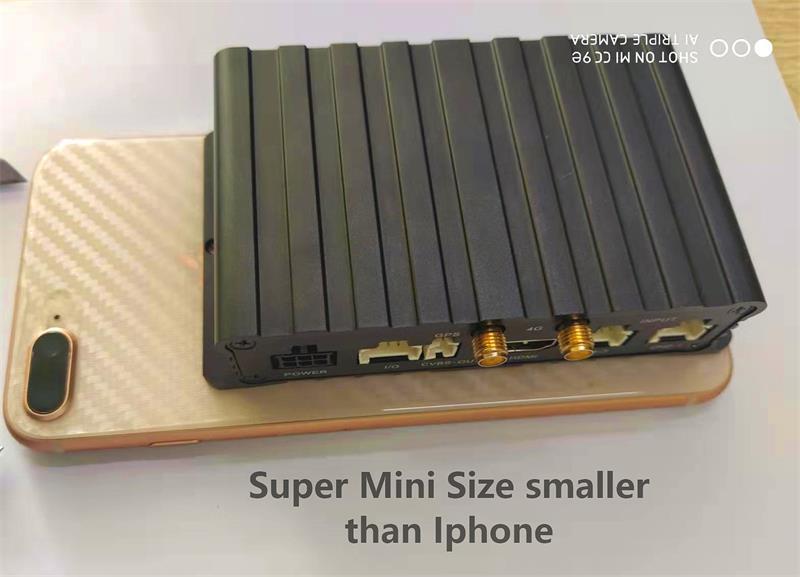

Product Size |
115mm*66mm*28mm |

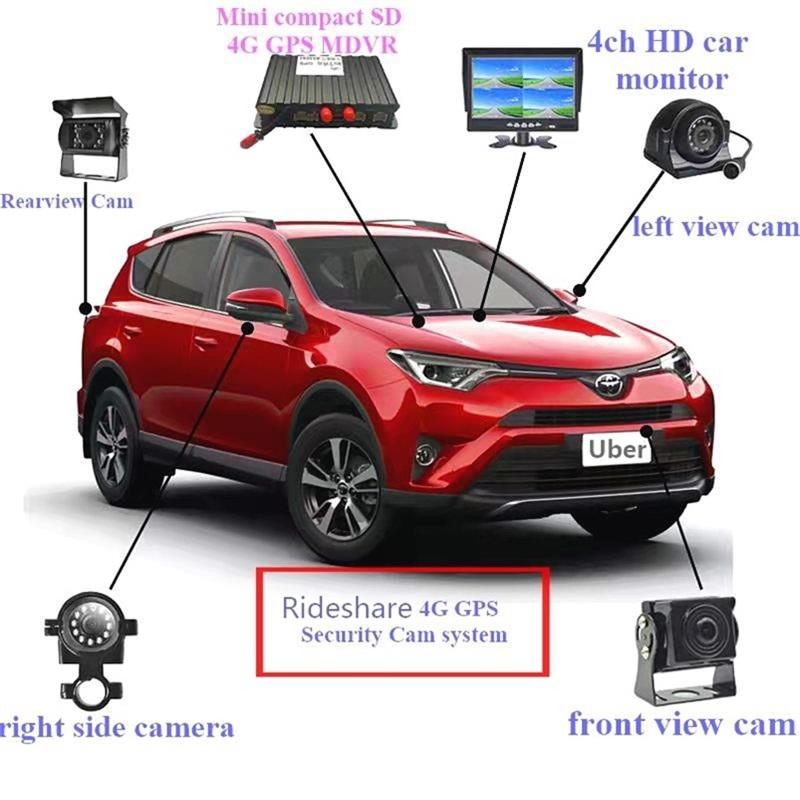

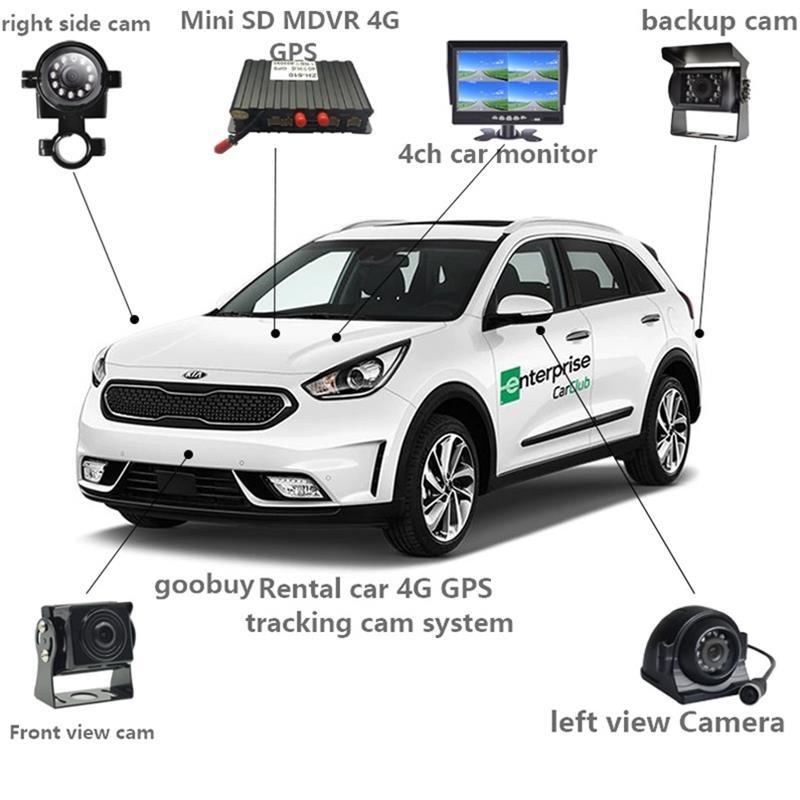

It can connect 4 following car camera to effect 360 degree vehicle cctv monitoring
FORWARD-FACING CAMERA
Wide-angled HD cameras provide evidence of other people’s
driving and can help combat fraud. With night vision, they give you complete
peace-of-mind and clear images of the road ahead.
REAR-VIEW CAMERA
These cameras monitor the rear of the vehicle, constantly
recording and when used alongside a dashboard-mounted monitor they double up as
reversing camera.
PASSENGER CAMERA CABIN
Multi-channel cameras are ideal for use as a secondary
camera designed to monitor the driver or passengers, helping to quickly prove
false allegations and deter physical violence.
PANIC BUTTONS FOR SOS
Real-time alarm, so drivers and/or passengers can raise an
immediate alert regarding an incident or threat. Once the panic button has been
activated, the system becomes audio-enabled and can stream live video back to
base.
Product Application:
(1)4G GPS security cctv camera system for rental car firms
and their brand cars include Hertz, Budget, Avis, Alamo, Dollar, Ace,
Enterpise, National Sixt,Thrifty, Nu, Europcar, AEZ-Advantage,Payless, ZipCar.
(2)Mini MDVR 4G GPS camera system apply for these Rideshare
Car Uber, Lyft, Didi, Grab, Ola, Uber, 99, Taxify, Careem,Mytaxi, Cabify,
Yandex Taxi, Kakao Taxi, Gocatch, Bitaks, Gett
(3),4G GPS Fleet dash camera system can work for Cab,Cabbie,Cruising Cab,Cruising Taxi,Fleet Taxi,Individually Owned Cab and Meter Taxi,
(4),GPS Mini Mobile DVR system can be used for Minicab,Radio Cab,Radio Taxi,Radio-Dispatched Cab,Radio-Dispatched Taxi,Taxicab
(5). 360 security camera system with GPS can be applied for private hire drivers
Limousine Surveillance

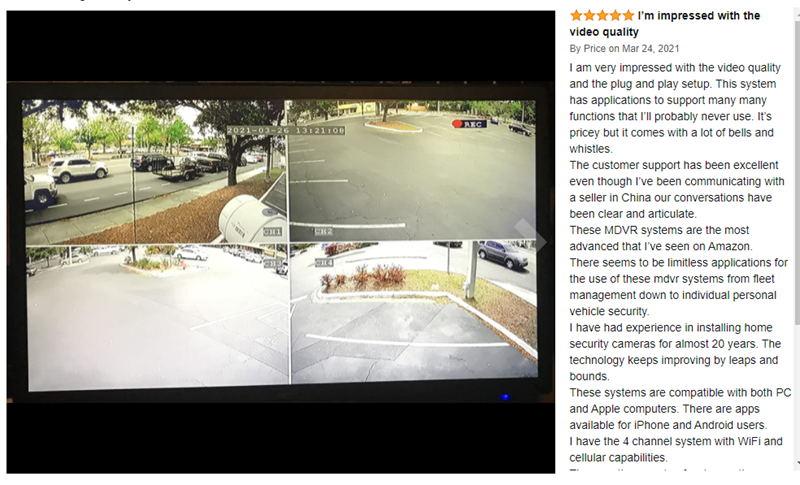

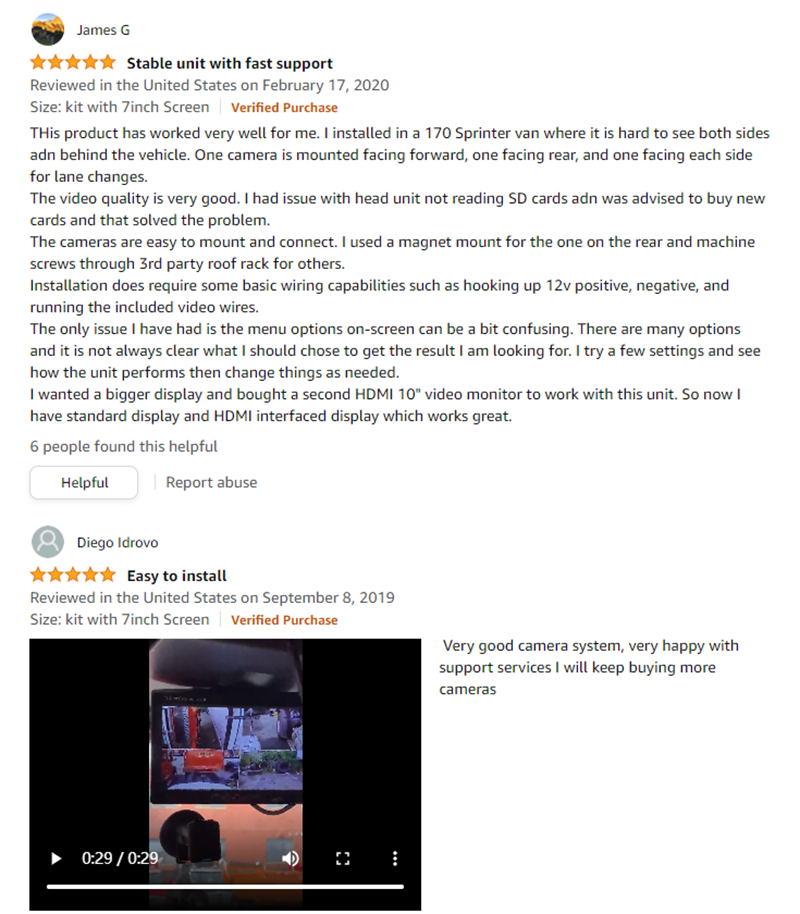

Feedback and comments from our ordering customers for our MDVR ago
