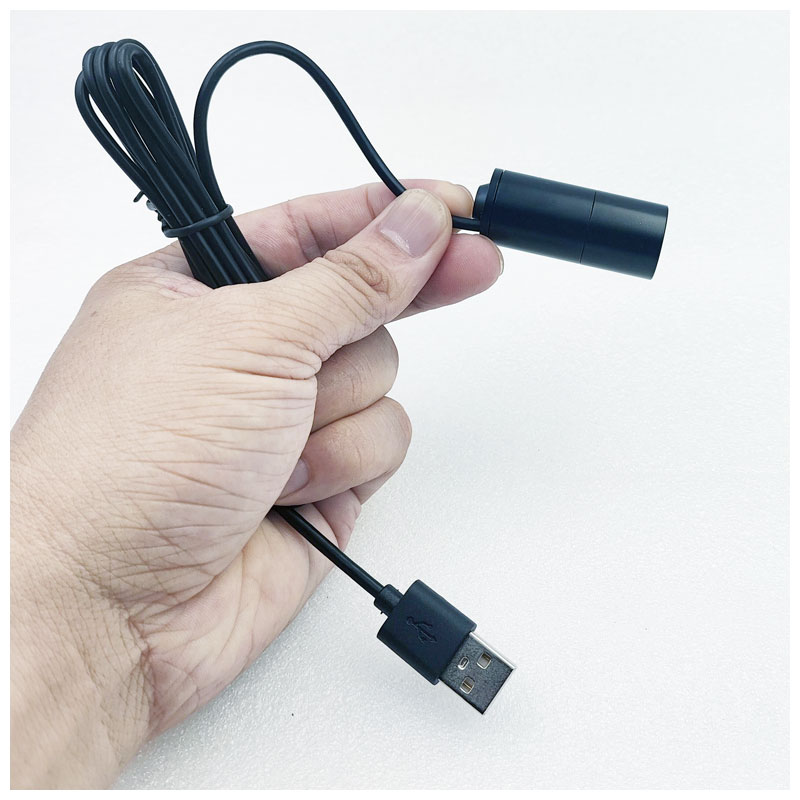

Goobuy UC-511 is a 19×43mm micro bullet USB UVC camera with a compact metal housing and replaceable lens options. It is designed for business equipment, Android industrial terminals, Linux embedded hosts, Windows PC-based devices, smart cabinets, service tools, production test fixtures, protected commercial devices, and embedded host systems that need a small external camera head for local video input.

Unlike a bare board USB camera, Goobuy UC-511 already includes a metal housing for easier mounting and equipment testing. Unlike a waterproof USB camera, UC-511 is not intended for direct outdoor rain, washdown, vehicle exterior, or wet industrial exposure. Unlike a consumer Android OTG camera, UC-511 is positioned for professional equipment builders and system integrators that already have a host device, software path, mounting position, viewing target, FOV requirement, sample plan, and possible batch demand.

UC-511 is not a spy camera, not a consumer phone accessory, not an IP camera, not a machine vision camera, and not a certified vehicle safety camera. It is a compact housed USB camera platform for protected business equipment and OEM evaluation.

UC-511 19×43mm Micro Bullet USB UVC Camera for Business Equipment and Embedded Host Devices

A compact metal-housed USB camera with replaceable lens options for Android industrial terminals, Linux devices, PC-based equipment, smart cabinets, service tools, test fixtures, and protected commercial systems.

Not a Consumer Phone OTG Camera. Not Waterproof. Built for Protected Business Equipment.

Many marketplace products use titles such as:

Micro USB OTG Camera | Android External Camera | Mini Bullet Webcam | 1080P UVC Camera for Phone and PC

These keywords attract traffic because many buyers search for them. A product title that includes 19×43mm, micro bullet, 1080P, 2MP, USB UVC, OTG, external camera, Android, and PC can perform well on marketplace platforms.

But Goobuy does not position UC-511 as a consumer phone gadget.

For professional buyers, the real question is not:

“Can I connect this camera to my phone?”

The better question is:

“We already have an Android industrial terminal, Linux host, Windows PC, embedded controller, smart cabinet, service tool, or protected commercial device. Can UC-511 provide a compact metal-housed USB UVC camera head that fits our mechanical space and viewing task?”

That is the customer this page is written for.

UC-511 is designed for business customers who can define:

host device | operating system | software path | mounting position | viewing distance | required FOV | lens requirement | cable length | connector preference | sample quantity | possible batch demand



Core Decision Snapshot

Customer Question	UC-511 Fit
Do you need a 19×43mm compact housed USB camera for business equipment?	Good fit
Do you already have an Android industrial terminal, Linux host, Windows PC, or embedded controller?	Good fit
Do you need USB UVC local video input without IP network setup?	Good fit
Do you need a small metal housing instead of a bare board camera?	Good fit
Do you need replaceable lens options for FOV or working distance testing?	Good fit
Do you need a camera for smart cabinets, service enclosures, test fixtures, or protected equipment?	Good fit
Do you need outdoor rain, washdown, or IP-rated protection?	Not fit; choose an IP67 waterproof USB camera
Do you want a personal Android phone OTG camera?	Not fit
Do you need AI machine vision, global shutter, SDK, or trigger control?	Not fit
Do you need IP camera, PoE, NVR, VMS, or network surveillance?	Not fit
Do you need spy camera, hidden camera, or privacy-sensitive personal use?	Not fit
Do you have sample quantity and possible batch demand?	Good fit

What UC-511 Is

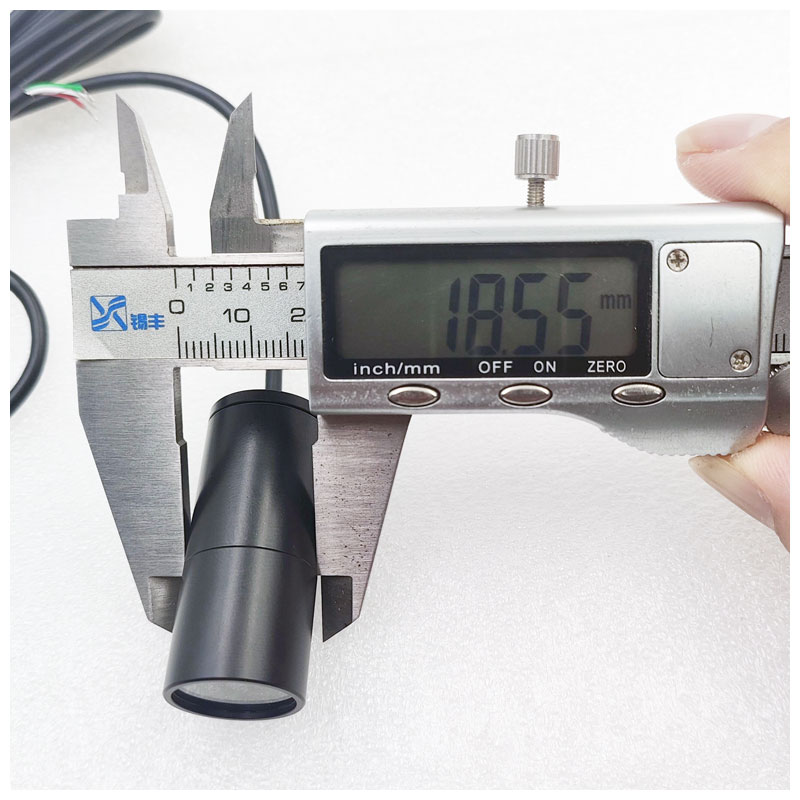

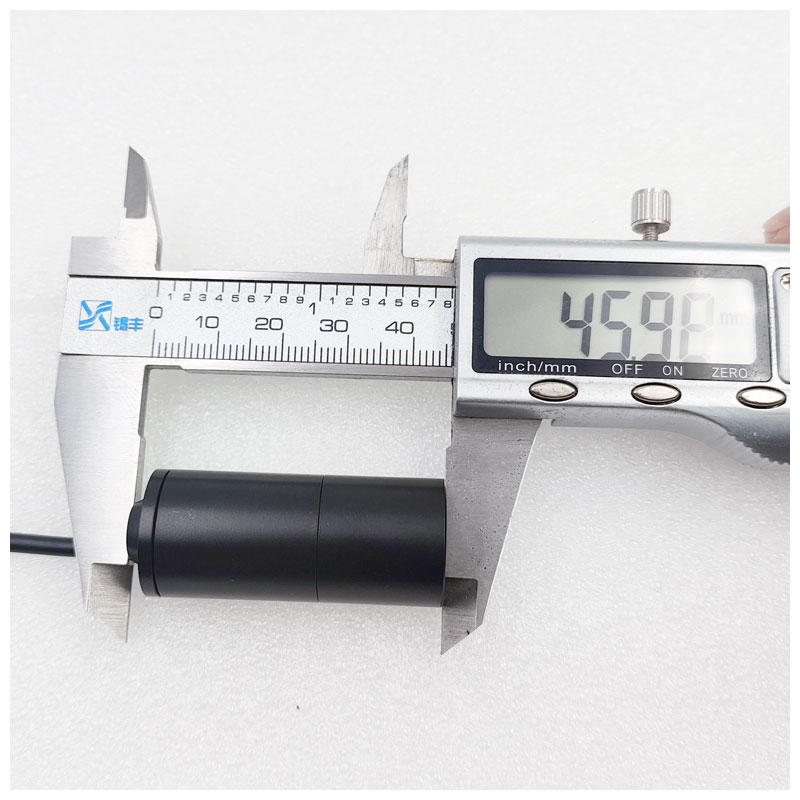

UC-511 is a compact 19×43mm micro bullet USB UVC camera with a metal housing and replaceable lens options. It is designed for host-based video input where the customer already has a device that can accept USB camera video.

It is different from a bare board camera. A board camera may be smaller, but it requires extra mechanical protection, mounting design, lens exposure protection, and cable strain relief.

It is different from a waterproof camera. UC-511 is better for indoor, protected, enclosed, or semi-protected equipment environments. If the camera will be directly exposed to rain, water spray, dust ingress, vehicle exterior conditions, or washdown environments, Goobuy should recommend an IP67 waterproof USB camera instead.

It is different from an IP camera. UC-511 does not need network configuration, IP address setup, PoE, NVR, VMS, cloud platform, or browser-based camera management. It connects directly to a host through USB.

It is different from a consumer webcam. UC-511 is designed for equipment mounting, local video input, and OEM evaluation, not desk video calls.

It is different from a machine vision camera. UC-511 can provide video input to a host, but it is not designed for global shutter motion capture, trigger control, SDK-based inspection, or calibrated measurement.

Typical Product Direction

Final specifications should be confirmed according to project requirements, because lens, cable, connector, sensor, resolution, and host support may vary by version.

Item	Typical Direction
Product Model	UC-511
Camera Type	19×43mm micro bullet USB UVC camera
Housing	Compact metal housing
Waterproof	No; not for direct rain, washdown, or unprotected outdoor exposure
Resolution	1080P / 2MP class depending on configuration
Interface	USB 2.0
Protocol	UVC
Host Devices	Android industrial terminal, Linux host, Windows PC, embedded controller

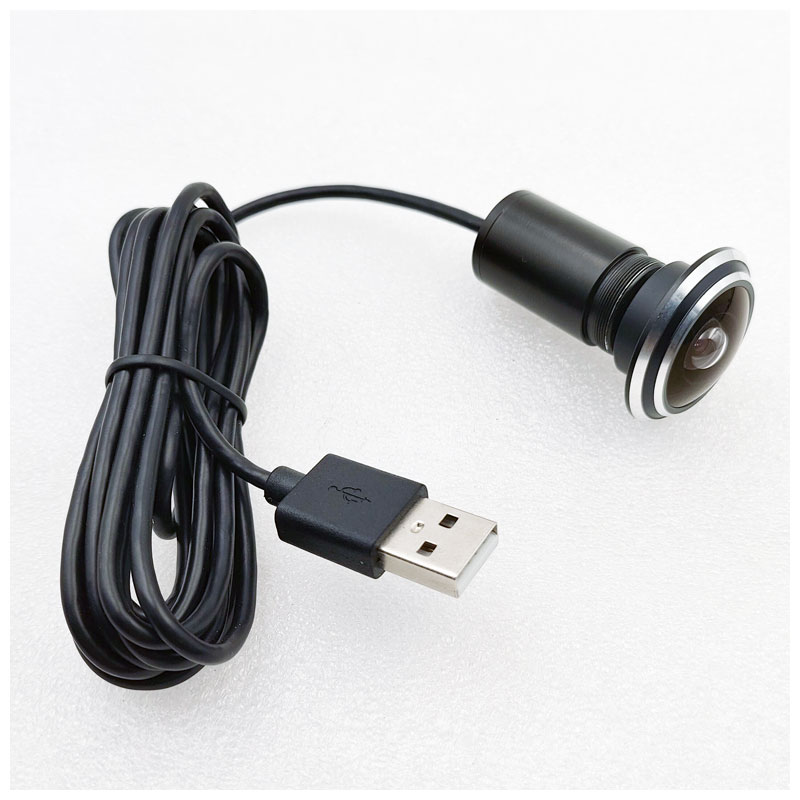

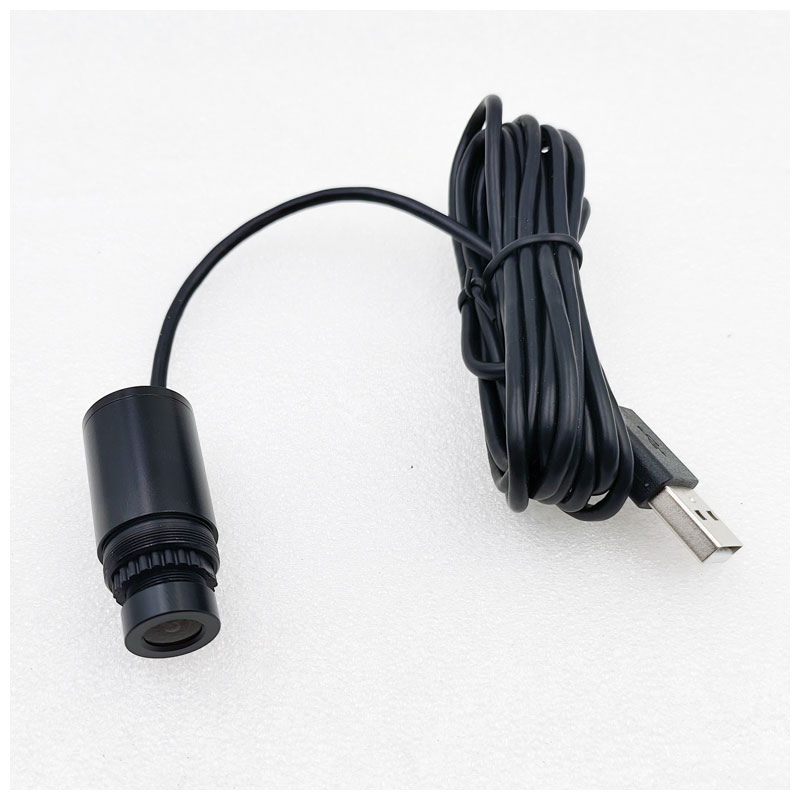

Lens	Replaceable lens options depending on project
Focus	Fixed focus or adjusted lens configuration by project
Main Use	Protected business equipment viewing, smart cabinet, service tool, industrial terminal, embedded host camera
Not For	Consumer phone OTG, spy use, DIY hobby, waterproof outdoor exposure, precision machine vision

Why the 19×43mm Micro Bullet Form Factor Matters

The success of similar marketplace products shows that buyers like a small housed external camera. The reason is simple: a housed camera is easier to understand, test, and mount than a bare camera board.

UC-511 uses this practical form factor but positions it for professional projects instead of low-price consumer OTG traffic.

For business customers, the value of UC-511 includes:

• compact 19×43mm micro bullet housing
• metal enclosure for easier equipment mounting
• USB UVC plug-and-play video path
• replaceable lens options for different FOV and working distance
• better protected structure than a bare board camera
• easier sample testing inside real equipment
• local video input without IP camera setup
• possible cable, connector, lens, packaging, or mounting discussion by project

For many business projects, the buyer does not need a large industrial camera. They need a small camera head that can be mounted on or inside equipment and connected to the existing host.

Customer Pain Point Matching

Pain Point 1: “Our host already exists, but the built-in camera is in the wrong place.”

Many Android industrial terminals, rugged tablets, Windows PCs, Linux controllers, and embedded host devices already support cameras, but the built-in camera may face the wrong direction.

UC-511 can be used when the camera must be placed away from the host device:

• inside a smart cabinet
• near a latch or service area
• on a test fixture
• beside a control panel
• inside a protected enclosure
• on a service tool
• at a fixed viewing point

Pain Point 2: “A bare board camera is too exposed for our equipment test.”

Bare USB cameras are useful for embedded design, but they may be fragile during real equipment testing. UC-511 provides a compact metal housing, making it easier to mount and evaluate in a practical device structure.

Pain Point 3: “We do not want IP camera setup.”

Some systems already have a local host and do not need network cameras.

UC-511 is suitable when the customer wants:

• direct USB video input
• no IP address setup
• no PoE switch
• no NVR or VMS
• no browser-based camera management
• simple host-side video capture

Pain Point 4: “The lens angle is uncertain.”

Many camera projects fail because the FOV is wrong, not because the resolution is too low.

UC-511’s replaceable lens direction can help project teams evaluate:

• 90° vs 120° field of view
• close-range vs wider-area viewing
• target size in frame
• working distance
• distortion level
• mounting position
• whether the camera sees the correct object or area

Pain Point 5: “We need a business sample first, then possible configuration.”

Goobuy recommends testing UC-511 samples in the real host and equipment environment first. If the sample is close but not perfect, lens, cable, connector, mounting, housing label, packaging, or deeper project-based configuration can be discussed.

Best-Fit Business and Industrial Scenarios

1. Android Industrial Terminals and Rugged Tablets

UC-511 can be evaluated as an external camera for Android industrial terminals or rugged tablets when the built-in camera does not face the required direction.

Typical buyer question:

“We need an external USB UVC camera for an Android industrial terminal, but it is for business equipment, not consumer phone OTG use. What should we evaluate?”

UC-511 may be suitable when the customer can test USB host support, UVC access, software compatibility, power output, cable retention, and mounting stability.

2. Linux Embedded Hosts and PC-Based Equipment

Some equipment uses a Windows PC, Linux board, embedded Linux controller, or industrial computer. UC-511 can provide a compact external video input without requiring IP camera setup.

Typical buyer question:

“We need a compact USB camera for a Linux-based equipment controller. It should be a small housed camera, not a bare board module.”

This is a strong fit when the project needs local UVC video capture and a compact camera head.

3. Smart Cabinets and Service Enclosures

UC-511 can be used in protected equipment where the customer needs visual confirmation of:

• internal compartment
• indicator light
• door or latch status
• product position
• service area
• tool or component location
• equipment condition

Typical buyer question:

“We need a small micro bullet USB camera inside a smart cabinet to view an internal area. The device already has a USB host. Can UC-511 work?”

This product is useful for protected indoor or semi-protected equipment. If the installation is exposed to rain or water, choose a waterproof model instead.

4. Vending, Smart Retail, and Pickup Stations

UC-511 can be evaluated for protected commercial equipment such as indoor vending systems, smart retail devices, pickup stations, product monitoring areas, and service counters.

Possible viewing points include:

• product path
• pickup area
• tray movement
• door or latch position
• internal compartment
• service access point
• product position confirmation

Typical buyer question:

“We need a 1080P USB UVC camera for vending equipment or a pickup station. It should connect to our local host and fit in a small mechanical space.”

UC-511 can provide local video input for visual confirmation, not full security surveillance or AI inspection.

5. Test Fixtures, Lab Equipment, and Production Workstations

Some engineering teams need a small housed USB camera to observe:

• LEDs
• small parts
• alignment points
• moving mechanisms
• test fixture status
• device screen or label
• assembly process
• operator support area

Typical buyer question:

“We need a small UVC camera for a PC-based test fixture. A board camera is too exposed, but a full industrial camera is too large.”

UC-511 can be a practical middle option.

6. Service Tools and Protected Commercial Devices

UC-511 can be considered for service tools, field inspection accessories, mobile workstations, or maintenance systems where a compact fixed-view camera is needed.

Typical buyer question:

“We need a compact external USB camera for a service tool. The lens angle may need to change depending on working distance. Is there a small metal-housed UVC camera with replaceable lens?”

This is where UC-511’s compact housing and replaceable lens options are more valuable than a generic phone OTG camera.



Goobuy UC-511 vs Other Camera Types

Camera Type	Better Fit
UC-511 Micro Bullet USB Camera	Compact housed local USB video input for protected business equipment
Bare Board USB Camera	Smallest embedded camera when OEM already has housing
IP / PoE Camera	Network viewing, NVR, VMS, browser access, remote surveillance
IP67 Waterproof USB Camera	Outdoor rain, water exposure, vehicle exterior, wet environments
Machine Vision Camera	Trigger, SDK, global shutter, calibrated inspection
Consumer Webcam	Desk video calls and home PC use

UC-511 is best when the customer needs a compact metal-housed USB camera for protected business equipment, not an IP camera system, waterproof camera, or machine vision camera.

Android, Linux, and PC Compatibility Notes

A USB UVC camera may work with many host devices, but it should not be described as universally compatible with every Android device, PC, Linux board, or embedded controller.

Compatibility depends on:

USB host support | Android version | UVC camera access | Linux kernel support | Windows camera API | application software | power output | cable quality | permission control | MJPEG / YUY2 support | resolution and frame-rate setting

For business projects, Goobuy recommends testing UC-511 with:

• exact host device
• exact OS version
• actual software application
• required resolution and video format
• real mounting position
• final cable route
• intended power design
• real lighting condition

This avoids assuming that “UVC” automatically means every host will work perfectly.

Important Boundary: UC-511 Is Not Waterproof

UC-511 uses a compact metal housing, but it is not a waterproof outdoor camera.

Do not use UC-511 for:

• direct rain exposure
• outdoor pole mounting
• washdown areas
• wet industrial environments
• vehicle exterior exposure
• long-term dust or water exposure
• IP-rated enclosure requirements unless protected by the customer’s own housing

If the project requires waterproof protection, choose an IP67 waterproof USB camera instead.

UC-511 is better for:

• indoor equipment
• protected commercial devices
• enclosed cabinets
• semi-protected terminals
• equipment interiors
• test fixtures
• service tools
• host-based visual confirmation

This boundary should be stated clearly to reduce wrong inquiries.

Sample-to-Batch and Platform-Based Configuration Path

Goobuy recommends a staged evaluation path for UC-511.

Stage 1: Standard Sample Test

The customer tests UC-511 with:

• real host device
• real software
• intended mounting position
• actual working distance
• required FOV
• real lighting condition
• cable route
• mechanical clearance

Stage 2: Platform-Based Configuration

If the sample is close but not perfect, Goobuy can discuss:

• lens / FOV option
• cable length
• connector type
• mounting method
• housing label
• packaging
• possible firmware descriptor by project

Stage 3: Paid NRE if Required

If the project requires new mechanical structure, special connector, deeper firmware work, new cable assembly, or non-standard housing changes, paid NRE may be required after feasibility review.

Goobuy recommends testing existing samples first, then deciding whether platform configuration or paid NRE is justified.

What Business Customer Should Test Before Batch Use

Before using UC-511 in a business device, engineers should test:

host compatibility | software access | video format | mounting position | viewing distance | lens angle | FOV | lighting condition | cable routing | connector retention | power stability | housing clearance | image quality under real working conditions | sample-to-batch consistency

Do not evaluate UC-511 only as a desk webcam. Test it in the actual equipment or a realistic prototype setup.

Not the Best Fit

UC-511 is not designed for:

• personal smartphone camera experiments
• consumer Android phone OTG use
• hobby projects
• spy camera or privacy-sensitive hidden use
• home webcam buyers
• outdoor rain exposure
• waterproof equipment requirements
• AI machine vision inspection
• global shutter motion capture
• precision measurement
• certified vehicle safety systems
• full CCTV / IP camera surveillance systems
• medical diagnostic imaging
• hazardous-location or explosion-proof systems

If the project is only:

“Can I use this with my phone?”

it is not the right target for UC-511.

If the project is:

“We have a host-based business device and need a compact metal-housed USB UVC camera with lens options,”

then UC-511 may be worth evaluation.

RFQ Checklist for UC-511 Projects

Before requesting a quotation, please send:

application type | host device model | operating system | USB port type | software/app path | indoor or protected environment | mounting position | viewing distance | required FOV | lens preference | cable length | connector requirement | expected sample quantity | annual quantity | photos or drawings of installation area

For equipment or fixture projects, please also describe:

mechanical space | camera angle | target object size | lighting condition | whether the camera is exposed or protected | whether lens replacement is needed | whether the camera must be fixed or adjustable

This helps Goobuy determine whether UC-511 is suitable or whether another camera platform is a better technical fit.

Why Goobuy Does Not Position UC-511 as a Consumer OTG Camera

The Alibaba-style product proves there is market demand for micro bullet USB UVC cameras, but Goobuy does not want to compete mainly on low-price consumer OTG traffic.

UC-511 is positioned for business and OEM customers who care about:

• compact metal housing
• 19×43mm installation size
• replaceable lens options
• host-based UVC video
• protected equipment mounting
• sample-to-batch evaluation
• cable and connector discussion
• business equipment compatibility
• clear “not waterproof” boundary
• clear “not consumer phone OTG” boundary

A consumer buyer asks:

“Can this connect to my phone?”

A professional buyer asks:

“Can UC-511 fit our Android industrial terminal, Linux equipment host, smart cabinet, service tool, or PC-based fixture, and can we test lens/FOV/cable configuration before batch use?”

That is the customer Goobuy wants.

Final Recommendation

UC-511 should not be marketed as a low-cost Android phone OTG camera, even though OTG and UVC are useful search keywords.

Its stronger business positioning is:

a compact 19×43mm metal-housed USB UVC camera for protected business equipment, embedded host devices, industrial terminals, smart cabinets, service tools, and PC/Linux/Android-based systems.

Choose UC-511 when you need:

micro bullet housing | 19×43mm compact size | USB UVC video | replaceable lens options | local host connection | protected equipment mounting | sample-to-batch evaluation

Choose another camera when you need:

waterproof outdoor exposure | IP camera networking | machine vision | global shutter | thermal imaging | certified vehicle safety | consumer phone OTG use

For enterprise projects, Goobuy recommends testing UC-511 samples in the real host device, mounting position, software environment, lens/FOV condition, and equipment structure before batch use.

Professional FAQ

1. We need a compact external USB camera for our Android industrial terminal, but we do not want a consumer phone OTG camera. Is UC-511 suitable?

Yes. UC-511 is better positioned as an external USB UVC camera for Android industrial terminals, rugged tablets, and business host devices, not as a consumer phone OTG gadget. It should be evaluated when your Android device supports USB host mode, UVC camera access, stable power output, and application software capture.

2. Our product already has a Linux host, but the built-in camera position is wrong. Can UC-511 be used as an external UVC camera for a Linux embedded device?

Yes. UC-511 can be tested as a micro bullet USB UVC camera for Linux host devices when the camera must be placed away from the main device. Final compatibility depends on Linux kernel support, UVC path, video format, USB bandwidth, software capture method, power stability, and cable routing.

3. We are comparing a bare board USB camera and a housed micro bullet USB camera. Why would UC-511 be better?

Choose UC-511 when your team needs a small metal-housed USB camera head that is easier to mount, protect, and test inside business equipment. A bare board camera may be smaller, but it requires your own housing, lens protection, mechanical fixing, and strain relief design.

4. Our smart cabinet needs a small camera to view door/latch status and internal compartments. Is UC-511 a good fit?

Yes. UC-511 can be evaluated as a compact USB camera for smart cabinets, service enclosures, and protected commercial equipment. It can help view internal compartments, indicator lights, latch status, product position, or service areas when the cabinet already has a USB-compatible host.

5. We need a USB camera for vending equipment or smart retail devices. Can UC-511 monitor product paths or pickup areas?

Yes. UC-511 can be tested for vending machine product path viewing, pickup area observation, tray movement checking, and service diagnostics in protected equipment. It is for visual confirmation and equipment support, not certified metrology, advanced AI inspection, or security surveillance.

6. Is UC-511 waterproof or suitable for outdoor installation?

No. UC-511 is not waterproof and should not be used for direct rain exposure, washdown, wet industrial areas, vehicle exterior mounting, or outdoor unprotected installation. For outdoor or water-exposed projects, use an IP67 waterproof USB camera instead.

7. We like the 19×43mm micro bullet shape, but our equipment may face dust or moisture. Can we still use UC-511?

Only if the customer’s own enclosure protects the camera from water and excessive dust. UC-511 has a compact metal housing, but it is not an IP-rated waterproof camera. For semi-protected equipment, engineers should test camera placement, cable routing, lens exposure, condensation risk, and enclosure sealing before batch use.

8. We do not need IP network setup. We only need local video input to a Windows PC or Linux controller. Is UC-511 a practical option?

Yes. This is one of the better-fit cases. UC-511 can be evaluated when your equipment needs a compact external USB camera for PC-based equipment, Linux controller, test fixture, or industrial workstation, and the video only needs to be captured locally by the host software.

9. Does UC-511 support replaceable lenses, and why does that matter?

Yes. UC-511 is positioned with replaceable lens options. This matters because many equipment-camera projects fail not because of resolution, but because the FOV, working distance, distortion, target size, or mounting angle is wrong. Lens selection should be based on the real viewing task, not only on “1080P” resolution.

10. We need a 90° or 120° field of view for a compact USB camera. Can Goobuy help select the lens?

Goobuy can discuss lens and FOV options based on the project. Before selecting 90°, 120°, or another lens angle, please provide viewing distance, target size, mounting position, available space, distortion tolerance, and whether the scene needs wide-area viewing or focused detail.

11. Is UC-511 suitable for AI vision or machine vision inspection?

Usually no. UC-511 can provide video input to a host, but it is not designed as a machine vision camera with global shutter, trigger input, SDK control, calibrated measurement, or deterministic frame capture. For motion capture, barcode reading, precision inspection, or AI machine vision, another Goobuy camera platform may be more suitable.

12. Our product manager wants a “USB camera for embedded device testing,” but engineering worries about host compatibility. What should we test first?

Test UC-511 with the exact host device, operating system, application software, target resolution, video format, USB cable, power condition, and mounting position. Do not assume that “UVC camera” means every Android, Linux, or Windows host will behave the same.

13. Can Goobuy customize cable length, connector, or mounting for UC-511?

Depending on project quantity and feasibility, Goobuy can discuss cable length, connector type, lens/FOV, mounting method, housing label, packaging, or other platform-based configuration. For deeper changes such as special housing, new cable assembly, or firmware descriptor work, NRE may be required.

14. What information should we send before asking for price or samples?

Please send: application type, host device, OS, software path, USB port type, mounting position, viewing distance, required FOV, lens preference, cable length, connector requirement, available space, environment condition, sample quantity, annual forecast, and photos or drawings of the installation area.

This helps Goobuy judge whether UC-511 is suitable, or whether another camera platform is a better technical fit.

15. Who should not buy UC-511?

UC-511 is not intended for personal phone users, hobby OTG experiments, spy camera use, hidden privacy-sensitive applications, waterproof outdoor installation, AI machine vision, certified vehicle safety systems, home webcam use, or full CCTV/IP camera deployments.

CTA: Request a UC-511 Business Equipment Camera Evaluation

If your company needs a compact 19×43mm micro bullet USB UVC camera for Android industrial terminals, Linux hosts, PC-based equipment, smart cabinets, service tools, protected commercial devices, or embedded host systems, please send a project-based inquiry instead of only asking for the lowest price.

To help Goobuy evaluate whether UC-511 is suitable, please send:

host device | operating system | software path | mounting position | viewing distance | required FOV | lens preference | cable requirement | connector requirement | sample quantity | expected annual usage | photos or drawings of the installation area

Goobuy does not position UC-511 as a consumer phone OTG gadget. It is intended for business and OEM customers who need a compact housed USB camera head for real equipment projects.
