Goobuy AC-533 is an automatic heated AHD camera for cold-weather heavy equipment and off-highway machinery. Featuring a built-in temperature-controlled heater, 1080P AHD video, IP68 protection, IR night vision and a 120° wide-angle view, it helps reduce frost and condensation affecting equipment camera visibility. Typical applications include wheel loaders, dozers, excavators, motor graders, mining haul trucks and snow removal equipment operating in Canada, Alaska, Nordic countries and other cold-climate regions.

AC-533 Automatic Heated AHD Camera for Heavy Equipment
1080P Cold-Weather Camera for Loaders, Dozers, Excavators, Mining & Snow Equipment
Goobuy AC-533 is a heavy-duty heated AHD camera designed for cold-weather work-area visibility on off-highway equipment. Its built-in automatic heater helps reduce frost and condensation around the camera viewing area, while 1080P video, IR night vision and IP68 protection support equipment operation in demanding winter environments.
Automatic Heating | 1080P AHD | IP68 | IR Night Vision | 120° Wide View
Cold Weather. Automatic Heating. Better Work-Area Visibility.

1. Automatic Heating for Cold Weather
When Temperatures Drop, the Heater Turns On
Frost and condensation can reduce camera visibility during winter equipment operation.
AC-533 features an integrated temperature-controlled heater that activates automatically when the temperature drops to approximately 5°C (41°F).
The heating function helps reduce:
Frost Buildup · Lens Condensation · Light Icing
No manual heater switch is required.
Automatic heating is intended to support cold-weather camera visibility. Actual defrosting performance depends on temperature, moisture, ice accumulation and operating conditions.


2. Built for Cold-Climate Heavy Equipment
Work-Area Visibility in Freezing Weather
AC-533 is designed for equipment operating in cold, snowy and moisture-exposed environments.
Equipment    Typical Application
Wheel Loaders    Rear and work-area visibility
Bulldozers    Rear equipment observation
Excavators    Rear and side-area viewing
Motor Graders    Winter road maintenance
Mining Haul Trucks    Equipment-area monitoring
Snow Removal Equipment    Cold-weather work-area viewing
One heated camera head for existing AHD equipment video systems.


3. Designed for Cold-Climate Markets
Canada & Alaska
Mining · Construction · Snow Removal
Heated camera applications for loaders, haul trucks, excavators and winter maintenance equipment.
Nordic Countries
Mining · Forestry · Municipal Equipment
Cold-weather equipment visibility for Norway, Sweden and Finland.
Russia
Mining · Construction · Winter Equipment
Heated AHD camera applications for heavy machinery operating in prolonged winter conditions.
Cold-Climate Mining Sites
Haul Trucks · Loaders · Drill Rigs
Work-area camera applications at mining sites exposed to freezing temperatures, frost and snow.

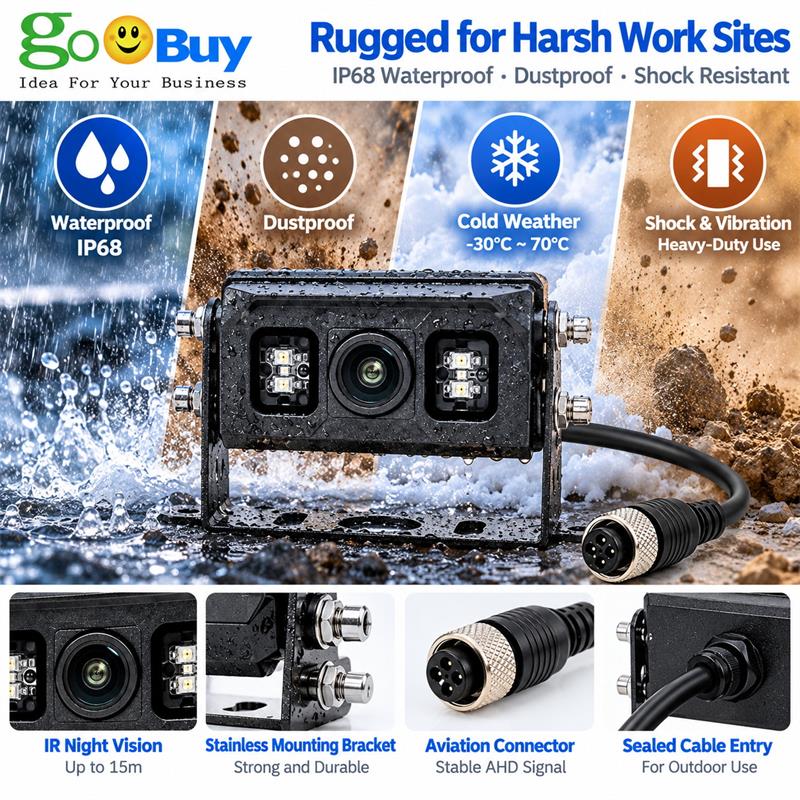

4. Heavy-Duty Camera Protection
Built for Demanding Equipment Environments
AC-533 combines automatic heating with practical heavy-equipment camera features.
IP68 Protection
Sealed camera construction for dust and water exposure under specified conditions.
1080P AHD Video
Wired high-definition video for compatible equipment monitors and mobile DVRs.
IR Night Vision
Infrared illumination for low-light equipment viewing.
120° Wide-Angle View
A practical field of view for rear, side and work-area observation.
Metal Housing
Compact construction for installation on suitable heavy equipment.

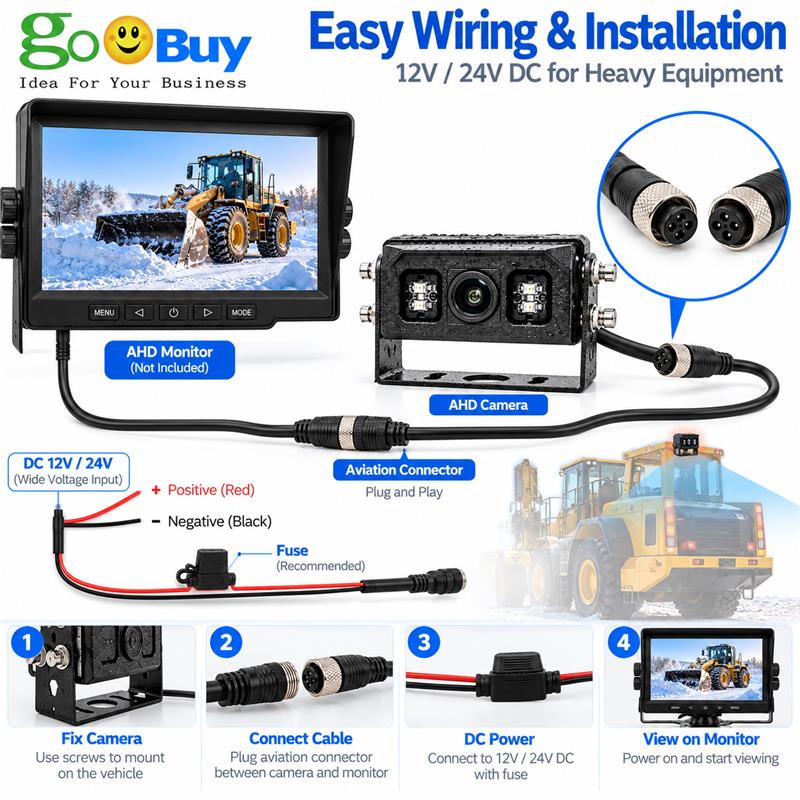

5. Works with Your Existing AHD System
Heated Camera Head — Not a Complete System Replacement
AC-533 is intended for customers who already have an AHD monitor or mobile DVR.
AC-533 Heated Camera → AHD Cable → Existing Monitor / MDVR
Available configurations include:
•    1080P AHD / 720P AHD
•    IR / No IR
•    Standard / Non-Mirror Image
•    Standard 120° / Wider-Angle Options
•    Connector and cable options
•    12V standard / 12–24V option
Video format, operating voltage, connector and pinout must be confirmed before ordering.


Technical Specifications
Specification    AC-533
Product Type    Automatic Heated AHD Camera
Video Resolution    1080P / 720P AHD
Heating System    Built-In Automatic Heater
Heating Activation    Approx. Below 5°C / 41°F
Ingress Protection    IP68
Housing    Metal
Standard Field of View    Approx. 120°
Optional Field of View    150°–170°
Night Vision    IR, approx. 15m
Standard Power    DC12V
Optional Power    12–24V
Video Output    AHD / Optional CVBS
Connector    Waterproof Connector
Applications    Heavy Equipment / Mining / Snow Equipment
Specifications refer to the previously discussed AC-533 configurations. Final options and environmental operating limits should be checked against the production datasheet.


7. Frequently Asked Questions
1. What is the Goobuy AC-533 heated camera designed for?
AC-533 is designed for cold-weather work-area visibility on heavy equipment, including wheel loaders, excavators, dozers, graders, mining machinery and snow removal equipment.

2. How does the AC-533 automatic heater work?
The integrated heater activates automatically when the temperature drops to approximately 5°C (41°F).
It helps reduce frost and condensation around the camera viewing area without requiring manual activation.

3. Can AC-533 automatically melt snow and ice?
AC-533 is intended to help reduce frost, condensation and light icing.
It should not be treated as a heavy snow-melting or guaranteed de-icing system.

4. Is AC-533 suitable for mining equipment in Canada and Alaska?
AC-533 can be evaluated for loaders, haul trucks and other mining equipment operating in cold climates.
The actual minimum operating temperature and heater performance must be verified against the intended site conditions.

5. Can AC-533 connect to an existing AHD monitor?
Yes, provided the monitor supports the selected AHD format.
Before ordering, confirm video resolution, power supply, connector type and pinout.

6. Does AC-533 support night vision?
Yes. Standard configurations include IR night vision for low-light equipment viewing.
A non-IR configuration can also be evaluated.

7. Can Goobuy supply AC-533 without IR or parking guidelines?
IR, image orientation and parking-line settings can be discussed as configuration options.
Availability depends on the selected production version.

8. Is AC-533 an IP69K heated camera?
No. AC-533 is specified as IP68.
IP68 should not be represented as IP69K high-pressure washdown protection.

About Goobuy
Goobuy supplies rugged AHD, USB and IP cameras for heavy equipment, industrial machinery and harsh operating environments.
Our AC-533 automatic heated AHD camera is designed for equipment manufacturers, installers and system integrators seeking a practical cold-weather camera for existing wired video systems.
We focus on mature camera platforms with selectable lenses, cables, connectors and video configurations.
________________________________________
Check AC-533 for Your Equipment
Tell us your equipment type, operating temperature, monitor model and connector requirements.
We can help confirm the appropriate AC-533 configuration for sample evaluation.
