A micro AHD visual evidence kit is a compact analog-HD camera and DVR monitor system for local machine troubleshooting, test fixture recording, enclosed equipment viewing, offline maintenance and long-cable inspection equipment. It is used when engineers need simple visual evidence of intermittent faults, hidden machine movement, production test behavior or service issues without IP network setup, cloud software, USB host distance limits or full machine vision architecture.
In many industrial equipment problems, the hardest part is not fixing the fault.
The hardest part is seeing the fault happen.
A feeder jams once per shift. A small actuator stops for one second. A product falls at a transfer point. A vending machine fails only after a customer uses it. A test fixture behaves normally in the lab, but fails at the customer site.
By the time the engineer arrives, the fault has disappeared.
That is where a compact AHD camera and local DVR monitor kit becomes useful.

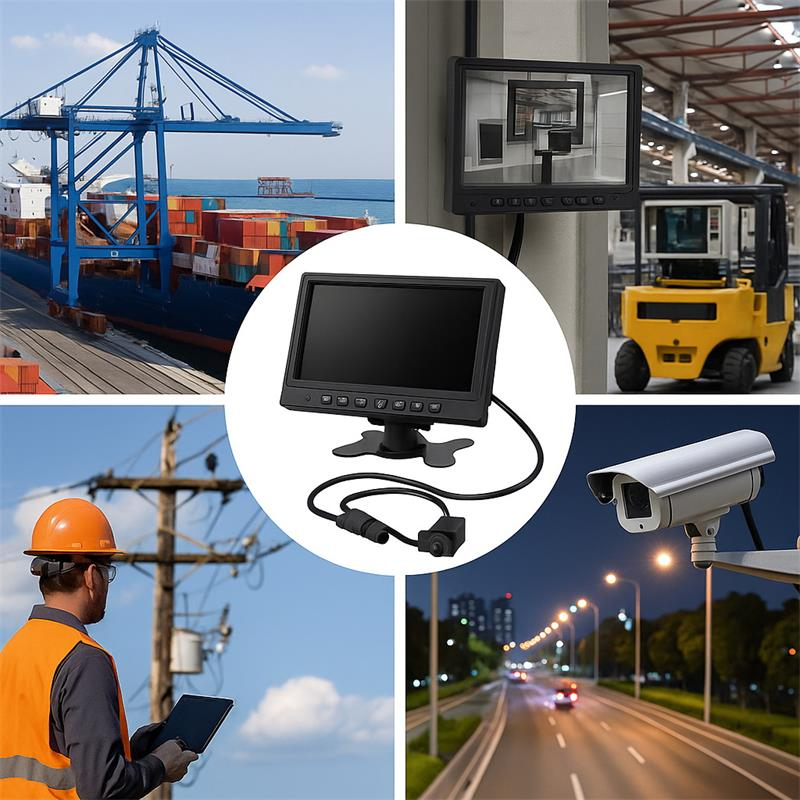

Goobuy AC-607 is an IMX323 micro AHD camera and DVR monitor kit for OEM machine builders, test engineers, field service teams and industrial integrators who need simple local visual evidence without building a full IP camera network, cloud video system or USB software capture platform.
It is not positioned as a general CCTV security kit. It is not an AI inspection camera. It is not a cloud surveillance product.
It is a compact visual evidence kit for machine troubleshooting, test fixture recording, enclosed equipment viewing, local-only maintenance recording and AHD-based inspection equipment.
| Customer Problem | Why an IMX323 AHD DVR Kit Fits |
|---|---|
| Intermittent machine faults disappear before engineers arrive | Local DVR recording can capture visual evidence near the fault point |
| A test fixture needs simple video recording | AHD camera + DVR monitor avoids PC, network or software setup |
| The camera must fit inside a machine enclosure | A compact AHD camera head can be installed near hidden mechanisms |
| The facility does not allow IP cameras or cloud accounts | Local-only DVR architecture avoids network approval |
| Existing equipment already uses AHD monitor or DVR input | IMX323 AHD camera module can support redesign or replacement |
| Field technicians need customer-side fault evidence | Portable local recording helps document before/after repair conditions |
| Pipe crawler or sewer inspection OEMs need long-cable video | AHD can be evaluated for 50m, 100m or 150m inspection cable systems |
This product is best understood as a local visual evidence tool, not a full surveillance platform.
Many U.S. manufacturers are investing in automation, but maintenance teams still face a practical problem: machines fail in ways that are difficult to reproduce.
A dashboard may show downtime. A sensor may show an alarm. A PLC log may show a stop signal. But engineers still need to know what physically happened:
For these problems, a compact local DVR camera kit can be more practical than a large IP camera system or software-heavy machine vision architecture.
The goal is simple:
record what happened, where it happened, before the evidence disappears.
For machine builders, AC-607 can be used as a machine troubleshooting camera kit during commissioning, after-sales service and customer-side fault investigation.
Many equipment problems are intermittent. A feeder jams once per shift. A small actuator stops for one second. A product falls at a transfer point. A customer reports a failure, but the service team cannot reproduce it.
AC-607 helps engineers record the hidden fault before it disappears.
Typical use cases include:
Natural search intent covered:
AC-607 can be installed inside a test fixture or near a mechanical test point to record movement during validation, burn-in, FAT/SAT testing or quality verification.
This is useful when engineers need a simple local video record but do not want to configure an IP camera or keep a laptop connected to a USB camera.
Typical use cases include:
Natural search intent covered:
For engineering teams, the value is not only live viewing. It is having time-stamped visual evidence that can be reviewed later by the design, service or quality team.
Some failures happen behind a panel, inside a guard, under a cover or within a narrow mechanical cavity.
A normal CCTV camera may be too large. An IP camera may be unnecessary. A USB camera may require a nearby PC.
The compact AHD camera head can be mounted near the hidden mechanism and connected to a dedicated DVR monitor outside the machine.
Typical mounting areas include:
Natural search intent covered:
This is a different use case from a 2mm micro endoscope. AC-607 is for compact machine viewing and local recording, not extreme micro-channel inspection.
Some factories, labs and customer facilities do not want extra IP cameras on their network. In other cases, the project is too small to justify IT approval, network setup, software installation or cloud accounts.
AC-607 provides a local AHD camera and DVR monitor architecture.
It can support:
This makes it suitable for temporary troubleshooting, restricted facilities and offline maintenance tasks.
Natural search intent covered:
If the project later requires remote cloud access, multi-site recording or IT-managed surveillance, an IP camera system may be more suitable. AC-607 is mainly designed for local visual evidence.
Some existing equipment already uses AHD monitor boards, analog-HD DVR boards or coaxial video input.
These customers do not need a complete surveillance camera. They need a compact AHD board camera module with a matching lens, cable and connector.
Goobuy can support OEM projects that require:
Natural search intent covered:
This application is especially relevant when the customer wants to keep the existing AHD architecture but reduce the camera head size or update the image sensor.
For field service teams, AC-607 can work as a portable visual recorder to document customer-side failures.
Instead of relying on customer descriptions or unclear phone videos, technicians can install the compact camera near the suspected fault point, record the operation and send the video evidence back to the engineering team.
Typical uses include:
Natural search intent covered:
A phone camera can be useful for quick documentation, but it is not always stable, fixed, repeatable or suitable for hours of equipment monitoring. A local DVR camera kit is better when the camera must stay near the machine and record the same view continuously.
Pipe crawler and sewer inspection tools often need long cable transmission, waterproof camera heads, LED lighting, local DVR recording and stable real-time viewing.
In push-rod inspection systems, the cable may be 50m, 100m or 150m. In crawler systems, the camera head may need to send video through a reel, slip-ring or rugged cable assembly.
This is exactly where AHD becomes relevant again.
USB cameras are usually limited by host distance and cable length. IP cameras require encoding, packet transmission and network-style design. For many sewer inspection camera OEMs and pipe crawler manufacturers, AHD offers a practical analog-HD path for real-time video through long cable assemblies.
AC-607 is not a finished waterproof sewer camera by itself. However, the IMX323 AHD camera core can be considered for OEM development of:
For this application, Goobuy can discuss:
Natural search intent covered:
This is a high-value OEM application, not a retail sewer camera replacement. The final product still requires waterproof housing, LED lighting, lens window, cable strain relief, sealing and field validation.
| Option | Better When | Limitation |
| AHD camera + DVR monitor | Local recording, long cable path, no network, no PC, real-time viewing | Not suitable for AI software processing or cloud surveillance |
| USB camera | A PC, Jetson, Raspberry Pi or embedded host is already available | Cable distance and host integration can become limitations |
| IP camera | Remote network monitoring, NVR recording or multi-site surveillance is required | Setup may require IP configuration, IT approval and network management |
| Phone video | Quick manual documentation is enough | Not stable for fixed long-term fault recording |
| Machine vision camera | Trigger, frame sync, OCR, barcode, AI inspection or measurement is required | Often unnecessary for simple visual evidence |
AC-607 is useful when the customer does not need a smarter camera.
They need a simple local video record of what actually happened inside the machine.
| Goobuy Camera Platform | Best-Fit Role |
| OV6946 USB Endoscope Camera | 2mm-class micro camera core for extreme micro-access inspection, turbine holes, nozzles and internal micro-channels |
| AC-602 6×6mm AHD Camera Module | Tiny embedded AHD camera head for compact equipment viewing and AHD monitor/DVR retrofit |
| AC-607 IMX323 AHD DVR Kit | Micro AHD camera + local DVR monitor for machine troubleshooting, test fixtures and visual evidence |
| AC-606 IP69K AHD Camera Monitor Kit | Rugged waterproof AHD monitor kit for washdown, coolant, pump room, parts washer and harsh exposed areas |
Related product references:
This matrix helps OEM buyers choose the correct camera platform instead of forcing one product into every inspection problem.
Do not choose AC-607 if your project requires:
For those projects, Goobuy can recommend other platforms, such as USB cameras, global shutter modules, low-light STARVIS cameras, IP69K AHD camera systems, OV6946 micro endoscope cameras or project-specific custom camera heads.
To evaluate whether AC-607 is suitable for your project, please send:
For pipe crawler, sewer inspection, drain inspection or borehole inspection projects, please also provide:
A useful RFQ should describe the real machine, the fault to be recorded, the installation space and the validation plan.
A micro AHD visual evidence kit is used to observe and record hidden machine actions, intermittent equipment faults, test fixture behavior, field service issues and long-cable inspection video. It is mainly designed for local human viewing and DVR recording, not for AI inspection or cloud surveillance.
AHD is useful when the camera must be placed farther away from the monitor or recorder than a normal USB camera allows. USB cameras usually require a nearby host computer and short cable distance, while an AHD camera monitor kit can support a simpler long-cable analog-HD video path for machine troubleshooting, pipe inspection equipment and local DVR recording.
Yes, this is one of the most relevant applications if the customer is an OEM or equipment builder. The AC-607 camera core can be evaluated for push-rod sewer inspection cameras, pipe crawler camera heads, drain inspection camera modules and industrial endoscope systems that need long cable transmission, compact camera design and local DVR monitor recording.
For real sewer use, the camera must be integrated into a waterproof camera head with LED lighting, sealing, cable strain relief and suitable connector design.
AHD is often used in long-cable inspection systems because it can transmit analog-HD video through coax-style cable assemblies without IP packet configuration or USB host distance limitations.
Actual cable distance depends on cable quality, shielding, connector design, power supply, slip-ring structure and DVR monitor compatibility. For 50m, 100m or 150m pipe inspection projects, Goobuy recommends project-based testing before mass production.
No. The standard AC-607 is not a finished waterproof sewer inspection camera. It is a compact IMX323 AHD camera and DVR monitor kit.
For sewer, drain, borehole or pipe crawler applications, Goobuy can discuss an OEM camera module or custom camera head design with waterproof housing, LED lighting, lens window, cable connector and sealing structure.
This kit can be considered for packaging machines, vending machines, dispensing systems, labeling machines, sorting equipment, test fixtures, small automation devices, pipe inspection tools, industrial endoscopes and enclosed mechanical equipment where local visual evidence is needed.
Yes. Goobuy can support OEM customization for lens field of view, cable length, connector type, monitor configuration, camera bracket, housing concept and AHD camera module integration.
For pipe inspection camera OEMs, Goobuy can also discuss compact camera core selection, LED lighting coordination, waterproof camera head structure and long-cable video testing.
Please send the application type, camera mounting position, available space, cable length, monitor size, recording requirement, lens angle, working environment, power supply, connector preference and estimated quantity.
For pipe crawler or sewer inspection projects, please also provide camera head diameter, cable length, waterproof requirement, LED lighting plan and whether you need a camera module, DVR monitor kit or complete custom camera head.
Goobuy develops and supplies camera-head solutions for OEMs and system integrators that need practical visual access inside industrial machines, harsh equipment, restricted spaces and local monitoring systems.
Our product range includes micro AHD camera modules, AHD camera DVR kits, IP69K AHD camera monitor systems, waterproof USB cameras, low-temperature USB cameras, STARVIS low-light cameras, global shutter USB cameras, thermal imaging modules, dual-spectrum camera platforms and micro endoscope camera cores.
For embedded and harsh camera projects, Goobuy focuses on the real engineering environment: installation space, cable distance, connector, lens field of view, lighting, waterproof housing, local recording, host interface, operating conditions and sample validation plan.
This makes Goobuy suitable for OEM customers who need platform-based camera configuration rather than a generic off-the-shelf camera.
The AC-607 IMX323 AHD camera DVR kit is not a general security camera article, not a cloud surveillance product and not an AI inspection solution.
It is a compact local visual evidence system for engineers who need to see and record what happened inside a machine, test fixture, service site or long-cable inspection tool.
For OEM machine builders, test engineers, field service teams and pipe inspection equipment developers, this type of micro AHD DVR kit can reduce uncertainty during troubleshooting and help turn hidden machine behavior into reviewable video evidence
