IP69K Low-Light AHD Camera Monitor System

See difficult work areas clearly in low light, mud and washdown conditions. AC-606 brings rugged wired video to heavy machinery and workboat operators.

Details

Goobuy AC-606 is an IP69K low-light AHD camera and 7-inch monitor system for heavy equipment, off-highway machinery and selected workboat or harbor equipment. It provides real-time local video of rear areas, working mechanisms, hoppers, loading zones and deck machinery in wet, muddy, dusty or washdown-prone environments without requiring an IP network or cloud connection.

Goobuy AC-606 Low-Light AHD Camera & IP69K Monitor System

Rugged Local Video for Heavy Equipment, Workboats and Wet Operating Areas

Goobuy AC-606 is a rugged low-light AHD camera and IP69K monitor system designed to give equipment operators a real-time view of working areas that are difficult to see directly from the operating position. It combines a 1080P low-light AHD camera, waterproof wired connection and rugged 7-inch local monitor for heavy equipment, off-highway machinery, workboats and selected harbor equipment operating in wet, muddy, dusty or washdown-prone environments.

1080P AHD · Low-Light Viewing · IP69K Camera & Monitor · Wired Local Video · 7" Display

See the Work Area — Even When the Environment Gets Wet and Dirty.


When a Standard Camera & Monitor Kit Is Not Enough

A camera mounted on working equipment may face much more than normal outdoor weather.

Mud can cover a loader. Aggregate dust can accumulate around a crusher. Equipment may be pressure-washed after a shift. A workboat camera may be exposed to rain, deck spray and repeated wet conditions.

At the same time, the operator may need to see an area that is hidden by the machine structure or located away from the control position.

AC-606 is designed around these two requirements:

Rugged environmental protection + real-time local operator visibility.

It is particularly relevant when the application requires:

  • IP69K camera and monitor protection

  • Low-light equipment observation

  • Wired AHD video with low latency

  • Waterproof cables and connectors

  • Local viewing without internet or cloud services

  • Camera placement close to the actual working area


Heavy Equipment Camera System for Harsh Jobsite Conditions

Low-Light Work-Area Visibility for Off-Highway Machinery

AC-606 is suited to equipment where the camera or monitor may be exposed to water, mud, dust and regular exterior cleaning.

Mobile Crusher & Aggregate Equipment

Hopper and material-flow observation

A camera can be positioned toward a hopper, feed area, conveyor transfer point or other difficult-to-see equipment location.

Typical environments:

Quarry · Aggregate Plant · Mobile Crusher · Screening Equipment · Conveyor System


Wheel Loader

Rear and work-area observation

Large tires, bodywork, attachments and material piles can restrict direct visibility around a wheel loader.

AC-606 can provide a dedicated local view of a selected rear, side or working area, particularly where mud, rain and equipment washing make environmental protection important.

Front-End Loader Camera · Wheel Loader Camera · Quarry Equipment Camera


Excavator & Material Handler

Rear, side and equipment-area viewing

The camera can be positioned near a selected rear, side, boom-side or material-handling area while the operator views the image from the local monitor.

Suitable for selected:

Excavators · Scrap Handlers · Material Handlers · Waste Equipment


Drill Rig & Specialized Equipment

Observe a working mechanism away from the operator

Drill rigs and specialized mobile equipment may require a fixed camera view of a mast, tool area or other equipment location that cannot be clearly seen from the operating station.

The low-light camera is useful where the working area remains shaded or operates during changing light conditions.


Why Low-Light Performance Matters on Working Equipment

The Work Area Is Not Always in Full Daylight

Equipment cameras frequently look into:

  • shaded machinery areas

  • hoppers and equipment structures

  • early-morning or evening jobsites

  • poorly illuminated loading areas

  • workboat deck machinery after dark

AC-606 uses a 1080P low-light AHD camera to maintain useful operator visibility when available light is limited.

Low-light capability should not be confused with thermal imaging or complete-darkness imaging. Actual performance depends on available illumination, lens selection, camera position and the scene being observed.


IP69K Camera & Monitor for Wet, Muddy and Washdown Areas

A rugged camera alone does not solve the complete installation problem.

The monitor, connectors and cable system also matter.

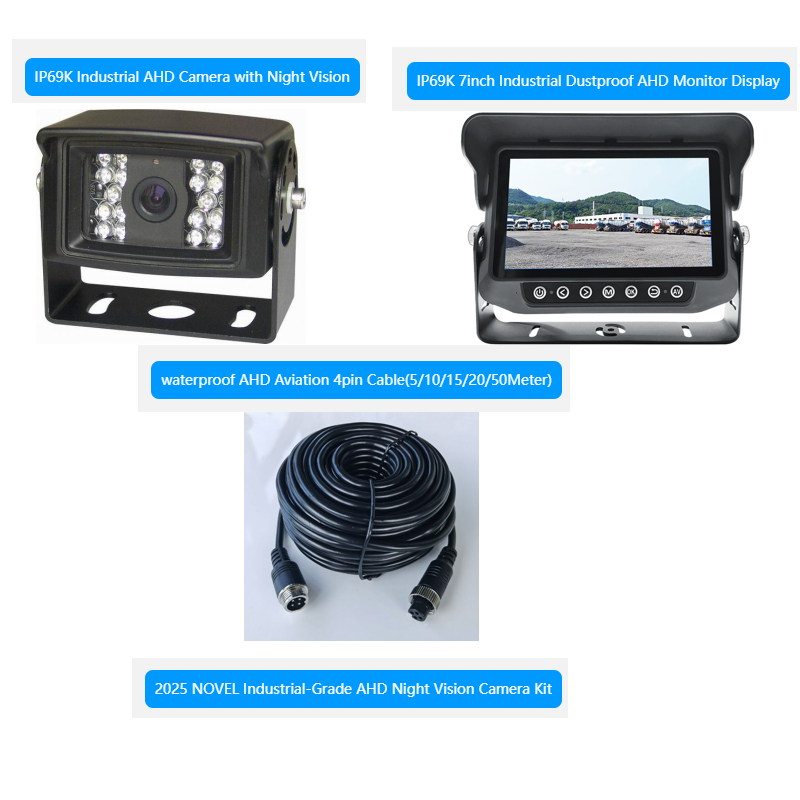

AC-606 combines:

Component AC-606 Platform
Camera 1080P Low-Light AHD
Camera Protection IP69K

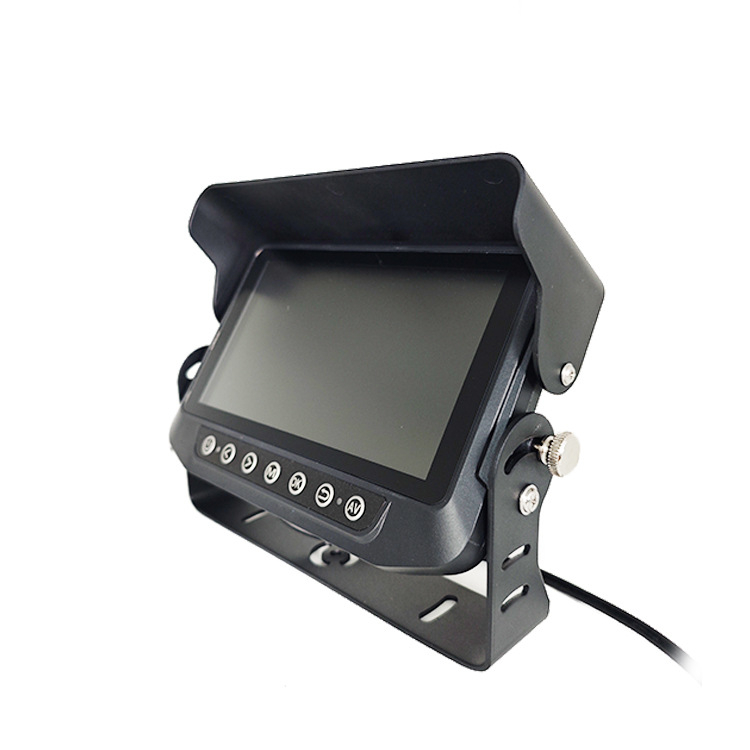

Monitor 7" Rugged AHD Display
Monitor Protection IP69K
Video Wired AHD
Cable Waterproof Shielded Cable
Connector Waterproof Connector
Viewing Real-Time Local Display
Network Not Required

This makes AC-606 different from a conventional in-cab camera kit where the display is intended only for a protected cab environment.


Workboat & Harbor Equipment Camera System

Local Video Where the Operator Cannot See the Deck Machinery

The same visibility problem found on heavy equipment also occurs on working vessels:

The operator is at the control position, while the machinery being operated is somewhere else.

AC-606 can be evaluated for selected workboat and harbor equipment applications where a rugged local wired camera system is more appropriate than a network surveillance system.

Winch & Reel Observation

Position the camera toward a:

Winch · Cable Drum · Reel · Rope-Handling Area

The operator receives a direct local view on the 7-inch monitor without requiring an NVR, VMS or IP network.

Working Deck & Deck Machinery

Useful for observing selected:

Deck Machinery · Hydraulic Equipment · Working Deck Areas · Lifting Equipment

Loading & Material-Handling Areas

A camera can add visibility around selected loading, unloading or material-transfer areas on workboats, barges and harbor service equipment.

Commercial Working Vessels

Potential applications include selected:

Workboats · Utility Vessels · Harbor Service Vessels · Commercial Fishing Work Areas

AC-606 is intended for equipment observation and operator viewing. It is not a certified navigation, collision-avoidance or fisheries-compliance camera system.


Heavy Equipment and Workboats Share the Same Visibility Problem

A wheel-loader operator may need to see a hopper.

An excavator operator may need to see behind the counterweight.

A material-handler operator may need to observe the working area.

A workboat operator may need to see a winch or deck mechanism.

In each case:

Operator Position ≠ Required Camera Viewpoint

AC-606 moves the camera viewpoint closer to the work and brings the live image back to the operator through a rugged wired AHD system.


Why Wired AHD for Local Equipment Viewing?

Not every equipment camera needs Ethernet, software or cloud connectivity.

Low-Latency Local Video

AHD provides a direct wired video path between the equipment camera and monitor.

No IP Network Required

No IP address, NVR, network switch, cloud account or software configuration is required for normal local viewing.

Long Equipment Cable Runs

A wired camera can be positioned away from the operator station using an appropriate shielded equipment cable.

Practical Field Replacement

Camera, cable and monitor remain separate system components that can be evaluated and serviced individually.

For network recording, remote monitoring or NVR/VMS integration, a PoE network camera platform is more appropriate.

Goobuy AC-606 is an IP69K low-light AHD camera and 7-inch monitor system for heavy equipment, off-highway machinery and selected workboat or harbor equipment that needs real-time local visibility in wet, muddy, dusty or washdown-prone operating environments. The wired system places a rugged camera near the working area and returns live video directly to the operator without requiring an IP network, computer or cloud service.

Is AC-606 the Right System for Your Equipment?

A Good Potential Fit

Choose AC-606 for applications requiring:

  • IP69K heavy equipment camera system

  • Low-light AHD camera with waterproof monitor

  • Wet or muddy off-highway equipment

  • Quarry and aggregate machinery

  • Mobile crusher or material-handling equipment

  • Equipment exposed to regular exterior washdown

  • Workboat deck machinery observation

  • Winch or reel camera viewing

  • Harbor equipment local monitoring

  • Real-time local video without an IP network

Consider Another Camera Platform When You Need

Two-camera general heavy-equipment retrofit
→ Consider the Goobuy AC-608 heavy equipment camera and monitor kit.

NVR / VMS / Ethernet network monitoring
→ Use a Goobuy PoE camera platform.

Stainless steel AHD camera for a corrosion-prone location
→ Consider the Goobuy AC-616S stainless steel AHD camera.

Continuous underwater operation
→ AC-606 is not an underwater camera system.

Certified marine navigation or safety-critical viewing
→ AC-606 is not certified for these functions.

Hazardous or explosion-rated areas
→ AC-606 does not provide ATEX or IECEx certification.


Important Note for Marine & Harbor Installations

IP69K protection and marine corrosion resistance are not the same requirement.

AC-606 is suitable for evaluation where the camera system faces water, rain, deck spray, mud or washdown, but its standard housing should not automatically be treated as suitable for continuous seawater exposure or severe long-term chloride environments.

For corrosion-prone marine locations, housing material and environmental exposure should be evaluated separately.

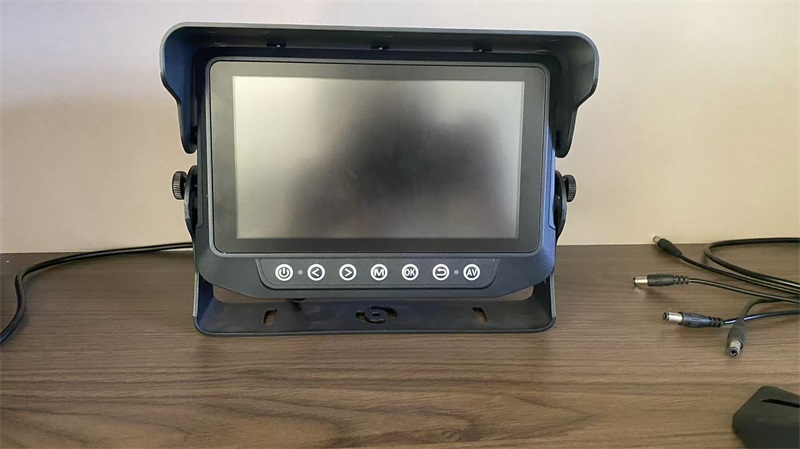

online raw test video of IP69K weatherproof monitor in machine 05.06.2022

Product Advantages at a Glance



Technical Specifications

AC-606 Technical Specifications

Specification AC-606
Product Type Rugged AHD Camera & Monitor System
Camera Resolution 2MP / 1080P
Video Signal AHD
Camera Capability Low-Light Imaging
Camera Protection IP69K
Monitor 7-inch Rugged AHD Monitor
Monitor Resolution 1024 × 600
Monitor Protection IP69K
Monitor Inputs Up to 4 AHD Inputs
Monitor Power DC 12–36V
Video Architecture Local Wired AHD
Cable Shielded Waterproof Cable
Cable Options 5m / 10m / 15m
Connector Waterproof Equipment Connector
Camera Lens 110° Standard; Other Options Subject to Review
Camera Temperature -30°C to +70°C
Primary Markets Heavy Equipment / Off-Highway / Workboat / Harbor Equipment

Final configuration should be confirmed according to the selected camera, monitor, cable, connector and installation environment.







About Goobuy

Goobuy supplies rugged camera platforms for heavy equipment, off-highway machinery, workboats, harbor equipment and other harsh operating environments.

Our approach is to start with mature AHD, USB, PoE, low-light and stainless steel camera platforms, then configure practical details such as lens, cable, connector, housing and mounting around the customer's equipment rather than beginning with unnecessary custom electronics development.

Rugged Camera Platforms for the Places Where Equipment Actually Works.

Configure AC-606 Around the Actual Working Area

Before selecting the system, define:

Machine / vessel type
Area the operator needs to see
Camera mounting location
Camera-to-monitor distance
Day / night / low-light condition
Water, mud or washdown exposure
Required field of view
Equipment supply voltage
Required cable length
Connector requirement

Goobuy starts from the existing AC-606 rugged AHD platform and evaluates practical lens, cable, connector and mounting configurations around the actual equipment installation.
