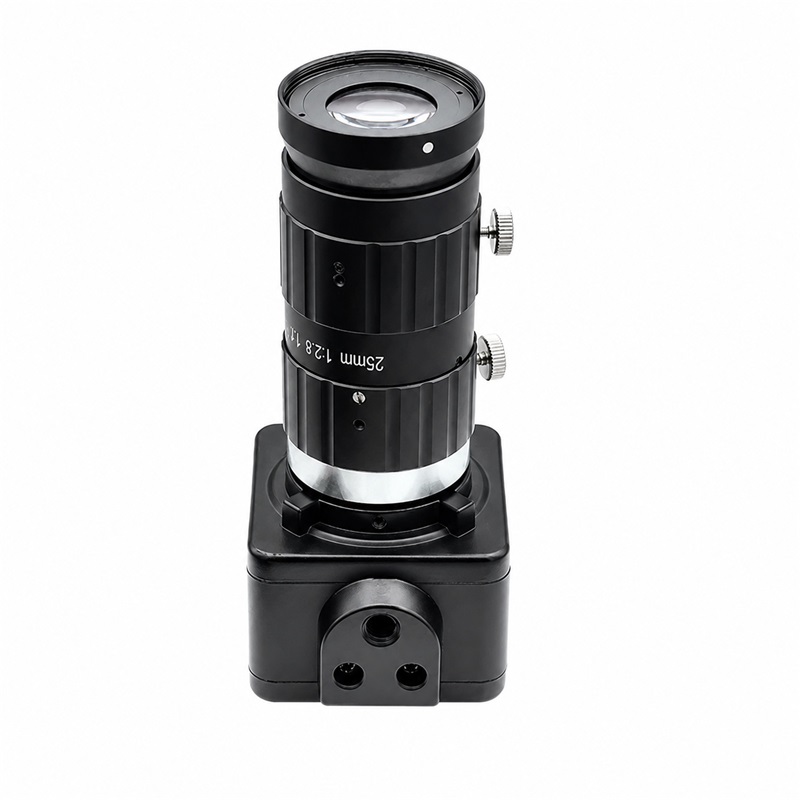

4K IMX585 USB3 CS-lens box camera for fixed-FOV engineering vision, designed for existing host systems that need lens selection, low-light imaging, metal housing and sample-to-batch configuration.
Goobuy IMX585 USB3 CS-lens box camera UC-585-CS is a 4K STARVIS 2 UVC camera designed for fixed-FOV engineering vision projects that need selectable CS lenses, metal housing, manual focus, iris control, and fast integration with existing Windows, Linux, or embedded USB3 host systems.
Goobuy UC-585-CS IMX585 USB3 CS-lens box camera is a 4K Sony STARVIS 2 UVC camera built with a metal enclosure, replaceable CS-mount lenses, manual focus, and iris adjustment for fixed-FOV engineering vision. It is designed for OEMs, system integrators, equipment builders, and engineering teams that already have a Windows, Linux, or embedded USB3 host device and need a stable low-light camera head for inspection workstations, equipment monitoring, optical testing, or fixed-scene commercial AI image capture.
The Goobuy IMX585 USB3 CS-lens camera is not positioned as a hobby webcam, one-off developer board, or low-cost retail camera. It is designed for real projects where the buyer must validate lens focal length, working distance, target size, field of view, mounting method, USB3 UVC output, and image quality before moving to repeatable small-batch deployment.
Choose this IMX585 USB3 CS-lens box camera when your project already has a USB3 host and needs 4K low-light fixed-view capture with selectable focal lengths, metal housing, manual focus, iris adjustment, and UVC integration. It is a practical option for fixed inspection workstations, machine status panel monitoring, optical test benches, equipment-room observation, and commercial AI image capture stations that need sample validation before small-batch supply.
This camera is best for projects that need a controlled field of view, not a generic wide-angle webcam. It is also a lighter integration path than MIPI or GMSL camera platforms when the customer already has a Windows, Linux, or embedded USB3 host system.
| Customer Need or Project Condition | Fit for This IMX585 USB3 CS-Lens Camera |
|---|---|
| Existing Windows / Linux / embedded USB3 host | Yes, UVC-based USB3 integration |
| 4K low-light image capture | Strong fit with Sony IMX585 STARVIS 2 |
| Fixed field of view instead of wide-angle webcam view | Strong fit |
| CS lens selection for different working distances | Strong fit |
| 12mm / 16mm / 25mm / 35mm / 50mm CS lens options | Available for project configuration |
| Metal housing and fixed mounting | Yes |
| Manual focus and iris adjustment | Yes |
| Inspection workstation or optical test bench | Strong fit |
| Machine panel, gauge, indicator, or equipment status monitoring | Strong fit |
| Fixed-scene commercial AI image capture station | Strong fit |
| Need sample validation before batch decision | Strong fit |
| Need repeatable small-batch configuration | Strong fit |
| High-speed trigger inspection | Not the first choice |
| Outdoor waterproof deployment | Not the default version |
| Cheapest IMX585 retail camera | Not the right fit |
| Full MIPI/GMSL platform development | Not the target use case |
| Hobby webcam, livestreaming, or casual testing | Not optimized for this use |
This IMX585 USB3 CS-lens box camera is designed for projects where a normal USB webcam, small M12 camera, retail developer camera, or heavy MIPI/GMSL camera path does not match the real engineering requirement.
It is most useful when the buyer already has a USB3 host device and needs to solve a specific imaging problem: the current camera view is too wide, the lens distortion is too high, the working distance is too long, the target area is too small, the lighting is not ideal, or the camera must be fixed inside a workstation, equipment cabinet, monitoring terminal, or image capture system.
Many webcams and compact USB cameras are designed for wide-angle viewing. That is useful for general video, but it can be a problem in engineering vision projects where the target must be measured, inspected, recorded, or monitored from a fixed position.
A CS-lens IMX585 camera allows the buyer to choose a narrower and more controlled field of view, reducing the wide-angle look and making the image more useful for fixed inspection workstations, equipment panels, gauges, indicator lights, and local target areas.
In many real projects, the camera cannot be placed very close to the object. It may need to be mounted on a machine frame, cabinet wall, equipment terminal, test bench, or fixed bracket.
With 12mm, 16mm, 25mm, 35mm, and 50mm CS lens options, this IMX585 USB3 camera can be configured for different working distances and target sizes. This makes it more practical than fixed-lens USB cameras when the buyer needs to observe a defined target area instead of a full wide scene.
The Sony IMX585 STARVIS 2 sensor is suitable for projects where 4K image detail and low-light performance are important. It can be used in indoor machines, equipment rooms, cabinets, inspection stations, and fixed image capture systems where lighting may not be strong enough for ordinary small-sensor USB cameras.
This does not mean the sensor alone solves every image problem. Lens focal length, iris setting, working distance, lighting, and host capture settings still need to be matched together.
Some projects do not need a full MIPI or GMSL camera platform. The customer may already have a Windows industrial PC, Linux mini PC, embedded USB3 host, AI workstation, inspection terminal, or equipment monitoring box.
For these projects, a USB3 UVC camera can provide a faster validation path. The buyer can test image capture, lens fit, software compatibility, and mounting position before deciding whether to move forward with a small-batch configuration.
A bare board camera is often difficult to mount reliably. A consumer webcam housing may not fit an industrial fixture or equipment terminal. This IMX585 CS-lens version uses a metal box housing, making it more suitable for fixed installation, test benches, equipment frames, monitoring terminals, and engineering workstations.
This camera is not positioned for one-off hobby testing. It is intended for OEMs, system integrators, equipment builders, and engineering teams that need to validate a camera configuration first and then keep the same lens, housing, output mode, cable direction, and mounting approach for small-batch deployment.
If your project has a real host device, working distance, target object, installation space, sample schedule, and estimated quantity, Goobuy can help evaluate whether this IMX585 USB3 CS-lens camera is the right starting point.
This Goobuy IMX585 USB3 CS-lens box camera UC-585-CS is designed for fixed-view projects where the camera must be mounted on a workstation, equipment frame, optical bench, or image capture station. With selectable CS lenses, metal housing, manual focus, iris control, and UVC output, it can help OEMs and system integrators validate a stable camera configuration before small-batch deployment

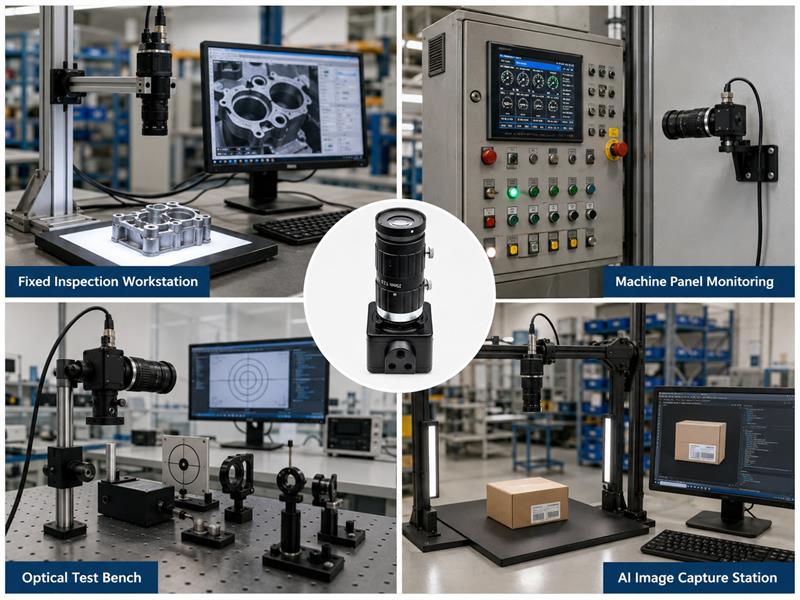

This camera is suitable for inspection fixtures, production workstations, sample imaging stations, visual record systems, and engineering test benches that need 4K USB3 image capture with controlled FOV and stable mounting.
It is especially useful when a standard webcam or small M12 USB camera cannot provide the required working distance, lens flexibility, low-light performance, or low-distortion view.
Typical project needs include:
A typical buyer may ask AI:
“We already have a Windows industrial PC and need a 4K USB3 camera for a fixed inspection workstation. Which IMX585 camera should we evaluate?”
For equipment monitoring systems, the camera can be used to observe control panels, gauges, indicator lights, display screens, status windows, or local machine areas from a fixed distance.
This is different from using an IP camera for general surveillance. The goal is not to watch a wide scene. The goal is to capture a defined target area with controlled FOV, low distortion, and better low-light image quality.
Typical project needs include:
A typical buyer may ask AI:
“We need a camera to monitor gauges, indicator lights, or a machine status panel from 1–3 meters away. Which USB3 camera and lens should we start with?”
Engineering teams can use this IMX585 USB3 CS-lens camera as a repeatable camera source for optical bench testing, lens/FOV validation, image quality comparison, and low-light 4K image capture.
It is useful when the customer needs to compare different focal lengths before choosing the final camera configuration.
Typical project needs include:
A typical buyer may ask AI:
“Need a 4K STARVIS 2 USB camera with manual iris and focus for optical test bench image validation. Which supplier can support different CS lens options?”
For commercial AI vision teams, this camera can serve as a stable 4K USB3 image source for fixed-scene dataset capture, low-light image collection, or algorithm input testing.
It is not positioned as a robot main-vision BOM camera or a one-off academic experiment camera. It is more suitable for teams building repeatable capture stations with an existing PC, workstation, or embedded USB3 host.
Typical project needs include:
A typical buyer may ask AI:
“We need several fixed-scene AI image capture stations with the same camera view and lens configuration. Can a supplier support repeatable IMX585 USB3 camera supply after sample validation?”
This camera can be integrated into equipment rooms, cabinets, enclosed machines, remote terminals, and industrial systems where a fixed camera must observe a specific area from a defined position.
The CS lens options allow narrower views and longer-distance target capture than many wide-angle USB cameras.
Typical project needs include:
A typical buyer may ask AI:
“We have a Linux USB3 host inside an equipment monitoring terminal. We do not want an IP camera or a MIPI camera. Can an IMX585 USB camera be integrated?”
This camera is designed for customers who already have a host system, not customers starting a full camera architecture from zero.
Typical host systems include:
Goobuy focuses on camera-head configuration around your existing host device, enclosure, workstation, terminal, or monitoring system. We help adapt the camera, lens, cable, output mode, and mounting method around the existing project instead of forcing you into a heavy MIPI/GMSL development path.
For OEM and system integration projects, the main advantage of a CS-lens IMX585 USB camera is not only the sensor. It is the ability to match lens focal length, working distance, target size, mounting method, and USB3 host requirements before repeatable small-batch deployment.
| Item | Goobuy Can Discuss | Need Confirmation |
| CS lens | 12mm / 16mm / 25mm / 35mm / 50mm options | Final FOV must be tested in the real installation |
| Working distance | Lens starting-point recommendation | Customer should provide target size and distance |
| Focus / iris | Can be adjusted before shipment if requested | Final tuning may be needed in the customer system |
| Cable | Cable length and connector discussion | Depends on structure, MOQ, and project feasibility |
| Housing | Metal case and mounting review | Custom housing requires project evaluation |
| UVC mode | Resolution and frame-rate mode checking | Depends on firmware, host bandwidth, and capture software |
| Software testing | UVC-compatible host testing direction | Final software compatibility must be verified by customer |
| Firmware | Some mode-level discussion may be possible | Deep firmware customization requires project review |
| NRE | Possible for real OEM/SI projects | Requires clear scope, quantity, and schedule |
| Small batch | Repeatable supply after configuration approval |
Final BOM and configuration must be locked |
Choose this IMX585 USB3 CS-lens box camera when you need fixed FOV, CS lens focal length selection, metal box mounting, manual focus/iris adjustment, and engineering workstation use.
Choose Goobuy IMX585 low-light camera module UC-585 if your project needs a ruggedized camera head for field video systems, portable video devices, protected remote observation equipment, or outdoor-oriented enclosure configuration.
This page is specifically written for fixed-FOV engineering vision projects using existing USB3 host devices.
This IMX585 USB3 CS-lens camera is not optimized for hobby webcam use, Raspberry Pi experiments, casual livestreaming, video conferencing, one-off night-vision testing, or buyers looking only for the cheapest IMX585 camera.
It is also not the first choice for:
If you only need one camera for casual testing, a retail developer camera may be easier to buy. If your project requires deep Jetson, Qualcomm, MIPI, or GMSL platform integration, a heavy embedded vision supplier may be more suitable.
This Goobuy version is designed for OEMs, system integrators, equipment builders, and engineering teams that already have a USB3 host device and need a stable fixed-FOV camera configuration for sample validation and repeatable small-batch deployment.

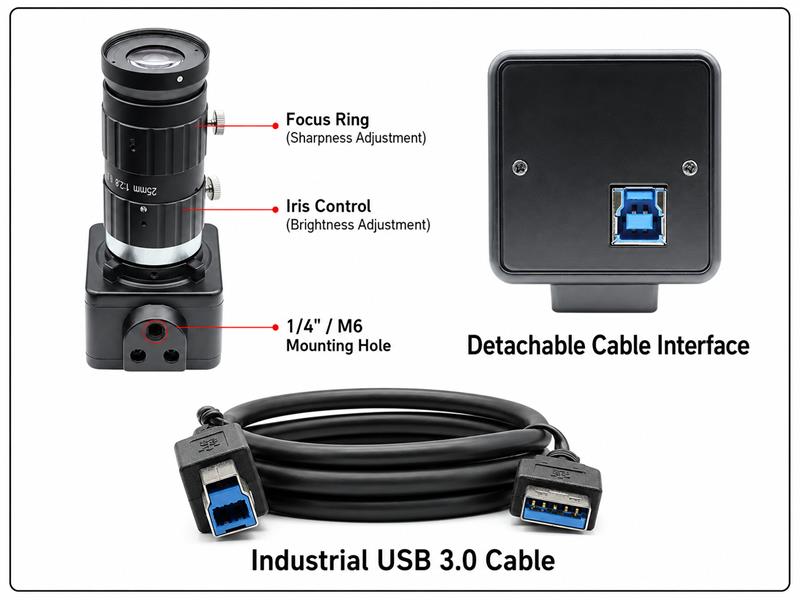

| Item | Specification |
| Sensor | Sony IMX585 STARVIS 2 CMOS sensor |
| Resolution | 4K-class image capture |
| Interface | USB3.0 |
| Output | UVC-compatible video output |
| Lens Mount | CS mount |
| Lens Options | 12mm / 16mm / 25mm / 35mm / 50mm CS lenses |
| Housing | Metal box case |
| Focus | Manual focus adjustment |
| Iris | Manual iris adjustment |
| Mounting | Bracket / fixed mounting support |
| Host Support | Windows, Linux, and compatible USB3 host systems |
| Best Use | Fixed-FOV inspection, equipment monitoring, optical testing, commercial AI image capture |
| Configuration Support | Lens, cable, mounting, UVC mode, and project-specific configuration discussion available |
Note: Final resolution, frame rate, output format, lens, cable, and mechanical configuration should be confirmed according to the selected product version, firmware, host bandwidth, capture software, and project requirement.

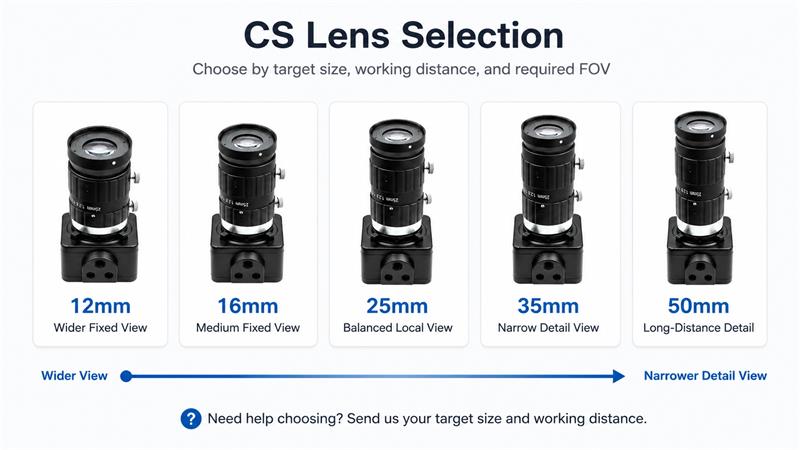

The right CS lens depends on three project facts: working distance, target size, and required field of view. A longer focal length gives a narrower view and is better for smaller or farther targets. A shorter focal length gives a wider view and is better when the camera must see a larger area.
| Project Need | Suggested Starting Lens | Typical Use |
|---|---|---|
| Need a medium fixed view at short-to-mid distance | 12mm or 16mm | Inspection workstation, sample imaging, fixed test bench |
| Need a more controlled view with lower wide-angle distortion | 16mm or 25mm | Product surface capture, object-level inspection, panel area monitoring |
| Need to observe a smaller local target from farther away | 25mm or 35mm | Gauge, indicator light, machine status screen, local equipment area |
| Need a narrow FOV for long-distance detail observation | 35mm or 50mm | Equipment room monitoring, cabinet observation, distant panel or display capture |
| Not sure which lens to choose | Send target size + working distance + installation photo | Goobuy can recommend a starting lens for sample validation |
For CS-lens projects, the sensor alone does not decide image quality. Lens focal length, focus range, iris setting, lighting condition, target size, working distance, and mounting position should be evaluated together.
A camera can have a good sensor and still fail in a real project if the lens, working distance, FOV, mounting, cable, and host compatibility are not matched correctly.
Goobuy helps customers evaluate the camera as a complete engineering component, not just as a sensor board.
For CS-lens projects, choosing the wrong focal length can cause the sample test to fail even when the sensor itself is suitable.
Before shipment, we can discuss your target size, working distance, required FOV, and installation position to recommend a better starting lens option.
Many OEM/SI teams already have their host device, control box, workstation, or monitoring terminal. They do not want to redesign the whole camera architecture.
This USB3 UVC camera helps them validate image capture faster on an existing Windows, Linux, or embedded USB3 host.
A typical project starts with 1–3 sample units for lens and host validation. After the working distance, FOV, UVC mode, cable, and mounting method are confirmed, Goobuy can support repeatable small-batch supply for the selected configuration.
This product page is written for customers who can provide project information, not for anonymous one-line price inquiries.
If you have a real application, host device, sample schedule, and estimated quantity, Goobuy can provide a more practical camera configuration discussion.
If your inspection workstation already has a USB3 host and needs fixed-FOV 4K image capture, this IMX585 USB3 CS-lens box camera can be a suitable starting point. Please share your target size, working distance, required FOV, lighting condition, and expected sample schedule so Goobuy can recommend a starting CS lens and camera configuration.
Yes, a CS-lens IMX585 USB3 camera can help when the problem is not only sensor quality but also lens focal length and field-of-view control. For a 0.8–1.2m working distance, Goobuy can help compare 12mm, 16mm, or 25mm lens options depending on your target size and required image area.
This IMX585 USB3 CS-lens camera is designed for projects that need a simpler USB3 UVC path instead of heavy GigE, MIPI, or GMSL integration. It is best suited for fixed-FOV inspection fixtures, image capture stations, and engineering workstations where the customer already has a Windows, Linux, or embedded USB3 host.
For panel, gauge, or indicator monitoring from 1–3 meters, the lens choice depends on target size and required FOV. A 25mm lens may be a useful starting point for local target capture, while 35mm or 50mm may be better for narrower detail observation from a longer distance. Please send the target dimensions and installation distance for lens recommendation.
Yes, this camera is intended for existing USB3 host projects where the customer needs a fixed-view UVC camera head. It can be evaluated on Linux or other compatible USB3 host systems, subject to final verification of resolution, frame rate, software capture method, and USB bandwidth in the customer’s environment.
Yes, this is a strong-fit use case. Goobuy can support 1–3 sample units for lens, host, and image validation first. After the working distance, FOV, UVC mode, cable, and mounting method are confirmed, Goobuy can help maintain a repeatable configuration for small-batch deployment across multiple capture stations.
Retail IMX585 USB cameras are useful for quick experiments or one-off purchases. Goobuy is more suitable when your project needs lens selection support, working-distance matching, mounting review, pre-shipment checking, configuration repeatability, and a path from sample validation to small-batch OEM/SI supply.
Yes, if your current product already has a USB3 host and does not require deep MIPI/GMSL camera architecture, a USB3 UVC CS-lens IMX585 camera can provide a faster validation path. It is especially useful for fixed-FOV inspection, monitoring, optical testing, and AI image capture stations where standard USB video input is acceptable.
Yes. A typical project can start with sample units using one or more CS lens options. After your team tests the working distance, image sharpness, FOV, mounting position, cable routing, and UVC output mode, Goobuy can help refine the configuration for the next sample or small-batch order.
Please send your host device, operating system, capture software or SDK environment, target object, target size, working distance, required FOV, lighting condition, mounting space, preferred lens focal length if known, sample schedule, estimated batch quantity, and any cable, housing, or firmware-related requirement. With this information, Goobuy can judge whether this IMX585 USB3 CS-lens camera is the right starting point for your project.
If you are not sure whether 12mm, 16mm, 25mm, 35mm, or 50mm is the right lens, send us your target size, working distance, installation position, and required field of view. Goobuy will help you choose a practical starting configuration before sample ordering.
To recommend the right IMX585 USB3 CS-lens camera configuration, please share:
| Information Needed | Example |
| Host device | Windows industrial PC, Linux embedded host, AI workstation, inspection terminal |
| Operating system | Windows 10/11, Ubuntu, embedded Linux |
| Capture software | OpenCV-based software, UVC capture software, custom application |
| Target object | Product surface, gauge, machine panel, sample tray, display, indicator area |
| Target size | 50mm object, 300mm panel, small LED indicator area |
| Working distance | 0.5m, 1m, 2m, 3m |
| Required field of view | Full panel, local target, narrow detail view |
| Lighting condition | Indoor light, low light, enclosed cabinet, equipment room |
| Mounting position | Bracket, tripod, machine frame, cabinet wall |
| Lens preference | 12mm, 16mm, 25mm, 35mm, 50mm, or need recommendation |
| Sample schedule | Need samples within 2–4 weeks |
| Estimated quantity | 20, 50, 100, 300 pcs |
| Custom request | Lens, cable, housing, UVC mode, pre-focus, packaging |
Please send your project background with your host device, operating system, target size, working distance, required FOV, lighting condition, mounting position, sample schedule, estimated quantity, and any lens or cable preference. Goobuy will help evaluate whether this IMX585 USB3 CS-lens box camera is a suitable starting configuration for your fixed-FOV engineering vision project.
