The Ruggedized IMX585 4K Low-Light UVC Camera Head goobuy UC-585 is designed for product teams that already have a portable video encoder, mobile command box, field streaming kit, public safety video system or protected remote observation enclosure — and need a reliable low-light USB camera input without redesigning the host hardware.

Built around Sony’s IMX585 STARVIS 2 sensor, this camera can be supplied as a board-level IMX585 USB module or as a ruggedized low-light camera head with aluminum housing, screw-locking USB cable, lens options and project-based mounting support.

This is not just another IMX585 board for lab testing. It is intended for OEM teams and system integrators who need a repeatable camera configuration for real field evaluation, sample testing and small-batch deployment.

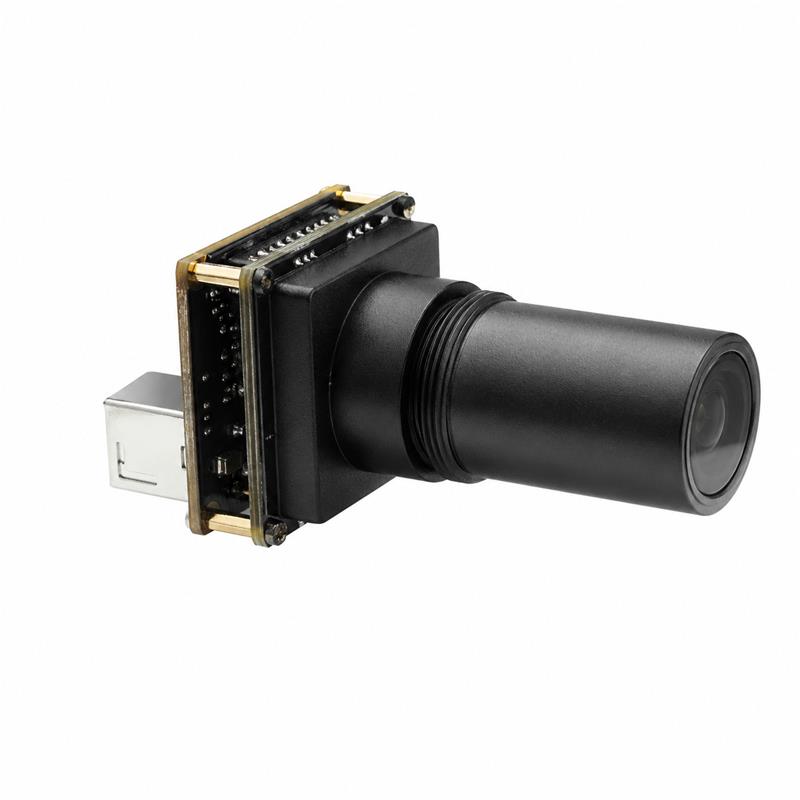

Ruggedized IMX585 4K Low-Light UVC Camera Head
USB3.0 STARVIS 2 camera for portable video encoders, emergency response kits and protected field video systems.

Already Have the Host Device? We Help You Choose the Right Camera Configuration.

Many customers do not need a full camera development project. They already have the main device:

• a portable video encoder
• a Windows Toughbook or Getac-based command kit
• a Linux field streaming box
• a 4G/5G remote video enclosure
• a battery-powered field recording unit
• a public safety communication system
• a protected observation box
• a USB video capture or UVC-compatible host system

The real problem is choosing the right low-light camera head, lens, cable, connector and mounting method for the first test.

Goobuy helps reduce sample selection risk. Tell us your host platform, target FOV, lighting condition, cable length and mounting space. We will recommend a practical IMX585 USB camera sample configuration instead of asking you to choose blindly from dozens of lens and cable options.

What Problem Does Goobuy UC-585 UVC Camera Solve?

Ordinary USB webcams are easy to test, but they often fail when the project moves from the office to real field conditions.

Typical problems include:

• poor image detail under weak emergency lighting
• noisy video in dim warehouses or temporary field sites
• unstable USB connection during movement or setup
• wrong lens choice for target distance
• cable length or connector direction not fitting the enclosure
• uncertainty about 4K MJPG decoding on the host device
• sample test passing in the lab but failing inside the final housing

This IMX585 UVC camera head is designed for teams that need better low-light image capture than standard webcams, while still keeping the simplicity of USB3.0 and UVC video input.



Best-Fit Customer Scenarios
Portable Video Encoders and Field Streaming Kits
For manufacturers of portable video encoders, streaming kits and field recording systems that already support USB camera input or UVC webcam input.
This camera can be evaluated as an external or semi-embedded 4K low-light camera head connected to the host encoder.

Emergency Response Command Boxes
For mobile command boxes, incident response kits and temporary command-post video systems that need fast visual input without complex IP camera setup.
The camera can be tested with UVC-compatible Windows systems, OBS, standard camera applications or Linux capture pipelines depending on the host device.

Protected Remote Observation Enclosures
For battery-powered or solar-powered field enclosures using a Linux computer, industrial mini PC, 4G/5G router or video streaming unit.
This IMX585 camera head can be evaluated where a protected enclosure needs a better low-light visual input than ordinary small-sensor USB cameras.

Public Safety and Field Video Systems
For public safety communication equipment, temporary field video kits and protected observation systems that need a COTS-style USB camera accessory.
This product is not a network camera. It has no Wi-Fi, no cloud service, no onboard AI analytics and no internal video storage by default. It works as a camera hardware input for the customer’s host system.

Built for Field Evaluation, Not Just Lab Development
The camera can be configured beyond a bare board-level module.
Available field-oriented options may include:
•    aluminum housing
•    screw-locking USB3.0 cable
•    IP65/IP67 enclosure design option
•    selected wide-angle, low-distortion or CS lens
•    1m, 2m, 3m or project-based cable length
•    cable exit direction discussion
•    1/4-20 mounting point or bracket discussion
•    enclosure-fit support for protected camera placement

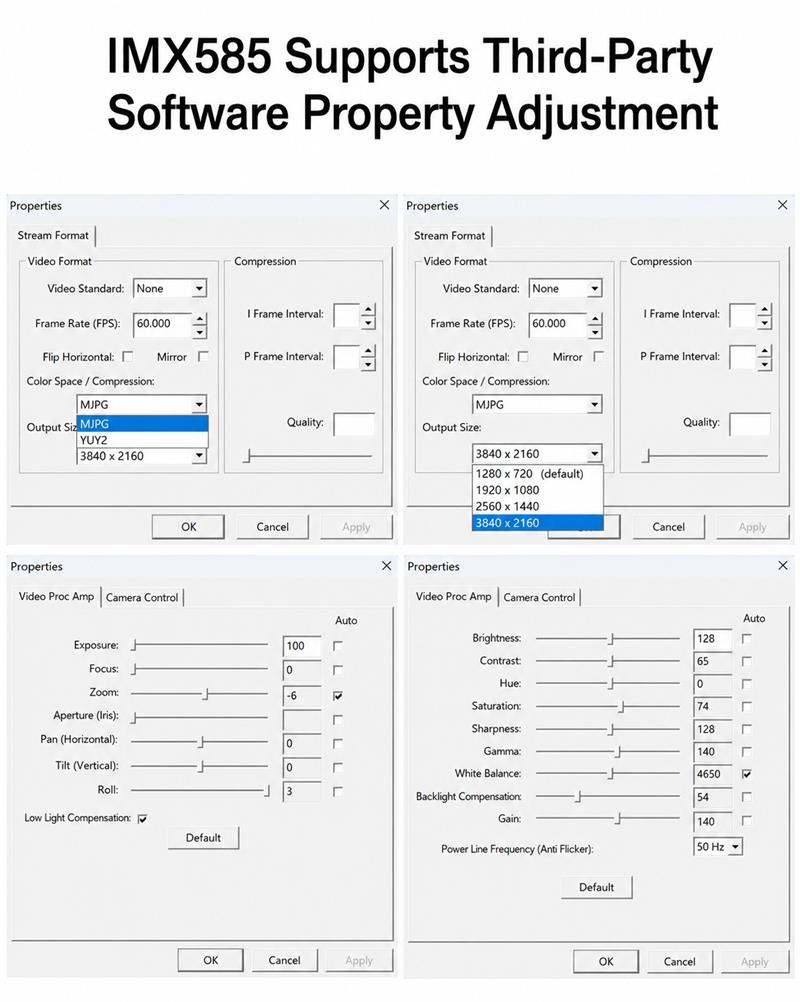

•    basic AE parameter and camera property adjustment
These options help the camera move from “engineering sample” to a practical camera head for system-level testing.
For outdoor or harsh field use, final waterproofing, cable sealing, thermal behavior, shock resistance and mounting structure should be tested under the customer’s actual deployment conditions.


Low-Light Proof Before Sample Purchase

Low-light performance is not decided by the sensor alone. It depends on lens aperture, exposure time, gain, frame rate, filter selection, lighting condition and host software.

Before you order samples, Goobuy can provide or prepare low-light sample images or short video clips under project-relevant conditions such as:

• weak indoor lighting
• emergency-light environment
• dim warehouse or equipment room
• night-window or storefront scene
• 850nm IR-assisted condition
• comparison with ordinary USB camera modules

Please tell us your expected lighting level, target distance and required FOV. We can suggest the most realistic first test configuration.

This helps avoid buying a high-end sensor with the wrong lens, wrong exposure setup or wrong test condition.



Host and Software Reality Check
UVC makes evaluation easier, but it does not mean every host system will perform the same.
This camera is designed for UVC-compatible host systems. It can usually be tested with:
•    Windows camera applications
•    OBS
•    Linux V4L2
•    GStreamer
•    OpenCV
•    standard UVC capture software
•    selected Android or embedded systems that support UVC camera input
Actual performance depends on the host hardware, USB controller, operating system, permissions, software pipeline and decoding capability.
For first evaluation, we recommend testing:
•    1080p/60 stability
•    4K/30 stability
•    4K/60 MJPG decoding load
•    USB cable stability
•    exposure behavior in low light
•    CPU/GPU usage on the real host device
•    long-session heat behavior inside the final enclosure
If your device only supports HDMI or SDI camera input, please confirm the interface before ordering this USB UVC camera head.

Why Contact Goobuy Instead of Buying a Generic IMX585 Board?
If you only need the cheapest IMX585 board for a quick lab test, a marketplace module may be enough.
Contact Goobuy when you need a repeatable low-light USB camera configuration matched to your real system:
•    host platform
•    UVC compatibility
•    target FOV
•    lens and working distance
•    cable length
•    screw-locking connection
•    housing and mounting method
•    low-light test environment
•    sample-to-small-batch continuity
Our goal is to help product managers and engineers reduce the risk of choosing the wrong sample.
After sample approval, Goobuy can help keep the selected lens, cable, filter, housing and module configuration consistent for repeat orders.



First Sample Configuration: What We Need From You
To recommend the right IMX585 camera head for your first evaluation, please send:
•    host device model or platform
•    operating system
•    whether the host supports UVC USB camera input
•    target application
•    target distance and FOV
•    lighting condition
•    required cable length
•    mounting location
•    enclosure space limitation
•    required housing or IP protection level
•    expected test resolution and frame rate
•    expected order quantity after validation
With this information, we can suggest a practical sample configuration for your real project instead of sending a generic module that may not match your system.

Typical Specifications

Item	Specification
Product Type	IMX585 USB3.0 low-light UVC camera module / ruggedized camera head option
Sensor	Sony IMX585 STARVIS 2
Sensor Size	1/1.2 inch
Pixel Size	2.9μm × 2.9μm
Interface	USB3.0
Protocol	UVC, USB Video Class
Shutter Type	Rolling Shutter
Focus Type	Fixed Focus
Max MJPG Output	3840 × 2160 @ 60fps over USB3.0
YUV Output	Up to 1920 × 1080 @ 60fps; 4K YUV at lower frame rate
USB2.0 Mode	Available at reduced resolution and frame rate

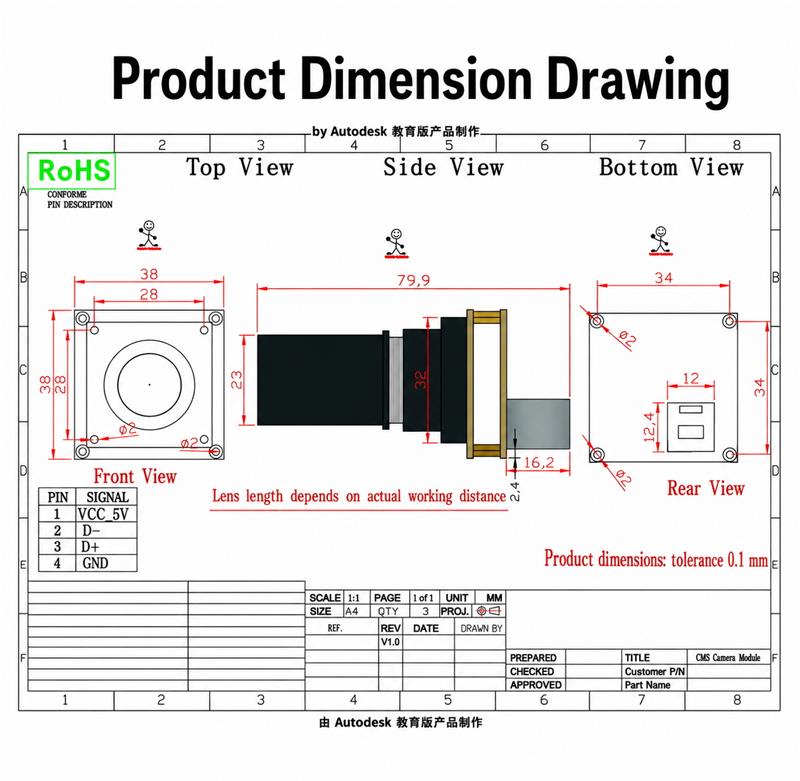

Board Size	38 × 38mm stacked PCB
Minimum Illumination	0.5 lux
Dynamic Range	81dB
SNR	38dB
Power Supply	USB Bus Power
Voltage / Current	5V, 280mA–350mA
Operating Temperature	0°C to 70°C
Storage Temperature	-30°C to +80°C
Supported Systems	Windows, Mac OS, Linux, Android, Raspberry Pi and UVC-compatible hosts
Lens Options	Wide-angle, low-distortion and CS lens options
Cable Options	1m, 2m, 3m or project-based cable length
Rugged Options	Aluminum housing, screw-locking USB cable, IP65/IP67 enclosure design option
OEM Support	Lens, FOV, cable, connector, filter, mounting, housing discussion and AE parameters

4K60 MJPG output requires USB3.0 bandwidth, a stable host controller, good cable quality and enough decoding capability on the host system.

Engineering Notes Before Evaluation
This IMX585 UVC camera head uses a rolling shutter sensor.
It is suitable for 4K low-light imaging, field video kits, portable video encoders, emergency response command boxes, protected observation enclosures and remote monitoring systems.
It is not recommended as the first choice for high-speed motion capture, external trigger applications, strobe-synchronized inspection or projects that strictly require global shutter image acquisition.
The ruggedized housing option improves deployment readiness, but final IP protection, cable sealing, heat behavior, vibration resistance and mounting reliability should be confirmed under the customer’s actual conditions.
Goobuy supplies camera hardware. AI analytics, facial recognition, data storage, video transmission, encryption and privacy compliance are handled by the customer’s host system and software.



Professional FAQ
1. Is this a bare IMX585 module or a deployable camera head?
It can be supplied as a board-level IMX585 USB module or as a ruggedized UVC camera head with aluminum housing, screw-locking USB cable and IP65/IP67 enclosure option. For field video projects, we recommend evaluating the camera head configuration, not only the bare board.


2. Can it work with our portable video encoder?
Yes, if your encoder supports UVC USB camera input. Please confirm that your host can accept a USB webcam or UVC camera source. If your device only accepts HDMI or SDI input, this USB camera head may require a different integration approach.


3. Can it work with a Windows Toughbook or Getac computer?
It can usually be tested on UVC-compatible Windows systems using standard camera software, OBS or other video capture applications. We recommend testing your actual Toughbook or Getac model before production.


4. Can Linux systems access this camera through V4L2 or GStreamer?
As a UVC camera, it can usually be accessed through compatible Linux UVC pipelines such as V4L2, GStreamer or OpenCV. Actual behavior depends on the Linux kernel, USB controller, permissions and capture software.


5. What should we test before buying 50 or more units?
Test 1080p/60 stability, 4K/30 stability, 4K/60 MJPG decoding load, USB cable stability, low-light exposure behavior, long-session heat behavior and mechanical fit inside the final enclosure.


6. Can you provide low-light proof before we order samples?
Yes. Goobuy can provide or prepare sample images or short videos under weak indoor light, emergency-light, warehouse, night-window or 850nm IR-assisted conditions. Please share your expected lighting level, target distance and FOV.


7. Can you recommend the first sample configuration for our project?
Yes. Send your host platform, target scene, lighting condition, required FOV, cable length and mounting space. We can recommend a practical first IMX585 sample configuration instead of sending a generic board that may not fit your system.


8. Does screw-locking USB solve field disconnect problems?
Screw-locking USB helps reduce accidental disconnection, but total stability also depends on cable length, cable quality, host USB controller, power stability, mechanical strain relief and how the camera is mounted in the final system.


9. Is this camera waterproof by default?
The bare board-level module is not waterproof. A ruggedized housing option with IP65/IP67 enclosure design can be discussed. Final waterproof performance should be confirmed based on cable sealing, housing structure and customer deployment conditions.


10. Can it work in complete darkness without IR light?
No low-light CMOS sensor can create detailed images without usable light. IMX585 is suitable for weak ambient light, emergency lighting, night-window scenes or IR-assisted evaluation, but true zero-light applications may require IR illumination or thermal imaging.


11. Is this camera suitable for high-speed motion capture?
No. It uses a rolling shutter sensor. For high-speed motion capture, external trigger or strobe-synchronized inspection, a global shutter USB camera is more suitable.

12. Why should we contact Goobuy instead of buying a generic IMX585 board?
Contact Goobuy if you need project-fit support: lens selection, FOV matching, cable length, screw-lock USB, housing discussion, low-light testing, host compatibility guidance and repeatable configuration for sample-to-small-batch supply.



Final CTA
Need a low-light USB camera head for an existing field video system?
Send us your host platform, UVC support status, target lighting condition, required FOV, cable length and mounting space.
Goobuy will recommend a practical IMX585 4K low-light UVC camera head configuration for your first evaluation, instead of asking you to guess the right lens, cable and housing by yourself.
