Wide Angle AHD Mini Cameras: Compact Surveillance for Embedded Vision Systems and Industrial Machines

In 2025, industrial automation, embedded vision systems, and robotics are demanding more compact, rugged, and cost-effective imaging solutions. One particular innovation gaining popularity among engineers and system integrators is the 6×6mm 720P wide angle AHD camera module—a miniature analog high-definition solution ideal for space-constrained environments that require reliable visual monitoring and inspection.

This article explores how a 720P mini AHD camera module with a 120° field of view is reshaping the way industrial machines, embedded systems, and robotics manufacturers in the U.S. and Europe approach surveillance, real-time monitoring, and embedded vision integration.

Why Miniature AHD Cameras Are Ideal for Industrial Environments

Industrial environments—such as factory floors, automated warehouses, mobile robots (AGVs and AMRs), and inspection systems—often face challenges like limited space, variable lighting conditions, and the need for rugged performance. Traditional IP cameras or large digital modules are often unsuitable due to size, latency, or complexity.

In contrast, mini AHD camera modules like our 6×6mm 720P analog camera offer:

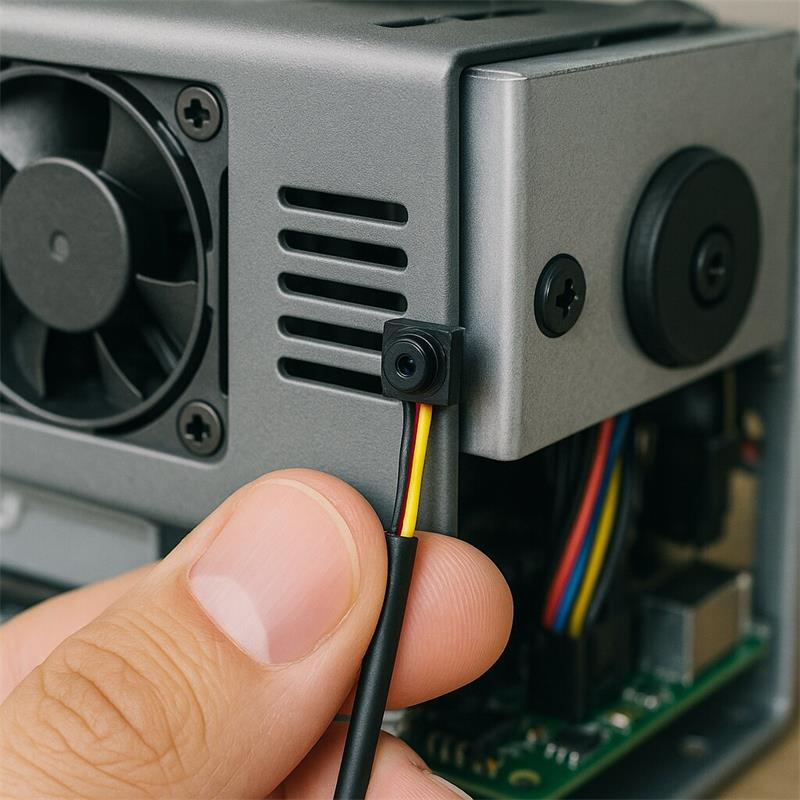

• Ultra-compact size (6×6mm PCB) for embedding into tight spaces like robotic arms, conveyors, or mobile devices.
• 720P HD resolution for clear real-time analog imaging over coaxial cables with minimal latency.
• Wide 120° field of view, covering broader areas at close range, critical for navigation, collision detection, or visual inspection.
• Compatibility with DVRs and AHD monitors, allowing easy integration into legacy analog systems or hybrid setups.

Application Scenarios: Compact Analog Surveillance in Action

Let’s look at a few application cases where this compact camera module makes a big impact:

1. Cobots and Small Footprint Robots

Collaborative robots (Cobots) are designed to operate side-by-side with human workers. Their compact structure requires embedded vision systems that do not compromise space or safety. Our wide angle mini AHD camera fits perfectly in joints, end-effectors, or tool heads, enabling real-time visual feedback for object recognition or process verification.

2. Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs)

In logistics or manufacturing, mobile robots require front-facing, wide-angle cameras to detect paths, obstacles, or QR markers. The 120-degree field of view makes this camera a great option for navigation and environmental awareness without bulky setups or IP networking complexity.

3. Industrial Inspection Systems

Quality control stations and in-line inspection tools can leverage this mini AHD module to inspect labels, surfaces, welds, or small components with minimal footprint. It can be embedded directly into a moving mechanism or a sealed inspection unit.

4. Embedded HMI Panels and DVR Displays

For many control panels or inspection stations, video from analog cameras must be displayed on embedded AHD monitors. This module supports direct connection to 7-inch AHD screens and DVRs, simplifying wiring and enabling quick field deployment.

Why Wide Angle Matters: The Power of 120 Degrees

A 120° field of view in a mini camera isn’t just a nice-to-have—it’s a critical functional advantage in close-range industrial vision. Here's why:

• Maximized area coverage in constrained environments
• Fewer blind spots, reducing the need for multi-camera setups
• Real-time scene awareness for robots and machinery
• Improved operator monitoring, allowing human workers to see more with less

Advantages Over IP or USB Solutions in Harsh Environments

While USB or IP camera modules offer higher resolution and digital features, they also introduce:

• Higher data processing requirements
• Greater latency or encoding overhead
• Challenges in electromagnetic interference environments
• More complicated cabling and drivers

AHD camera modules, on the other hand, are plug-and-play, use coaxial cable, and offer robust analog transmission with low delay. For industrial system integrators who value stability, simplicity, and size, our 6×6mm 720P AHD camera is a powerful alternative.

Shenzhen Novel Electronics Limited – Compact Camera Experts

At Shenzhen Novel Electronics Limited, we specialize in designing and manufacturing miniature camera modules for embedded, industrial, and robotic applications. Our 6×6mm 720P AHD camera module features:

• 120° wide-angle M5.5 lens
• Compact 6×6mm PCB size
• Stable 720P analog output
• Compatibility with AHD monitors and DVRs
• Customization for housing, other EFL miniature Lens, cables, or mounting
• Fast delivery and technical support

We serve industrial clients, OEM/ODM partners, and system integrators across the U.S. and Europe.

Website: https://www.okgoobuy.com/Industrial-Embedded-AHD-Camera-module.html
Email: office@okgoobuy.com
MOQ: Small quantity available for prototyping
OEM/ODM: Lens, cable, and housing customization supported

Final Thoughts

For companies looking to enhance machine vision in a compact, cost-effective, and efficient way, the 6×6mm 720P wide angle AHD camera offers a powerful solution. Whether embedded into a robot, vehicle, or inspection tool, it delivers the clarity and coverage needed for modern industrial demands.

As the industry shifts toward miniaturization and real-time responsiveness, camera modules like this are no longer optional—they’re essential.
