Build 2mm-class inspection probes for spaces larger cameras cannot enter; ideal for RVI tool OEMs, turbine cooling holes, fuel nozzles and micro-cavities.
Goobuy OV6946 2mm micro camera core is a compact USB imaging module for OEMs developing industrial micro borescopes, narrow-access RVI probes and precision inspection tools where standard 4mm, 6mm or 8mm camera probes cannot physically enter the inspection point
OV6946 is not selected because it has the highest resolution.
It is selected when your inspection tool must enter a space where larger probes cannot fit.
This camera core is best suited for OEM teams developing:
This product is not designed for medical endoscopy, veterinary endoscopy, consumer USB borescopes, automotive repair cameras, plumbing pipe inspection, heat exchanger tube inspection or replacement repair of Olympus / Waygate-style industrial endoscopes.
If a 4mm, 6mm or 8mm probe can enter your target, a larger and lower-cost camera will usually provide better lighting, higher resolution and easier integration.
Use OV6946 when your product truly needs a 2mm-class camera core.
You may be building an industrial inspection tool where every extra millimeter matters.
A normal 6mm borescope may provide better lighting and image quality, but it cannot enter the hole.
A 4mm probe may still be too large.
A larger 1080P module may look better on paper, but it does not solve the access problem.
That is where OV6946 becomes worth evaluating.
It gives your engineering team a tiny camera core for applications where the inspection target is a cooling hole, fuel nozzle, micro-cavity, narrow internal passage or precision channel that larger probes cannot reach.
This is not a general-purpose camera module.
It is a specialized component for OEMs building high-value industrial micro inspection tools.
You should consider OV6946 if your project needs:
Many industrial inspection targets are not normal tubes. They are small holes, restricted cavities, nozzles or internal channels with limited access diameter.
OV6946 helps OEM teams design a micro inspection probe when physical entry is more important than high pixel count.
Search intent naturally covered:
Your product may require a custom probe body, cable path, LED lighting, lens protection, sealing structure and mechanical reinforcement.
OV6946 is a camera core for OEM integration. It is not a finished handheld borescope.
This is useful for industrial inspection tool manufacturers that want to build their own micro borescope probe, RVI tool or special-purpose inspection system.
Search intent naturally covered:
In aerospace, turbine, nozzle, valve and precision manufacturing applications, the cost of disassembly can be very high. A micro visual probe can help engineers inspect hard-to-reach areas before deciding whether further teardown is needed.
OV6946 does not replace professional NDT validation.
Its value is bringing visual access into places where larger optical probes cannot go.
Search intent naturally covered:
For micro inspection tools, the camera sensor is only one part of the system. The final product also depends on lighting, probe housing, cable flexibility, lens direction, front-window design, sealing and software.
Goobuy can support OEM discussion around the camera core, cable, integration structure and project feasibility.
Search intent naturally covered:
Choose OV6946 if your project needs:
Do not choose OV6946 if your project involves:
If a larger probe can physically enter the inspection target, it will usually provide better illumination, higher image resolution and lower total system cost.
This following raw test video shows the imaging reference of the Goobuy OV6946 Φ2mm wide-angle USB micro camera module for OEM industrial micro borescopes, narrow-access RVI probes and precision inspection tools. It is provided for engineers, product managers, RVI tool developers, aerospace inspection tool OEMs, precision manufacturing QC teams and embedded inspection system integrators who need to evaluate physical access, wide-angle visual context, lighting feasibility, host integration and custom probe development before sample testing or batch planning.
OV6946 2mm micro camera core is a compact USB imaging module for OEMs developing industrial micro borescopes, narrow-access RVI probes and precision inspection tools where standard 4mm, 6mm or 8mm camera probes cannot physically enter
OV6946 USB Camera Module | 2mm Micro Endoscope with LED & 120°
| Item | Specification |
|---|---|
| Product Type | OV6946 micro USB camera module |
| Sensor | OmniVision OV6946 |
| Camera Class | 2mm-class micro camera core |

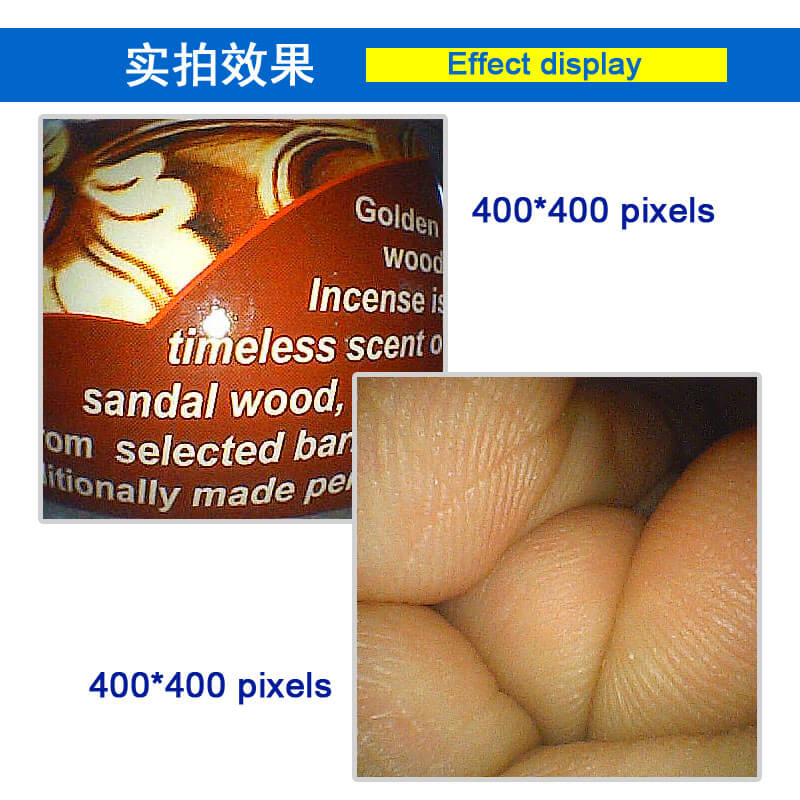

| Resolution | 400 × 400 |
| Frame Rate | Up to 30fps, project dependent |
| Output | USB camera module configuration |
| Typical Use | Industrial micro borescope / RVI probe OEM |
| Key Advantage | Ultra-small physical size |
| Lighting | LED / illumination design depends on final probe |
| Probe Structure | Designed by OEM customer |
| Custom Options | Cable, connector, lighting discussion, housing concept, integration support |
| Not For | Medical, veterinary, consumer, automotive, sewer or large tube inspection |
Note: Final image quality depends on lens design, lighting, probe housing, viewing distance, cable structure, host system and final tool integration.
For OV6946 projects, the camera module is only the starting point.
A successful 2mm-class micro inspection probe usually requires careful design of:
Goobuy can discuss camera core supply and project-based integration support for OEM customers developing industrial micro borescope tools, RVI probes and narrow-access inspection systems.
This is the primary application for OV6946.
OV6946 is designed for OEM teams developing industrial micro borescopes, remote visual inspection tools and ultra-small inspection probes where physical access is the real limitation.
It is not the right choice for normal inspection spaces.
It becomes valuable when a larger camera cannot enter.
Typical OEM projects include:
The right buyer is not a repair shop, plumber, DIY user or consumer borescope seller.
The right buyer is an industrial inspection tool manufacturer that needs a 2mm-class camera core for a product they will design, produce and sell.
Typical order logic:
OV6946 can be evaluated by aerospace and turbine inspection tool OEMs developing micro probes for turbine cooling holes, fuel nozzles and narrow internal passages.
In this application, the key value is keyhole access.
If a 4mm or 6mm borescope can enter, OV6946 is usually not the best option.
But when the inspection path is too small for standard probes, a 2mm-class OV6946 camera core becomes worth evaluating.
Suitable OEM projects include:
Important note:
OV6946 is a camera core, not a complete certified aerospace borescope. Final lighting, optics, probe housing, mechanical protection, inspection software and validation must be handled by the tool OEM.
Search phrases naturally covered:
OV6946 can support OEM projects where the inspection target is not a normal tube, but a tiny cavity, nozzle, micro-hole or internal channel.
This is different from heat exchanger or condenser tube inspection. Those tubes are often large enough for 4mm, 6mm or 8mm cameras. OV6946 should only be considered when larger probes physically cannot enter.
Suitable OEM projects include:
The customer should choose OV6946 only when access diameter is the main engineering constraint.
Search phrases naturally covered:
To evaluate whether OV6946 is suitable for your project, please send:
For serious OEM projects, please also clarify whether a 4mm, 6mm or 8mm probe has already been tested and why it cannot enter the inspection point.
Goobuy does not position OV6946 as a generic endoscope camera.
We help OEM customers decide whether a 2mm-class micro camera core is truly necessary for their industrial inspection tool. If your application can use a larger probe, we will not recommend OV6946 as the first choice. A larger camera will usually deliver better image quality and lower cost.
But when the inspection point is physically too small, OV6946 can become the right component to evaluate.
Goobuy can support:
Our value is helping industrial inspection tool manufacturers turn a narrow-access imaging problem into a workable camera core configuration.
Are you building a 2mm-class industrial micro borescope, RVI probe or narrow-access inspection tool?
Send us your inspection target, access diameter, probe length, lighting requirement, cable structure and expected annual quantity.
Please include:
If OV6946 is the right fit, we will help you evaluate it.
If your inspection target can use a larger probe, we can suggest a more practical and lower-cost camera option.
Contact Goobuy to discuss your 2mm micro borescope camera core project.
Frequently Asked Questions (FAQ)
1. We need a 2mm camera module for an industrial micro borescope. Is OV6946 the right starting point?
Yes, OV6946 is worth evaluating when your OEM inspection tool needs a 2mm-class camera core and larger 4mm, 6mm or 8mm probes cannot enter the target. It is suitable for industrial micro borescope, RVI probe and narrow-access inspection tool development, not consumer endoscope products.
Usually no. Most heat exchanger, condenser and chiller tubes are large enough for 4mm, 6mm or 8mm probes, which provide stronger lighting, higher resolution and lower cost. OV6946 is only justified when the inspection point is too small for larger probes and 2mm physical access is required.
It can be evaluated by OEMs developing aerospace micro inspection probes, turbine cooling hole borescopes or fuel nozzle inspection tools. OV6946 provides physical access into very narrow passages, but final defect detection, crack assessment, lighting, optics and aerospace validation must be handled by the tool manufacturer.
It depends on the inspection goal. OV6946 is not selected for high pixel count; it is selected because it can access spaces that larger cameras cannot. For surface detail, crack visibility or deposit evaluation, the final result depends on lighting, lens design, working distance, probe position and inspection software.
OV6946 is a micro camera core for OEM integration. A finished industrial micro borescope still requires probe housing, LED lighting, cable design, lens protection, sealing, mechanical reinforcement and host-side software. Goobuy can discuss module supply and integration support, but final tool design belongs to the OEM.
No. High-end industrial videoscope probes use proprietary communication, special cables, firmware and mechanical designs. OV6946 is not a plug-and-play repair part for those systems. It is intended for OEMs designing new micro borescope or narrow-access RVI tools.
The most realistic applications are industrial micro borescope OEM tools, aerospace turbine cooling hole inspection probes, fuel nozzle inspection tools, precision nozzle inspection, micro-cavity visual inspection and internal channel inspection systems where larger probes cannot physically enter.
Please send the target application, minimum access diameter, inspection depth, working distance, lighting requirement, cable length, probe flexibility, host system, expected prototype quantity and annual production quantity. Also tell us whether 4mm, 6mm or 8mm probes have already failed to fit your inspection target.
