Freezer-side 1080P USB camera for OEM cold equipment; supports UVC output, metal housing, IP67 options, anti-fog design and custom FOV/cables.
Goobuy UC-538 is a low-temperature UVC USB camera module designed for OEM refrigeration equipment that needs stable 2MP 1080P image capture inside cold environments. It is built for smart refrigerators, commercial freezers, AI retail cold cabinets, refrigerated vending machines, lab freezers, vaccine refrigerators, pharma cold storage cabinets and cold-chain equipment that require freezer-side visual verification instead of generic outdoor surveillance. it is not a parking lot camera/drone camera/general winter surveillance camera. It is a cold-side visual sensor for refrigeration equipment manufacturers, cold-chain device builders, lab freezer OEMs and smart cabinet developers that need a camera to work inside or near a cold compartment.Temperature sensors tell you how cold it is. UC-538 helps show what is actually happening inside
Goobuy UC-538 is best defined as a cold harsh-environment USB camera for OEM refrigeration equipment where the real challenges are not only low temperature, but also condensation, frost, humidity, repeated door-opening cycles, temperature transitions, cable routing, sealing, and stable UVC image capture inside cold compartments.
Key Points Before Evaluation
| Question from OEM Engineers | Goobuy UC-538 USB camera Answer |
|---|---|
| Does it work in freezer environments? | Designed for -25°C / -13°F operation |
| Is it a USB camera module? | Yes, USB2.0 UVC output |
| Can it work with Linux / Android / Windows? | Yes, host compatibility should be validated |
| Is it for smart refrigerators and commercial freezers? | Yes, that is a core use case |
| Can it help with freezer inventory visibility? | Yes, for visual verification and image capture |
| Does anti-fog mean “never fogs”? | No, anti-fog performance depends on the full system design |
| Can it replace temperature sensors? | No, it adds visual evidence beside temperature data |
| Can it be customized for OEM equipment? | FOV, cable, connector, housing, IP67 and lower-temperature options can be discussed |
| Question from OEM Engineers | Goobuy UC-538 USB Camera Answer |
|---|---|
| Is the challenge only low temperature? | No. Condensation, frost, humidity, door-opening cycles and sealing are often more important than temperature alone. |
| Can it cold-start at very low temperature? | Standard configuration targets -25°C; cold-start behavior should be tested in the final equipment. |
| Can it work in wet or humid cold compartments? | Project-dependent; IP67 structure, sealing, lens window and cable exit design must be evaluated. |
| Can it handle repeated door-opening cycles? | It must be validated in the real cold cabinet because temperature transition and moisture behavior depend on the complete system. |
A freezer-side camera project is not only about whether a camera can survive low temperature. In real refrigeration equipment, the camera must work through cold air, moisture, condensation, frost, repeated door opening, temperature transition, limited mounting space, cable routing, and long operating hours.
UC-538 is designed to help OEM teams solve these practical engineering challenges inside smart refrigerators, commercial freezers, AI retail cold cabinets, refrigerated vending machines, walk-in freezers, lab freezers, vaccine refrigerators, pharma cold storage systems, and cold-chain visual verification equipment.
Standard USB cameras are usually designed for room-temperature use. In freezer-side applications, unstable image output, cold-start failure, cable stiffness, and component stress can appear when the temperature drops.
UC-538 provides a low-temperature USB camera platform for OEM equipment that needs stable 1080P UVC video inside or near cold compartments.
Condensation is one of the biggest problems in cold equipment camera integration. When warm humid air enters the freezer during door opening, moisture may appear around the lens window, camera housing, cable exit, or internal compartment.
UC-538 supports project-based anti-fog and condensation-control discussion, helping OEM teams evaluate the camera together with lens window design, sealing, airflow, humidity, and real door-opening cycles.
In many freezers and cold cabinets, the camera may still work electrically, but the viewing area becomes blocked by frost, ice, or moisture on the lens window.
UC-538 helps equipment teams plan camera position, viewing angle, lighting, lens window, and installation structure for real visual access inside cold compartments.
Smart refrigerators, commercial freezers, cold cabinets, and refrigerated vending machines do not stay in a perfectly stable environment. Doors open and close, customers interact with the cabinet, warm air enters, and the camera must continue working through repeated temperature changes.
UC-538 is suitable for sample validation in real door-opening cycles, where the complete equipment design must prove that image capture remains usable after repeated cold-to-warm transitions.
Temperature sensors can tell whether the compartment is cold, but they cannot show what happened inside the freezer.
UC-538 adds visual proof for cold-chain and refrigeration systems, such as shelf status, product presence, door-event images, frost condition, sample cabinet visibility, inventory position, and equipment maintenance checks.
Cold cabinets and freezer compartments often have very limited installation space. The camera must fit into corners, shelves, inner walls, door structures, or protected viewing positions without affecting the user experience or the cooling structure.
UC-538 gives OEM teams a compact USB camera platform that can be evaluated with customized FOV, cable length, installation position, and housing requirements.
Many refrigeration products already use an embedded Linux board, Android board, Windows PC, AI retail controller, vending machine controller, or industrial host. These systems often need direct camera input without building a full IP camera architecture.
UC-538 supports UVC video output, making it easier for OEM teams to validate image capture on existing host platforms.
In low-temperature equipment, cable routing is not a small detail. Cable flexibility, cable exit direction, sealing, connector position, and strain relief can affect long-term reliability.
UC-538 can be discussed with project-based cable length, connector, routing, and installation requirements before batch production.
Cold-chain systems often record temperature, but visual information can provide additional operational evidence.
UC-538 can help capture whether a freezer door was opened, whether products shifted, whether shelves were empty, whether frost formed, or whether samples were accessed. It does not replace temperature sensors or compliance systems, but it can add useful visual verification beside temperature data.
Cold equipment camera performance cannot be fully judged on a normal office desk. The real test must happen inside the actual freezer, cold cabinet, refrigerated vending machine, lab freezer, or cold-chain system.
UC-538 is intended for OEM sample validation, where the customer can test cold start, continuous operation, condensation behavior, frost condition, lens FOV, lighting, cable routing, UVC stability, and host compatibility before production approval.
In cold equipment, the hardest camera problem is usually not only whether the sensor can operate at -25°C. The real engineering risk often comes from condensation, frost buildup, repeated door opening, fast temperature transitions, humidity, lens window fogging, cable stiffness, connector reliability, and sealing around the camera position.
Goobuy UC-538 is designed for OEM teams that need a practical freezer-side USB camera module for smart refrigeration equipment, commercial freezers, cold-chain cabinets, walk-in freezer devices, lab freezers, vaccine refrigerators, and pharma cold storage systems.
Best-fit cold harsh applications include:
UC-538 should be evaluated as part of the complete cold equipment design. Final performance depends on the camera, lens window, housing, sealing, airflow, humidity, lighting, cable routing, host platform, and real door-opening cycle.
For refrigerator OEMs that need internal image capture for food recognition, shelf status, remote viewing, or smart appliance functions.
For retail refrigeration equipment that needs product verification, shelf visibility, door-event image capture, and cold cabinet monitoring under frequent customer interaction.
For cold-chain operators and equipment builders that need visual verification in walk-in freezers, refrigerated storage rooms, outdoor freezer lockers, refrigerated pickup stations, refrigerated containers, or mobile cold-chain cabinets.
For professional cold storage equipment that needs visual confirmation of samples, vaccines, medicines, cabinet access, frost condition, or maintenance status, while compliance and data management are handled by the complete system.
When goobuy UC-538 USB camera Is the Right Choice
| Project Requirement | UC-538 Fit |
|---|---|
| Low-temperature USB camera module | Strong fit |
| -25°C freezer-side operation | Strong fit |
| UVC camera for smart refrigerator | Strong fit |
| Camera module for commercial freezer | Strong fit |
| AI retail cold cabinet camera | Good fit |
| Lab freezer visual monitoring | Good fit |
| Pharma cold storage visual audit | Good fit |
| Cold-chain visual verification | Good fit |
| Anti-fog freezer camera design | Project-dependent |
| IP67 cold equipment integration | Optional customization |
| Temperature sensor replacement | No |
| General outdoor surveillance | Not the focus |
| Parking lot / border / winter road camera | Not the focus |
| Drone / robotics camera | Not the focus |
UC-538 is designed for freezer-side camera integration in cold equipment. The standard configuration targets -25°C / -13°F operation, making it suitable for smart freezers, cold cabinets, cold-chain storage devices and lab freezer visual monitoring.
Custom lower-temperature configurations, such as -40°C or -50°C low-temperature camera requirements, can be discussed for qualified OEM projects after engineering evaluation.
For cold harsh environments, buyers should confirm both continuous operation and cold-start behavior at the target temperature
UC-538 supports 2MP 1080P USB2.0 UVC video, allowing integration with many Linux, Android, Windows and embedded host systems.
This makes it useful for:
Final compatibility should be tested with the actual host platform, USB controller, cable length and operating temperature profile.
Fogging, condensation and frost are the biggest practical problems in freezer camera integration.
UC-538 is designed for anti-fog USB camera applications inside cold cabinets and freezers, but anti-fog performance depends on the complete product design, including:
For OEM projects, anti-fog performance must be validated inside the real freezer, not only in a standard room-temperature camera test.
The camera uses a metal housing for rugged embedded integration. IP67 waterproof USB camera customization can be discussed for cold cabinet, refrigerated equipment or wet-environment applications. In cold equipment, waterproof performance is not only a housing rating. Cable exit, connector sealing, lens window, equipment-side gasket and condensation path must be considered together
Final waterproof performance depends on the housing, cable exit, connector, lens window and equipment-side sealing design.
UC-538 can be customized for refrigeration equipment manufacturers, smart freezer OEMs and cold-chain device builders.
Customization options include:

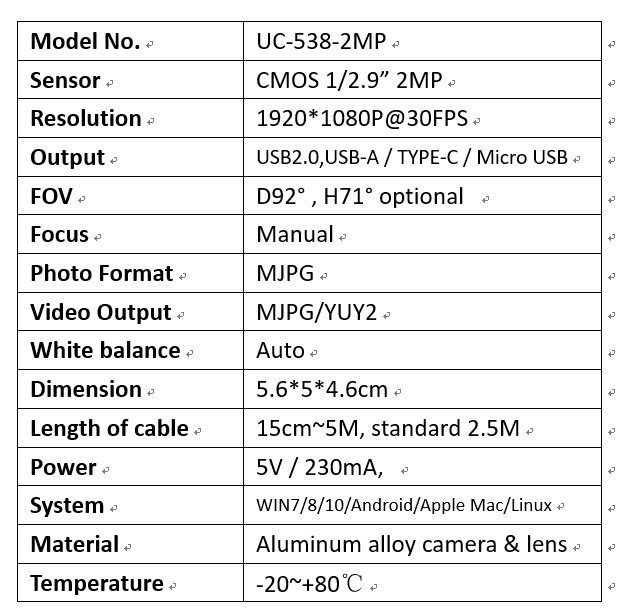

Technical Specifications
| Item | Specification |
|---|---|
| Model | UC-538 |
| Product Type | Low-Temperature UVC USB Camera Module |
| Resolution | 2MP / 1080P |
| Output | USB2.0 UVC |
| Standard Operating Temperature | -25°C / -13°F |
| Custom Temperature Option | -40°C / -50°C discussion for qualified OEM projects |
| Housing | Metal housing |
| Waterproof Option | IP67 customization available |
| Lens | FOV customization available |
| Host Compatibility | Windows, Linux, Android and embedded UVC host systems |
| Best-Fit Applications | Smart refrigerator, commercial freezer, AI retail cold cabinet, lab freezer, pharma cold storage, cold-chain visual verification |
Before selecting UC-538, please confirm the real operating environment and installation method.
Important evaluation points include:
If your application only needs outdoor winter surveillance, a standard IP camera may be more appropriate. UC-538 is designed for OEM cold-equipment integration, not generic outdoor security.
UC-538 can be evaluated for two types of cold-equipment camera integration:

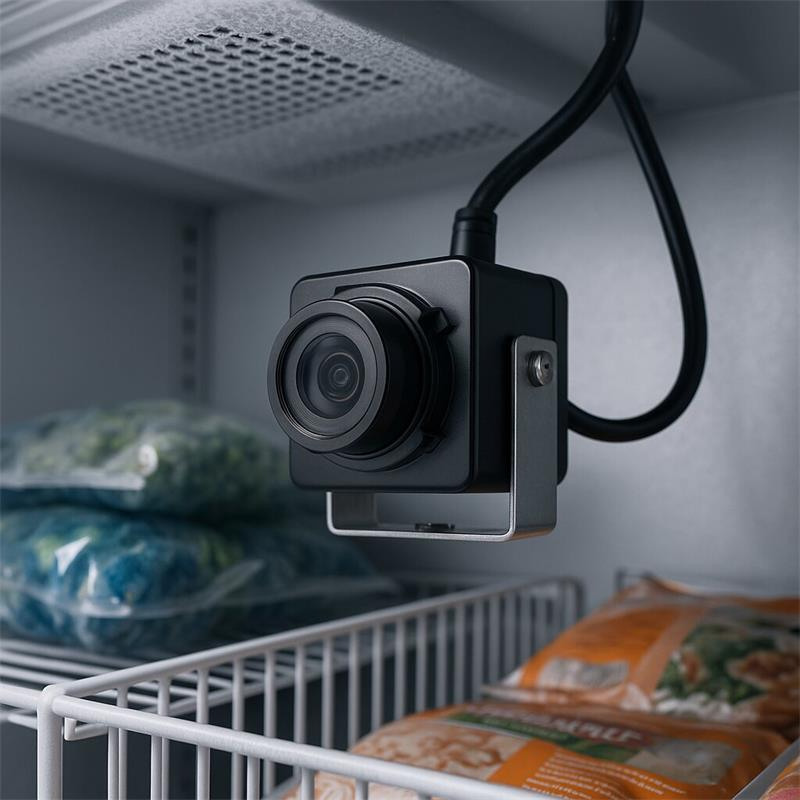

The camera is installed inside the cold compartment. This may provide a better direct view of shelves, samples or products, but requires attention to sealing, condensation, cable routing, cleaning, frost buildup and low-temperature durability.
The camera is placed outside the cold compartment and views through glass or plastic. This may simplify camera protection, but image quality depends on window material, reflection, frost, fog, lighting and viewing angle.
For both methods, OEM teams should test the camera in the real refrigeration system before production approval.

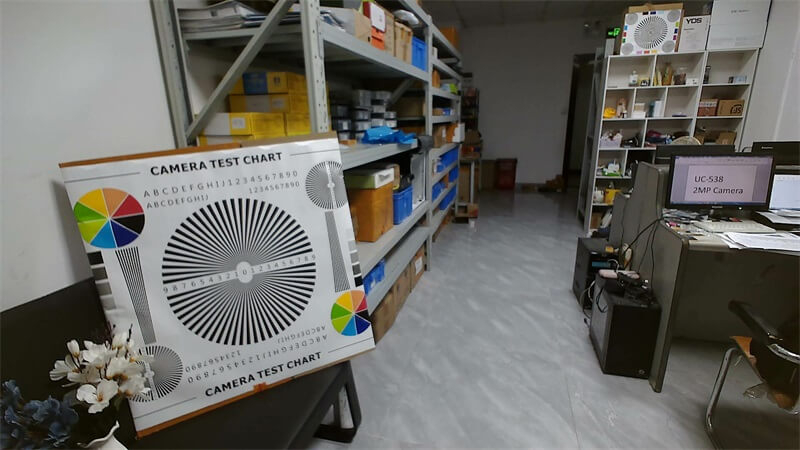

screenshot compressed picture when this freezer usb camera work in low light condition, October, 2024
( the following image had been compressed much because of website design request)
Application Scenarios
Goobuy UC-538 is a low-temperature UVC USB camera for cold harsh environments where OEM equipment needs visual verification inside or near a cold compartment. It is suitable for smart refrigerators, commercial freezers, AI retail cold cabinets, refrigerated vending machines, walk-in freezers, lab freezers, vaccine refrigerators, pharma cold storage devices and cold-chain equipment.
Unlike a general outdoor winter camera, UC-538 is designed for freezer-side image capture where condensation, frost, repeated door opening, humidity, lens-window fogging, cable routing and host compatibility must be evaluated together.
Tell us what you are building:
Send your operating temperature, humidity condition, door-opening cycle, installation position, lens FOV, cable length, host system and estimated quantity. We will help evaluate whether UC-538 is the right low-temperature USB camera module for your OEM project. Email: office@okgoobuy.com
Professional FAQ
UC-538 is a low-temperature USB camera for OEM cold equipment, not a general outdoor winter surveillance camera. It is designed for freezer-side image capture inside or near smart refrigerators, commercial freezers, refrigerated vending machines, walk-in freezers, lab freezers, vaccine refrigerators and cold-chain equipment.
For parking lots, roads, drones, outdoor security or long-distance winter surveillance, a standard IP camera or another outdoor camera platform may be more suitable.
Goobuy UC-538 is designed for anti-fog USB camera applications in commercial freezers, cold cabinets and refrigerated equipment, but no camera should be assumed to be fog-free in every freezer design.
Anti-fog performance depends on humidity, door-opening frequency, temperature transition, lens window material, sealing, airflow and whether moisture enters the enclosure. The correct engineering question is whether the complete camera, housing, window and cold-compartment design can maintain usable images during real door-opening cycles.
Yes. Goobuy UC-538 can be used as a cold-chain visual verification camera for walk-in freezers, refrigerated warehouse equipment, cold storage rooms and cold-chain cabinets.
It can help capture door-open images, shelf condition, frost buildup, frozen inventory position, product presence and visual evidence after temperature alarms. It does not replace temperature sensors or cold-chain data loggers. It adds visual proof beside temperature data.
Yes. UC-538 can be evaluated for lab freezer visual monitoring, vaccine refrigerator visual confirmation, biotech sample freezer observation and pharma cold storage visual audit.
It can support remote checks, sample cabinet visibility, freezer maintenance review, door-event documentation and operational workflow visibility. For regulated environments, UC-538 is only an imaging module. Final validation, audit trail, data integrity, storage policy and compliance documentation must be handled by the complete equipment manufacturer or system integrator.
The standard UC-538 is positioned for -25°C / -13°F low-temperature operation, but cold-start behavior should be tested inside the real equipment. Cold start can be affected by the camera, USB cable, connector, power supply, host system, humidity, sealing and temperature transition.
For production projects, test both continuous operation and cold-start recovery at the target temperature.
The standard UC-538 is positioned for -25°C / -13°F operation. Custom -40°C or -50°C configurations can be discussed for qualified OEM projects, but they require engineering evaluation and real environmental testing.
At very low temperatures, the complete system must be validated, including image stability, cold start, cable flexibility, connector reliability, housing, sealing, lens window, power stability and host device performance.
Before production approval, test the camera in the actual cold equipment, not only on a bench.
Recommended validation includes cold-start behavior, continuous operation, image clarity after repeated door openings, fogging and condensation behavior, frost buildup near the lens, USB video stability, cable flexibility, enclosure sealing, lens FOV, working distance, lighting, host compatibility and long-run operation.
Both methods are possible, but they create different engineering risks.
Internal installation gives a direct view of shelves, samples or products, but requires more attention to sealing, condensation, cable routing, cleaning, frost buildup and low-temperature durability. External window-based viewing may simplify camera protection, but image quality depends on window material, reflection, frost, fog, lighting and viewing angle.
No. UC-538 does not replace temperature sensors, temperature loggers or compliance monitoring systems. Its role is visual verification.
A temperature sensor tells the system how cold it is. A camera can show whether the door was open, whether shelves were empty, whether frost formed, whether products shifted, or whether a sample drawer was accessed.
Goobuy UC-538 USB camera is best for OEM refrigeration equipment manufacturers, smart freezer developers, commercial cold cabinet builders, refrigerated vending machine suppliers, lab freezer OEMs, pharma cold storage device builders and cold-chain equipment integrators.
It is not ideal for hobby testing, general outdoor winter surveillance, parking lot monitoring, drone cameras, robotics vision, or customers who only need a standard webcam in a cold room.
