Keep both hands free while capturing a first-person view during repair, inspection and field service. UC-510-EAR connects to compatible Android devices via USB-C OTG.

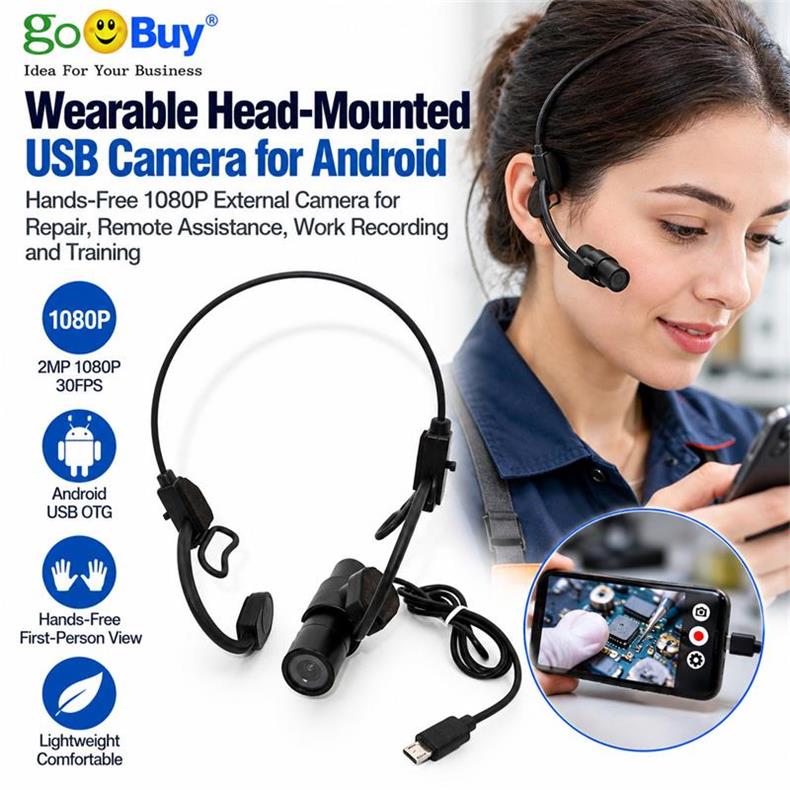

Goobuy UC-510-EAR is a compact ear-worn USB POV camera designed for hands-free first-person video with compatible Android phones and tablets. It moves the camera viewpoint away from the phone and closer to the work, helping technicians capture repair, inspection, maintenance and training activities while keeping both hands available.
Hands-Free POV Recording · Android OTG + UVC · 1080P Video · USB-C Connection
Your Android phone already has a good camera. The problem during hands-on work is often not image resolution — it is camera position.
Holding a phone occupies one hand. Placing it on a stand fixes the camera in one position. Neither is ideal when the user needs to move around equipment, inspect components or demonstrate a repair procedure.
UC-510-EAR moves the camera closer to the user's viewing position.
Wear the camera while using both hands for repair, inspection or maintenance work.
Record the work from a camera position that moves with the user instead of remaining fixed to the phone.
A compatible Android phone or tablet becomes the display and recording host, without requiring a separate standalone camera system.
Your phone becomes the host. UC-510-EAR becomes the viewpoint.
Suggested Image: Phone Camera vs Wearable POV Camera comparison

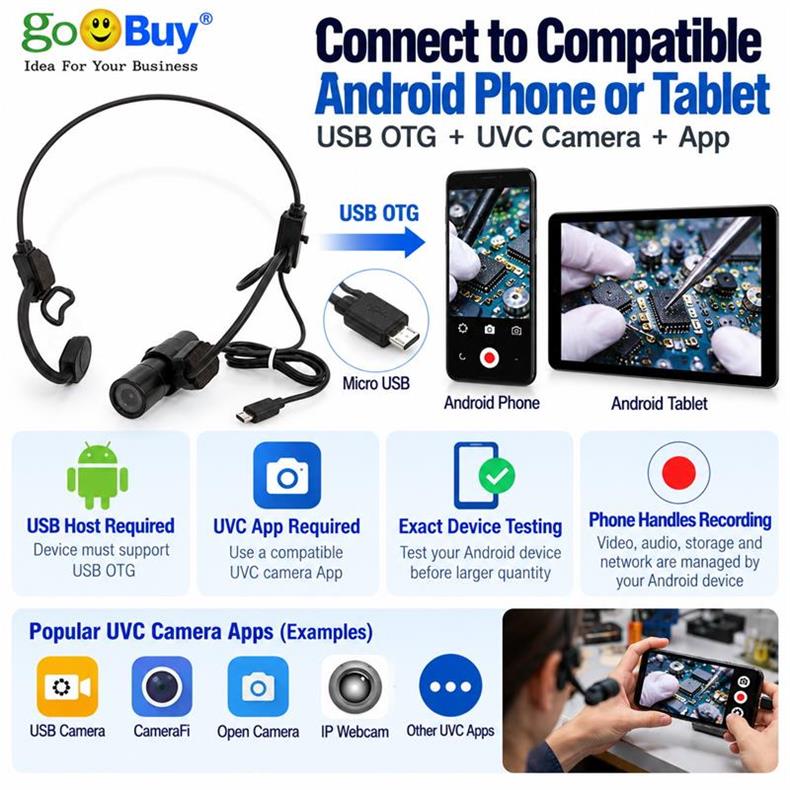

UC-510-EAR is designed around a simple Android external-camera workflow.
Position the compact camera near your viewing direction to capture a natural first-person perspective of the work area.
Connect UC-510-EAR to a compatible Android phone or tablet through USB-C. The Android device must support USB OTG / USB Host operation.
Open a supported UVC camera application to display the external camera image. Video recording or photo capture can be used when supported by the selected app.
USB Powered — No Separate Camera Battery Required
The camera receives power from the connected USB host, helping keep the wearable camera head compact and lightweight.
Suggested Image: Real Goobuy photo showing UC-510-EAR physically connected to an Android phone with the live UVC image visible.
UC-510-EAR is intended for professional users who need a convenient external camera viewpoint while performing an existing task.
Capture on-site service and maintenance procedures while keeping both hands available for tools and equipment.
Typical users: field technicians, equipment service teams and maintenance personnel.
Record repair steps, component conditions and completed work without repeatedly stopping to hold or reposition a smartphone.
Typical users: repair shops, technical service companies and after-sales teams.
Bring the camera viewpoint closer to the area being inspected while viewing the image on a connected Android device.
Typical users: inspectors, maintenance technicians and service personnel.
Capture first-person demonstrations of assembly, repair, maintenance or operating procedures for internal training and work instructions.
Typical users: trainers, service organizations and technical support teams.
Suggested Image: Field Service / Repair Documentation / Equipment Inspection / Technical Training four-scene image.
UC-510-EAR is different from a standalone action camera.
Instead of adding another battery-powered recording device to the user's equipment, it works as an external USB camera for a compatible Android host.
This makes it especially useful when the phone or tablet is already part of the technician's workflow.
|
Smartphone Camera |
UC-510-EAR Wearable POV Camera |
|
Camera stays with the phone |
Camera viewpoint moves with the user |
|
Phone may need to be held |
Both hands remain available |
|
Difficult to maintain POV position |
Wearable first-person camera position |
|
Built-in camera only |
External USB camera viewpoint |
|
Phone handles recording |
Android host can still handle viewing and recording* |
*Recording depends on the functions supported by the selected UVC camera application.
|

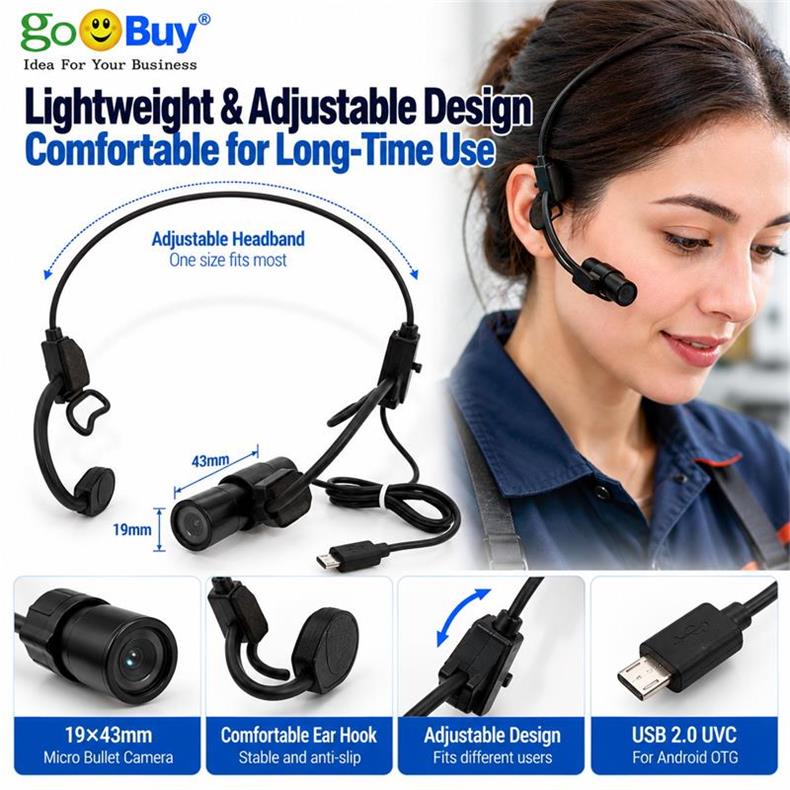

Item |
Specification |
|
Model |
Goobuy UC-510-EAR |
|
Product Type |
Ear-Worn / Head-Mounted USB POV Camera |
|
Resolution |
2MP 1080P |
|
Video Interface |
USB 2.0 UVC |
|
Host Connection |
USB-C |
|
Standard Lens |
3.6 mm |
|
Field of View |
90° |
|
Cable Length |
120 cm / 47.2 in |
|
Net Camera Weight |
41 g / 1.45 oz |
|
Host Device |
Compatible Android Phone or Tablet |
|
Android Requirement |
USB OTG / USB Host Support |
|
Power Supply |
Powered by USB Host |
Lens, field of view and cable configuration can be selected from Goobuy's existing available configurations according to the intended working distance and viewing area.
Before ordering for team deployment, we recommend checking three points:
Do not assume that an Android application can use UC-510-EAR simply because the camera works in a UVC camera app.
Third-party applications control whether they accept an external USB camera as a video source. App-specific compatibility should therefore be tested separately.
For B2B projects, send us your Android device model, Android version and intended application so that we can better understand your workflow.
Suggested Image: Actual UC-510-EAR + Android phone + UVC app test photo.
For many field-service and professional applications, the goal is not to replace a smartphone or purchase another complete camera system.
The goal is simply to put the camera in a better position.
A wired USB connection provides a straightforward way to combine:
Wearable Camera Viewpoint
Existing Android Display
UVC Camera Application
This can create a practical hands-free recording setup without adding a separate camera battery, display or standalone recorder.
A wearable camera should be tested in the real working environment, not selected from specifications alone.
Goobuy supports 2pcs sample evaluation so customers can verify UC-510-EAR with their own Android devices, applications and work procedures.
We recommend testing:
Camera position and wearing method
Android OTG recognition
UVC app compatibility
Working distance and field of view
Video quality in the actual work environment
Cable routing during hands-on work
UC-510-EAR is a good fit for businesses that already use Android phones or tablets and need an additional hands-free camera viewpoint for real work.
Typical customers include:
Field service companies · Equipment maintenance teams · Repair businesses · Inspection service providers · Technical training organizations · After-sales service teams · Professional tool and camera distributors
It is particularly suitable when the customer needs a ready-to-test external camera rather than a new camera development project.
The Android device should support USB OTG / USB Host and be able to use an external UVC camera through a compatible application. Because Android hardware and software environments vary, we recommend testing the actual device and app before larger deployment.
Goobuy UC-510-EAR provides the external UVC video source. Video recording can be performed through a compatible Android UVC camera application that supports recording.
This depends on whether the specific Android application supports external USB cameras. Successful operation in a UVC camera app does not automatically mean every communication or streaming application can use the external camera.
