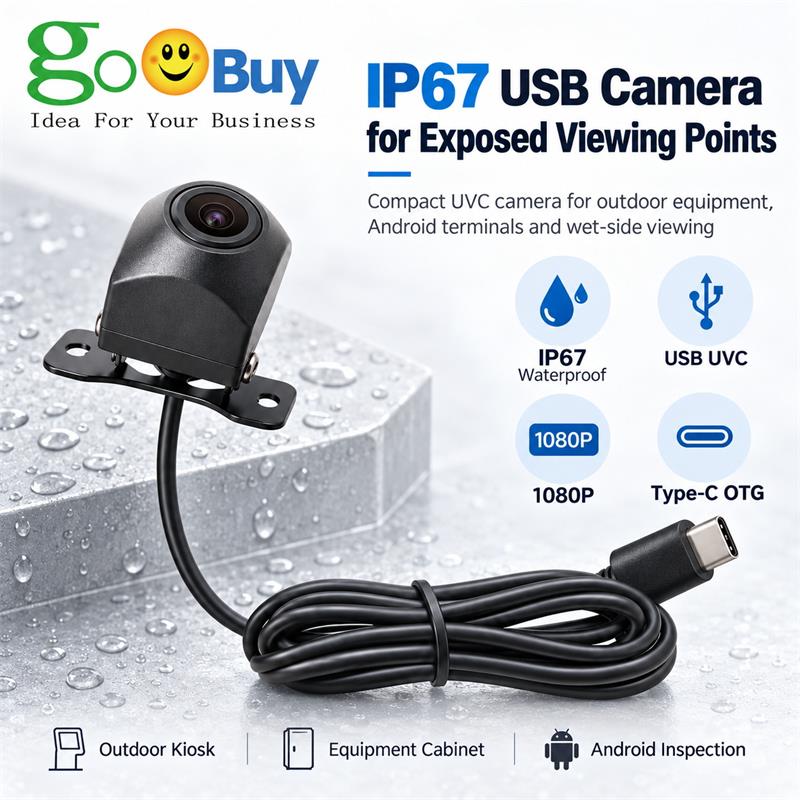

Goobuy UC-533 is a compact IP67 waterproof USB camera designed for applications where the camera needs to work in an exposed location while the Android, PC or other USB host stays protected inside the equipment. With 1080P video, UVC connectivity and a fixed 160° ultra-wide-angle lens, it is suitable for outdoor terminals, commercial equipment, machine enclosures and field inspection where a standard USB camera is difficult to install or protect.

IP67 Waterproof · 1080P · USB UVC · 160° Ultra-Wide View

Goobuy UC-533 IP67 Waterproof USB Camera

Compact 1080P UVC Camera with 160° Ultra-Wide View for Android Terminals and Equipment

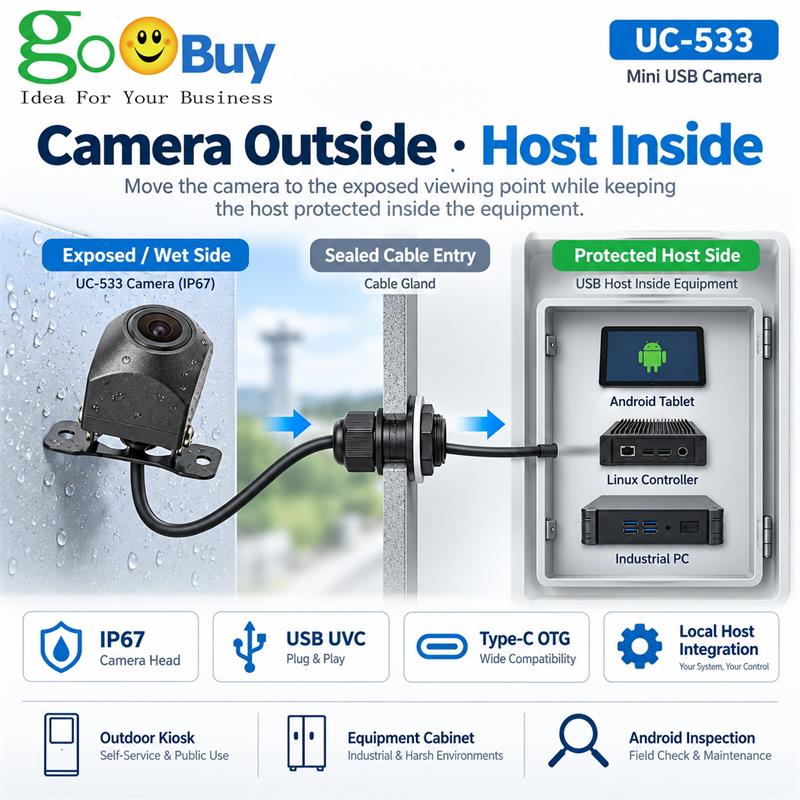

Camera Outside. Host Inside.

Many machines and commercial devices already have an Android terminal or computer inside the equipment. The problem is that the built-in camera is often in the wrong position—or cannot be exposed outside the enclosure.

UC-533 separates the camera viewpoint from the host.

The compact camera head can be installed at the required viewing position while the Android device, PC and USB connection remain protected inside the equipment.

Move the Camera Viewpoint Away from the Host

UC-533 → USB → Android / PC → Customer Application

No separate network camera system is required for applications that already have a compatible USB host.

What Real Problems Does Goobuy UC-533 USB camera Solve?
1. The Host Cannot Be Placed Where the Camera Needs to See
A tablet, PC or embedded terminal may need to remain inside the equipment while the actual viewing point is outside or in another position.
UC-533 moves only the camera to the required location.

2. A Bare USB Camera Is Too Exposed
An exposed PCB camera is not suitable where the camera may encounter rain, moisture or dust.
UC-533 uses a compact IP67 camera head for better protection at the camera position.

3. A Standard Webcam Is Too Large
Consumer webcams are designed around monitors and desktops, not compact equipment installation.
UC-533 provides a much smaller external camera head for integration into commercial and industrial equipment.

4. The Built-In Camera Does Not Show Enough
A built-in tablet or terminal camera may face the wrong direction or capture too narrow an area.
The fixed 160° ultra-wide-angle lens gives UC-533 a broad view from a compact mounting position.

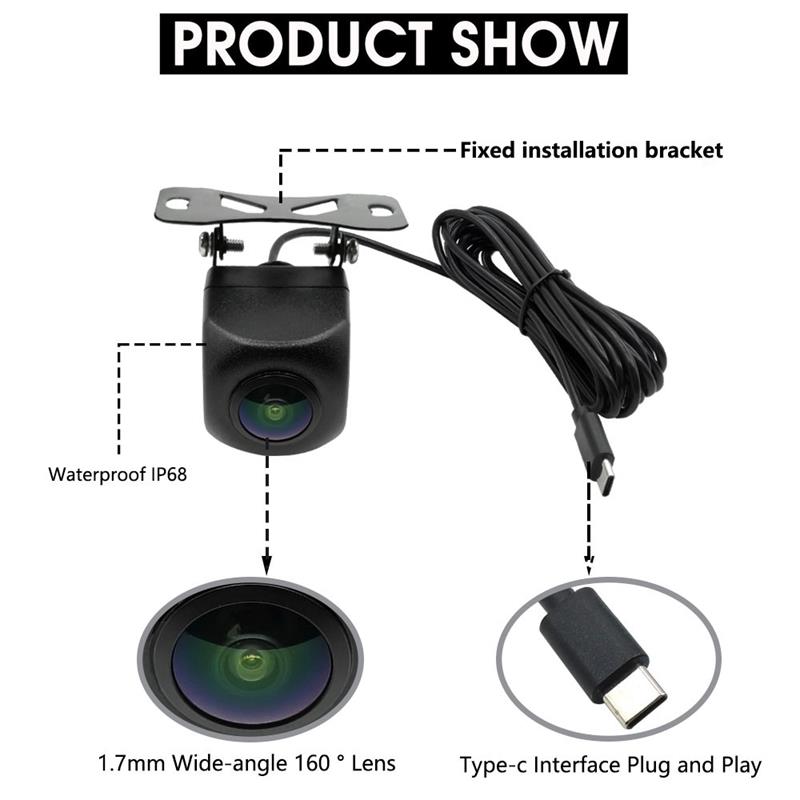

160° Ultra-Wide View
See More from a Small Camera Position
UC-533 uses a fixed 160° ultra-wide-angle lens.
The wide field of view is useful when the camera is installed close to the target or when a broader scene needs to be captured without moving the host device.
Typical examples include:
•    Equipment interiors
•    Kiosk surroundings
•    Work areas
•    Machine compartments
•    Inspection spaces
•    Areas close to the camera
160° is the standard UC-533 viewing configuration. It is not a variable or zoom lens.
For applications requiring a narrow or telephoto view, UC-533 is not the appropriate camera.

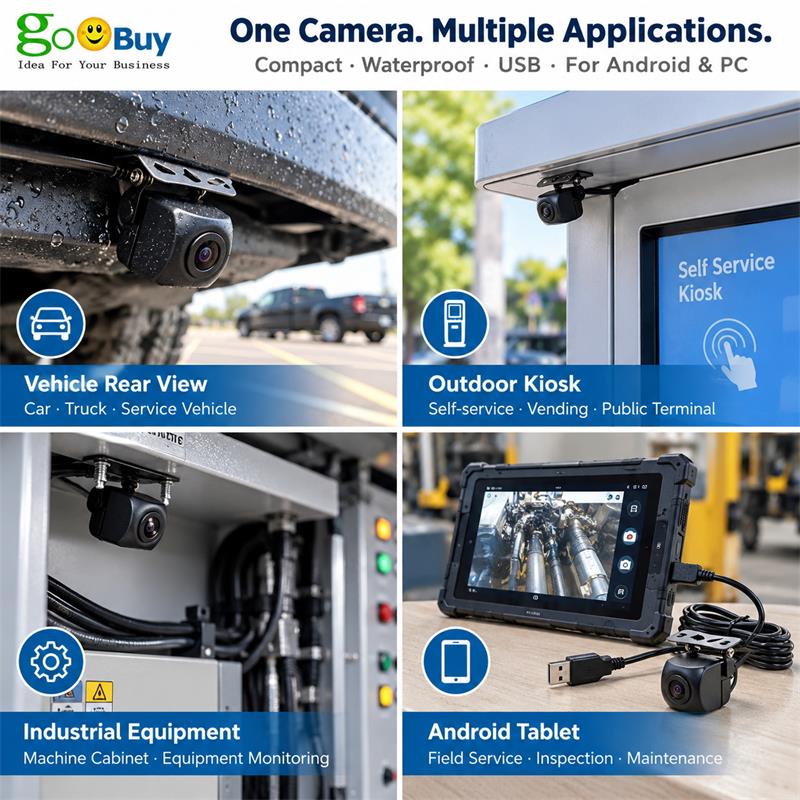

Where UC-533 IP67 USB camera work for/Fits
Outdoor Kiosks & Self-Service Equipment
UC-533 can provide an external camera viewpoint while the Android or PC host remains inside the kiosk.
Typical applications include self-service terminals, smart lockers, vending equipment and other outdoor commercial devices.

Android Tablets & Field Terminals
The external camera can move the viewpoint away from the tablet itself.
This is useful when the tablet needs to remain in the operator's hand, vehicle, holder or protected location while the camera observes another area.
The Android device must support USB OTG / USB Host, UVC cameras and a compatible UVC application.

Industrial Equipment & Machine Enclosures
UC-533 can add a compact external viewing point to equipment that already has a USB-capable host.
Typical uses include observing machine compartments, equipment mechanisms and areas that are difficult to view from the host position.

Maintenance & Field Inspection
Connect UC-533 to a compatible portable host when the camera needs to reach a different viewing position from the screen.
Its compact body and 160° view are useful for general equipment inspection, maintenance viewing and visual documentation.

Wet or Exposed Commercial Equipment
UC-533 is suitable where the camera head needs more protection from rain, moisture and dust than a conventional exposed USB camera module.
It is intended for IP67-level camera protection, not high-pressure IP69K washdown.

Goobuy UC-533 is a compact IP67 waterproof 1080P USB UVC camera with a fixed 160° ultra-wide-angle lens for external camera applications on Android terminals, kiosks, commercial equipment and machine enclosures

Key Features

Android & USB Host Compatibility

UC-533 is a standard external USB camera rather than a standalone recording system.

For Android use, the host should support:

USB Host / OTG · UVC External Camera · Sufficient USB Power · Compatible UVC App

Compatibility depends on the actual Android device and application.

Not every Android phone or tablet supports external UVC cameras.

For PC or embedded equipment, the host software must also support the camera's USB video input.

Important

UC-533 provides the camera video hardware.

Recording, streaming, networking, remote assistance and other software functions depend on the customer's host device and application.

IP67 Camera Protection
The UC-533 camera head is IP67 protected for applications involving rain, moisture and dust.
However, the complete USB system should not automatically be considered IP67.
The USB connector and host should normally remain in a protected location, and the equipment manufacturer is responsible for properly sealing the cable entry into its enclosure.
IP67 Does Not Mean IP69K
UC-533 is not intended for high-pressure washdown, steam cleaning or other environments requiring IP69K protection.


Best Fit / Not Designed For

This distinction is important:  Goobuy UC-533 is a compact waterproof USB camera—not a complete surveillance system, machine-vision system or heavy-equipment camera system.

Professional FAQ
1. Why would I use UC-533 instead of the camera built into my Android tablet?
The built-in camera stays wherever the tablet is positioned and usually faces a fixed direction.
UC-533 allows you to move the camera viewpoint away from the Android device and place it where the actual view is needed.
This is useful for equipment, kiosks and inspection applications where the host and camera need to be in different positions.
________________________________________
2. Will UC-533 work with my Android phone or tablet?
It depends on the exact device.
Your Android host must support USB OTG / USB Host and external UVC cameras, and you need an application capable of displaying UVC video.
Some Android devices or applications do not support external USB cameras.
We therefore recommend confirming compatibility with the actual device and app you plan to use.
________________________________________
3. Do I need a special driver for the UC-533?
UC-533 uses the USB UVC video interface.
A compatible UVC host normally recognizes the camera through its standard USB video support.
However, actual operation still depends on the host operating system, USB support and application.
________________________________________
4. Is the complete UC-533 cable and USB connector waterproof?
Do not assume that the complete USB connection is waterproof simply because the camera head is IP67.
The camera head is the protected part.
The USB connector should normally remain inside a protected enclosure or other dry location. The cable entry into the customer's equipment must also be properly sealed.
________________________________________
5. Can I leave the UC-533 camera outside in rain?
The IP67 camera head is intended to provide protection against rain, moisture and dust within its rated environmental conditions.
However, the complete installation—including cable entry and USB connection—must also be designed correctly.
UC-533 should not be treated as an IP69K washdown camera.
________________________________________
6. Is the 160° lens suitable for reading small text or distant objects?
Usually not.
The 160° lens is designed to capture a very wide scene, especially at relatively short distances.
A wider field of view means distant or small objects occupy fewer pixels in the image.
If your application requires detailed viewing of a small distant target, a narrow-angle camera would be more appropriate.
________________________________________
7. Can I change the UC-533 to another viewing angle?
The standard UC-533 described on this page uses a fixed 160° ultra-wide-angle configuration.
We do not position this product as a variable-lens or multi-lens platform.
If your application specifically requires a substantially narrower field of view, another Goobuy camera model may be more appropriate.
________________________________________
8. Can UC-533 record video by itself?
No.
UC-533 is a USB camera and does not function as a standalone recorder.
Recording is handled by the connected Android device, PC or other compatible host and its software.
________________________________________
9. Can I use UC-533 as an outdoor security camera?
UC-533 can provide USB video from an exposed camera location, but it is not a standalone outdoor surveillance camera.
It does not replace an IP/PoE security camera when the application requires long-distance networking, independent recording, remote network access or surveillance-specific functions.
________________________________________
10. Is UC-533 suitable for machine vision or automatic inspection?
UC-533 is primarily intended for general visual observation and external USB video.
Applications requiring precision measurement, high-speed imaging, hardware triggering, synchronized capture or automated machine-vision inspection should use a camera designed specifically for those requirements.
________________________________________
11. Can UC-533 connect directly to a monitor?
Not to a conventional HDMI or AHD monitor.
UC-533 outputs USB video and therefore requires a compatible USB host, such as an Android device, PC or embedded computer, to receive and display the video.
