1/2inch Sony STARVIS IMX385 UVC Camera Module 32*32mm – excellent Low Light for Industrial application

0.001 Lux Embedded Starlight Machine Vision Camera for Automated Nighttime Inspection





Product Overview

The UC-535 (IMX385 STARVIS) is a compact 32×32 mm industrial USB camera module engineered for low-light inspection, robotics/AMR, UAV payloads, and energy-site monitoring.
Leveraging Sony’s STARVIS sensor, the module delivers starlight-level sensitivity while maintaining clean, low-noise video. Optional metal housing improves thermal stability and EMI robustness for 24/7 operation.



Highlights

• Starlight 0.001 Lux — usable images in near darkness (test notes available)
• 1080p Industrial USB — up to 60 fps (MJPEG), 30 fps (YUY2) depending on host bandwidth
• 32×32 mm Module — metal enclosure optional; M12 lenses 2.8/6/8 mm
• UVC Plug-and-Play — Windows / Ubuntu / Jetson / Raspberry Pi
• HDR/WDR Ready — wide dynamic handling for mixed lighting

Unrivaled Night Vision for Great Lakes Industry: Sony IMX385 Ultra Low Lux USB Camera for Industrial
Gain critical insight in extreme low-light conditions with our 1/2" Sony IMX385 USB camera, housed in a durable metal case, and featuring ultra-fast F1.0 aperture lenses. Perfect for the demanding industrial environments of the Great Lakes region in united states.





Why Choose Our IMX385 Industrial HDR low light USB camera?

• Key Benefits :
  • Sony IMX385 Sensor: Leverages Sony's cutting-edge STARVIS technology for exceptional 0.001x Lux low-light sensitivity and vivid color reproduction in near darkness.
  • Robust Metal Casing: Engineered for maximum durability and heat dissipation in harsh industrial settings (optional purchase, with or without enclosure ok)
  • Ultra-Fast F1.0 Aperture Lenses: Choose from 2.8mm, 6mm, or 8mm to capture more light and achieve superior image clarity.
  • USB2.0/USB-C(Type-C), UVC compliant, Wide angle low light USB camera (equipped with 2.8mm F1.0 lens)
  • True Industrial-Grade Performance: Designed for continuous 24/7 operation in manufacturing, automotive, and logistics environments.

Versatile Integration: Seamlessly connect with existing industrial monitoring and machine vision systems.



Powering Critical Applications in the Great Lakes

• Enabling 24/7 Operations Across Your Industry
• Visuals: Icons or specific application images/photos if available.
• Automotive Manufacturing: Paint inspection in low-light booths, assembly line monitoring after hours, security for valuable assets.
• Heavy Machinery & Equipment Monitoring: Visual inspection of remote or dimly lit components, predictive maintenance.
• Logistics & Warehousing: Automated sorting, inventory tracking, and security in low-light storage areas.
• Quality Control: Detecting subtle defects in challenging lighting conditions.

      Process Monitoring: Continuous oversight of critical operations in dimly lit production areas.



what difficulty or troubling problems it can solve in industrial application of USA Great Lakes Area?

Problems Solved:

1. 24/7 Monitoring of Critical Industrial Processes & Assets:
   • Problem: Monitoring machinery, production lines, control rooms, or remote industrial sites around the clock, even during nighttime, power outages, or in dimly lit zones where conventional cameras fail to provide usable images.
   • Solution: The IMX385's "Starlight" vision ensures clear, often color, video feeds in near-total darkness, allowing for continuous oversight of operations, security, or safety protocols without relying on additional, expensive lighting. This is vital for safety compliance and anomaly detection.
   •
2. Quality Control in Variable or Low-Light Manufacturing:
   • Problem: Conducting visual inspections for defects, alignment, or missing components on a production line where lighting conditions may be inconsistent, low (e.g., during specific curing processes or between shifts), or where external lighting is undesirable.
   • Solution: The camera maintains high image quality regardless of ambient light, ensuring consistent and reliable automated or manual quality checks throughout all operational hours, reducing errors and waste.
   •
3. Safety and Security in Dimly Lit or Unlit Zones:
   • Problem: Identifying unauthorized access, monitoring hazardous areas, or ensuring worker safety in industrial sites (e.g., loading docks, construction sites, large warehouses, mining operations, remote utility stations) that have minimal or no lighting at night.
   • Solution: Provides high-resolution night vision for detection, identification, and evidence collection, significantly enhancing site security and safety compliance without needing to invest heavily in permanent lighting infrastructure.
   •
4. Robotics & Automated Systems Operating in Diverse Environments:
   • Problem: Equipping robots or automated guided vehicles (AGVs) with vision for navigation, object detection, or manipulation in areas with fluctuating light, or where they operate during off-hours with minimal illumination.
   • Solution: The IMX385 ensures consistent visual input for AI/ML algorithms, enabling reliable operation irrespective of lighting. The 32x32mm form factor fits well into robot designs.
   •
5. Remote Site Surveillance (Utilities, Energy, Agriculture):
   • Problem: Securing remote and often unlit assets like cell towers, power substations, irrigation pumps, or agricultural fields from theft, vandalism, or trespassing, especially at night.
   • Solution: Provides effective nighttime surveillance with minimal infrastructure, relying on the camera's inherent low-light sensitivity and robust (assuming it's paired with a suitable case for outdoor deployment) performance for continuous operation.

Special Demands Met:

• Exceptional Low-Light Performance: Unrivaled clarity in near-darkness, minimizing or eliminating the need for costly external illumination.
• Versatile Field of View: Optional lenses allow precise tailoring of the viewing angle for different industrial tasks, from wide-area monitoring to focused inspection points.
• Ease of Integration: USB connectivity simplifies setup with existing industrial PCs or embedded controllers, reducing integration time and cost.
• Cost-Effectiveness for Night Vision: Reduces or eliminates the need for expensive additional IR illuminators, simplifying installation and reducing power consumption.
• Reliable Data for Analytics: High-quality, low-noise images are ideal input for industrial video analytics, machine learning, and AI-driven inspection systems.



Key Features Section
Sony STARVIS IMX385 1/2" CMOS sensor with enhanced low-light performance
Up to 60fps @ Full HD (1920x1080)
USB 2.0/3.0 Plug-and-Play interface
IR-sensitive / IR-cut filter optional
Low noise, high dynamic range
Support Windows, Linux, Jetson, Raspberry Pi

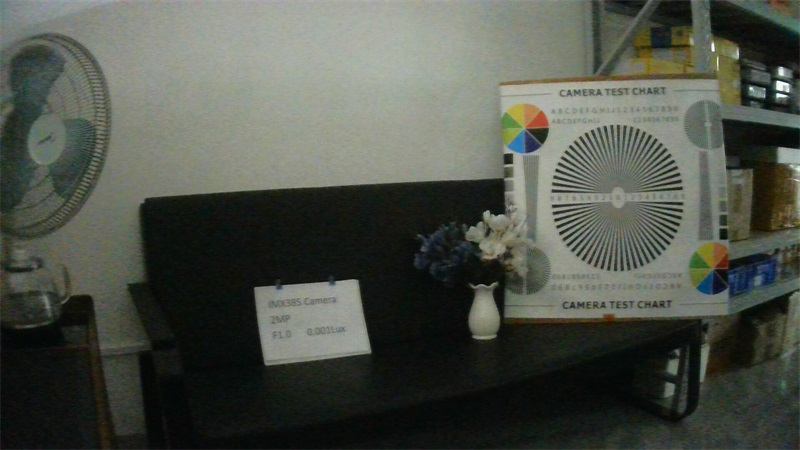

video screenshoot that imx385 starvis usb camera made video in the night, October 2024 ( following image had been compressed much)



NDAA Compliance Statement: Explicitly state compliance here ("This product is manufactured in compliance with the National Defense Authorization Act (NDAA) Section 889 and is free from restricted components."



FAQ

Q1. Can it truly capture at 0.001 Lux?
A: Yes—under starlight conditions. We publish exposure/gain test notes and sample frames so engineers can reproduce results.



Q2. 60 fps at 1080p—under what formats?
A: MJPEG typically enables up to 60 fps on capable hosts. YUY2 commonly runs up to 30 fps over USB 2.0.



Q3. Does it support HDR/WDR?
A: Yes—pipeline supports wide-dynamic processing. Provide your target dB range and we’ll match the configuration.



Q4. Is there a metal housing?
A: Optional rugged enclosure with heat-spreader and mounting ears for 24/7 industrial use.



Call to Action

Request a Sample or Technical Consultation
Tell us your scenario (robot/UAV/energy). We’ll propose lens/FPS/format settings and thermal/mechanical options.
Email: office@okgoobuy.com



Ready to Elevate Your Industrial Vision in Low Light?

"Contact Our Great Lakes Sales Team" | "Schedule a Technical Consultation"
