1080p Starlight USB Camera Module | IMX307 with F1.4 starlight Lens



Product Overview

The Starvis IMX307 Starlight USB Camera Module is engineered for demanding industrial vision tasks that require exceptional low-light performance and efficient H.264 hardware compression. With a 114° wide field of view and f/1.4 aperture lens, this module captures clear images in near-darkness, making it a preferred choice for unmanned aerial vehicles (UAVs), autonomous mobile robots (AMRs/AGVs), and energy facility monitoring.

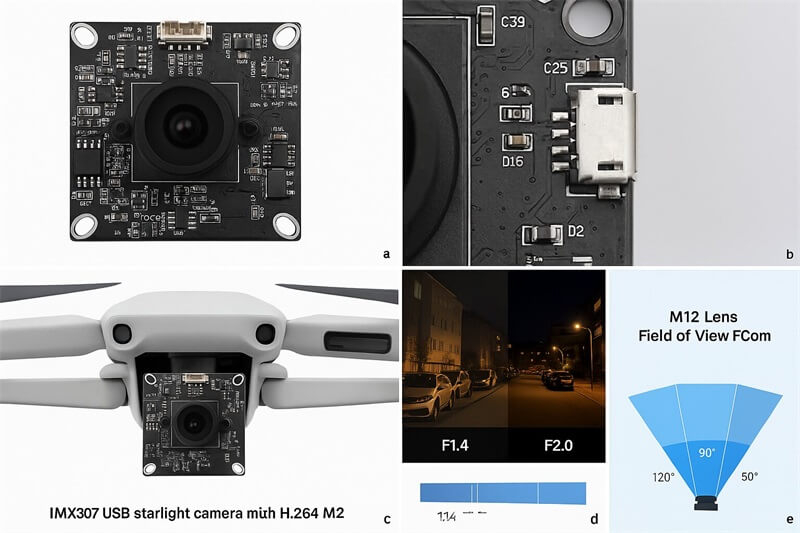

Housed on a 38×38 mm standard PCB with M12 lens mount, the module ensures easy integration into embedded vision systems. UVC compliance guarantees plug-and-play compatibility across Windows, Linux, and popular edge AI platforms.



At the core of this module is the Sony STARVIS IMX307, a 1/2.8-inch CMOS sensor that has become an industry workhorse for 1080p starlight vision. With its 2.9µm pixel size, the IMX307 is renowned for its excellent Signal-to-Noise Ratio (SNR) in low-light conditions. Its primary advantage in today's market is its proven reliability and predictable performance, offering a stable and cost-effective foundation for developing professional imaging products without the risks associated with unproven, newer sensors.

Superior Low-Light Vision, Engineered for Professional Integration.

This is more than just a camera module; it's a fully-engineered imaging solution. By pairing Sony's proven STARVIS IMX307 sensor with an ultra-fast F1.4 low-distortion lens and onboard H.264 encoding, we've created the industry-standard choice for applications demanding reliability, optical flexibility, and exceptional performance in all lighting conditions.





The Professional's Choice: A Synergy of Performance and Reliability

The IMX307 has become a bestselling sensor because of its proven reliability. We've taken that solid foundation and engineered a module around it that solves key challenges for system integrators and OEM clients.

1. Starlight Vision, Amplified by an F1.4 Aperture

Our module's low-light performance is a class above standard offerings.

• The Foundation: We start with the genuine Sony STARVIS IMX307 sensor, the industry benchmark for clear, low-noise color video in dark environments.
• The Amplifier: We pair it with a high-quality, ultra-fast F1.4 aperture lens. This allows the module to capture over double the amount of light compared to standard F2.0 or F2.2 lenses, resulting in a dramatically brighter, cleaner, and more detailed image when light is scarce.



2. High-Efficiency Streaming with Onboard H.264

This module is built for the demands of networked and embedded systems. In addition to standard MJPEG, it features onboard H.264 hardware encoding, a critical advantage for professional applications.

• Your Benefit: H.264 provides the same visual quality as MJPEG at less than half the bandwidth. This ensures smooth video streaming over congested networks (including Wi-Fi), reduces the processing load on your host CPU, and creates smaller file sizes for efficient storage.



3. Unmatched Optical Flexibility & Precision

A single, fixed lens limits your product's potential. Our module is designed for adaptability.

• Replaceable M12 Lens Mount: You are not locked into one field of view. The industry-standard M12 mount gives you the freedom to choose from thousands of lenses—from wide-angle to telephoto—to perfectly match the optical requirements of your application.
• Low-Distortion Optics: The standard F1.4 lens is engineered for low distortion, ensuring geometric accuracy. This is critical for computer vision, metrology, and wide-angle surveillance where straight lines must remain straight.



4. Easy Integration: UVC Standard and Industrial Form Factor

• Software (UVC Compliant): The module is fully UVC (USB Video Class) compliant, offering true plug-and-play operation on Windows, Linux, and other compatible operating systems. This eliminates the need for proprietary drivers and dramatically accelerates your development and time-to-market.
• Hardware (38x38mm Standard Size): The 38x38mm board dimension is a widely adopted industry standard. This makes it a simple drop-in replacement for less capable cameras in existing systems and an easy component to integrate into new mechanical designs.





Integration & Compatibility

• Fully UVC-compliant – no driver installation required

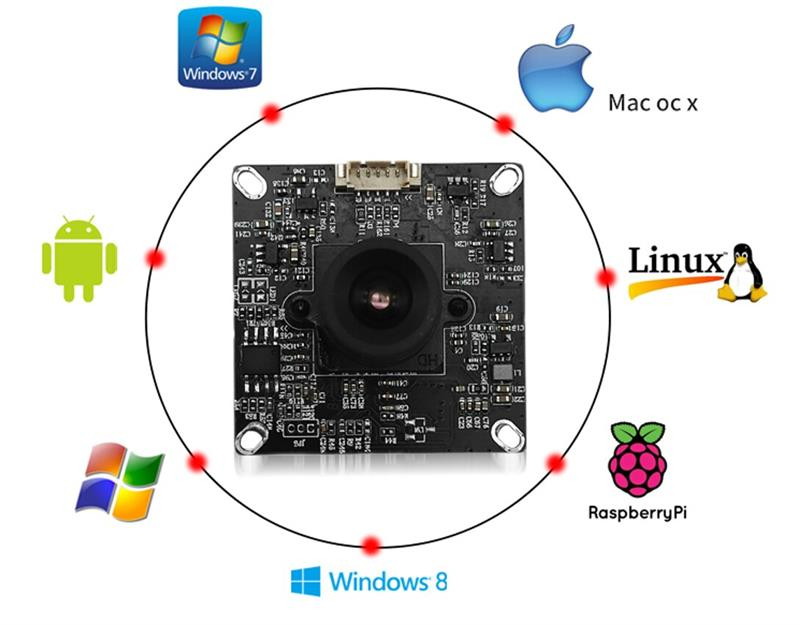

• Works with Windows, Linux, Android, and embedded AI platforms (Jetson Orin, Xavier, Raspberry Pi 5)
• Supported by OpenCV, GStreamer, and standard V4L2 pipelines









Typical Application Scenarios for System Integrators

1, Industrial Process & Machine Monitoring: Integrate this module into manufacturing lines to monitor processes. The H.264 compression allows for efficient video streaming to a central control room over the factory network, while the replaceable M12 lens allows you to install a telephoto lens to get a close-up view of a critical component from a safe distance.

2, Access Control, Kiosks & Biometrics: The 38x38mm standard size makes it a perfect drop-in replacement for upgrading existing kiosk or access control systems. The low-distortion lens ensures high accuracy for facial recognition or QR code scanning, and the fast F1.4 lens provides reliable performance in poorly lit lobbies or entrances.

3, Professional Video Conferencing & Collaboration Hubs: The superior low-light performance from the STARVIS sensor and F1.4 lens ensures a clear, professional image even in non-ideal home or office lighting. The UVC plug-and-play standard guarantees compatibility with all major conferencing software (Zoom, Teams, etc.) without driver issues.

4, Agricultural Technology (AgriTech) & Lab Equipment: Monitor plant growth, lab experiments, or fluid levels with high clarity. The ability to fit a macro M12 lens allows for detailed, close-up scientific imaging, while the module's proven reliability ensures stable, long-term operation.





Common RFQ Questions from System Integrators

1. What is the process for customizing a lens or ISP firmware for a project?

• Our process is straightforward. It begins with a technical consultation with our engineers to define your exact requirements. For custom lenses, we then source and qualify options for your approval. For ISP tuning, we typically require sample footage from your target environment to create an optimized firmware profile. The lead time for first custom samples is typically 4-6 weeks.

2. Given the IMX307 is a mature sensor, what is the long-term supply availability?

• The IMX307's maturity is one of its greatest strengths. It has a highly stable, high-volume supply chain. We guarantee long-term availability for all OEM clients and can provide an End-of-Life (EOL) notification and Last Time Buy (LTB) schedule of at least 12-18 months, ensuring your product lifecycle is secure.

3. Can you provide raw, uncompressed video samples for our evaluation?

• Absolutely. We can provide short video clips in the uncompressed YUY2 format to allow your engineering team to accurately assess the sensor's raw image quality and noise performance before our ISP processing and H.264 compression are applied.

4. What are your pricing tiers for OEM volumes (e.g., 100, 500, 1000+ units)?

• We offer tiered volume pricing. While specific prices are provided in a formal quote, you can expect significant price-per-unit reductions at the 100, 500, and 1000+ unit levels. Please contact us with your projected volume for a detailed quotation.

5. What level of engineering support is included during our integration phase?

• All our clients receive comprehensive integration support. This includes providing full documentation, 3D models for mechanical design, and direct email/call access to our application engineers to help you troubleshoot challenges, optimize settings, and ensure a smooth and successful integration.

The Smart Choice for Proven Performance

In a market of unproven components, choose the reliable, flexible, and high-performance solution that system integrators trust. Our IMX307 module is engineered to deliver consistent results and accelerate your time-to-market. Contact us to discuss your project needs.reach our engineering team directly for a technical discussion at office@okgoobuy.com



Customer Success Story

A European energy company integrated our IMX307 USB module into a refinery monitoring system, reducing camera downtime by 40% under low-illumination conditions. By leveraging H.264 compression, they achieved stable 24/7 remote monitoring over limited bandwidth networks.
